Hot sell high brightness 600cd/m2 home security 480*480 RGB/SPI interface 3.95 inch LCD module

The KLD40104HWIA is a 3.95inch 480x480 square IPS mode LCD module.
Features:

- Interface:

SPI+RGB
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

6*2 LED (6*LED in series and 2 groups in parallel) IBL=40mA, VBL=19.8V;
Can be designed as requirements.

- LCM outline dimension:

75.76(H)*77.88(V)*2.15(T)(mm)
Can be customized as requirements.

- Touch Panel
Capcitive touch panel is optioanal, touch panel can be customized as requirements.

We also have several other MP products with similar configurations,

butwith different ◊capacitive touch screen ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness◊thicknessetc.

Please contact us to provide datasheet for your checking.

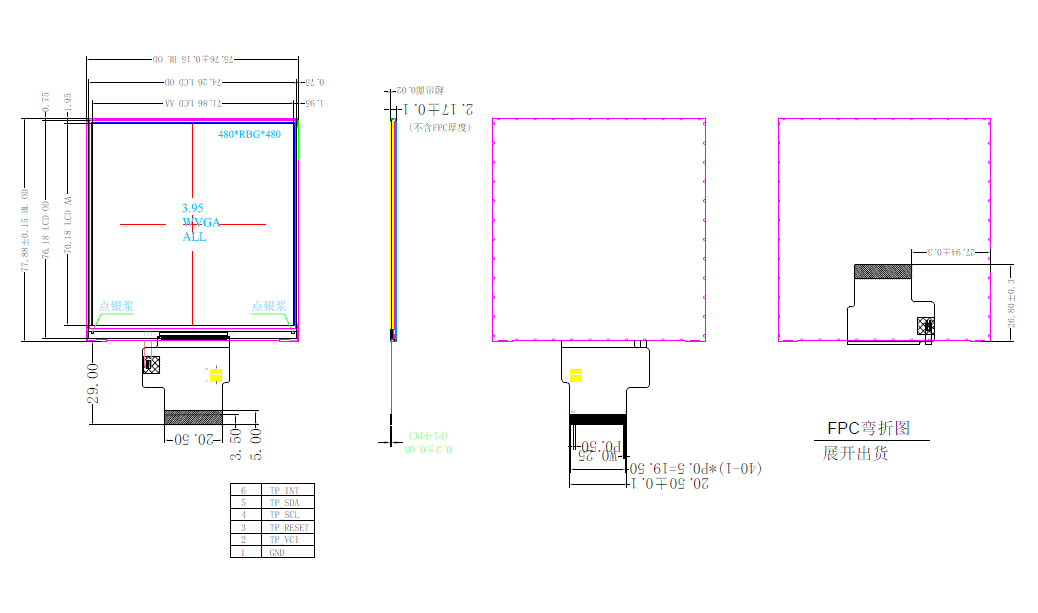

Drawing(LCM):

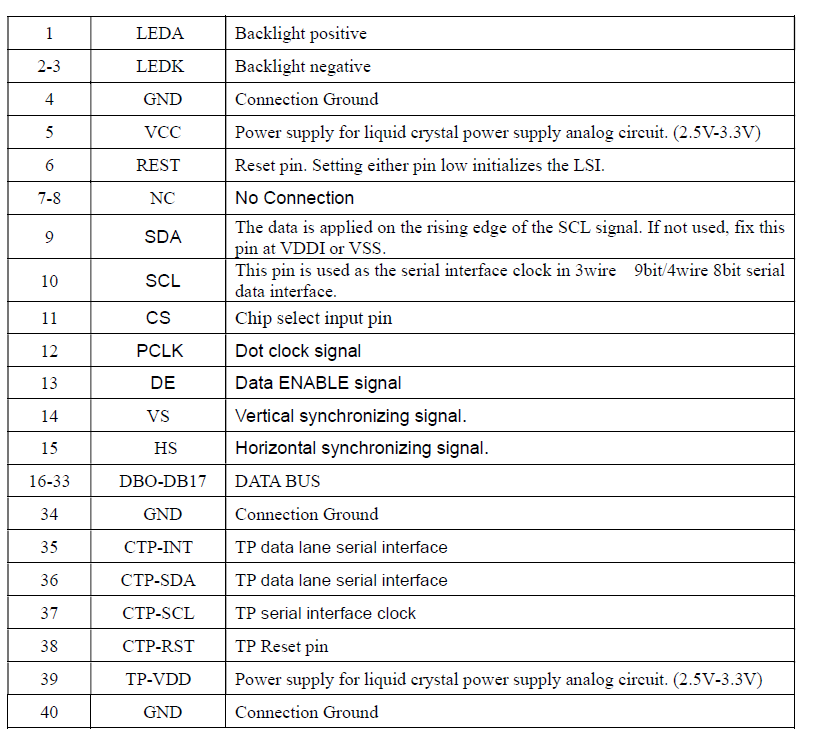

LCM Interface connection:

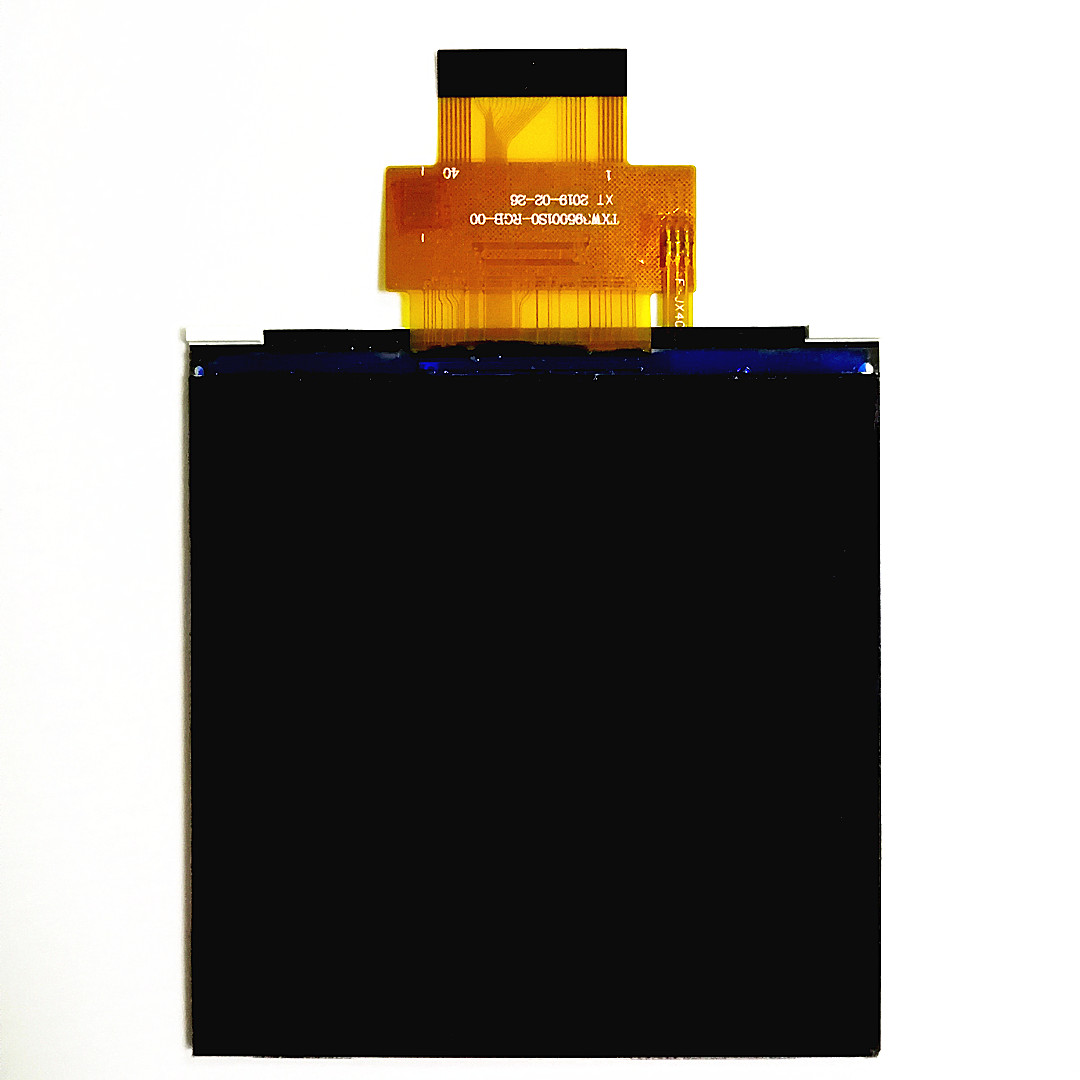

The product is LCD display only, refer to below picture.

We can also supply "LCD display + CTP","LCD display + HDMI", and"LCD display + CTP + HDMI", refer to below picture. Please contact us for more details.

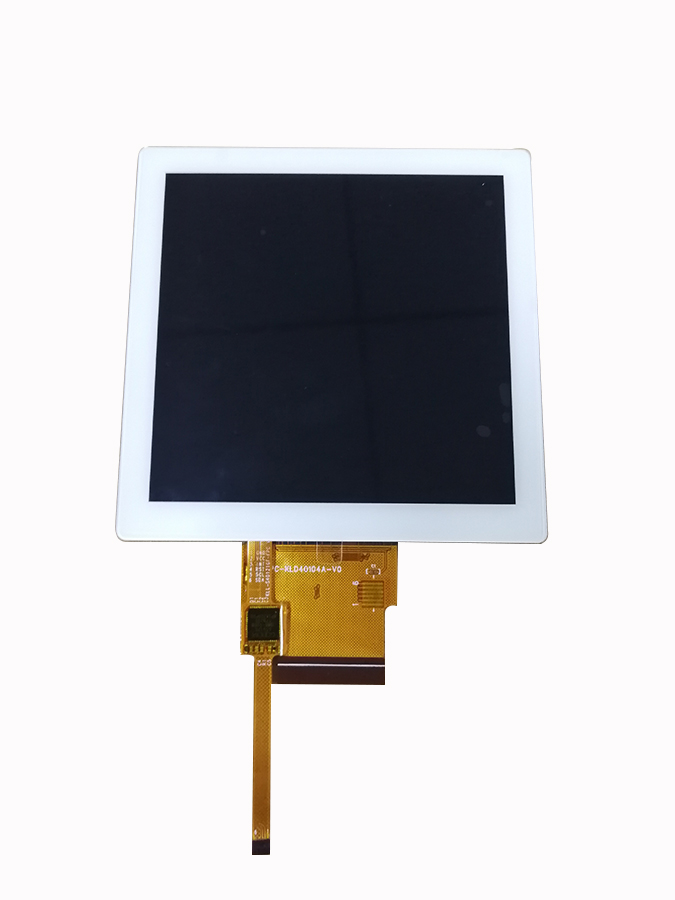

LCD display + CTP:

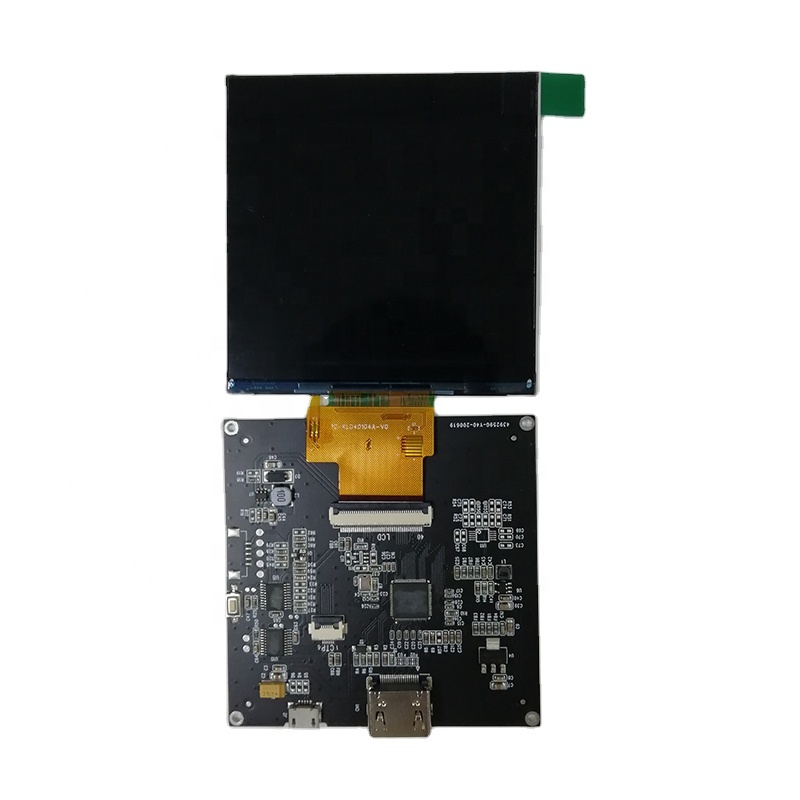

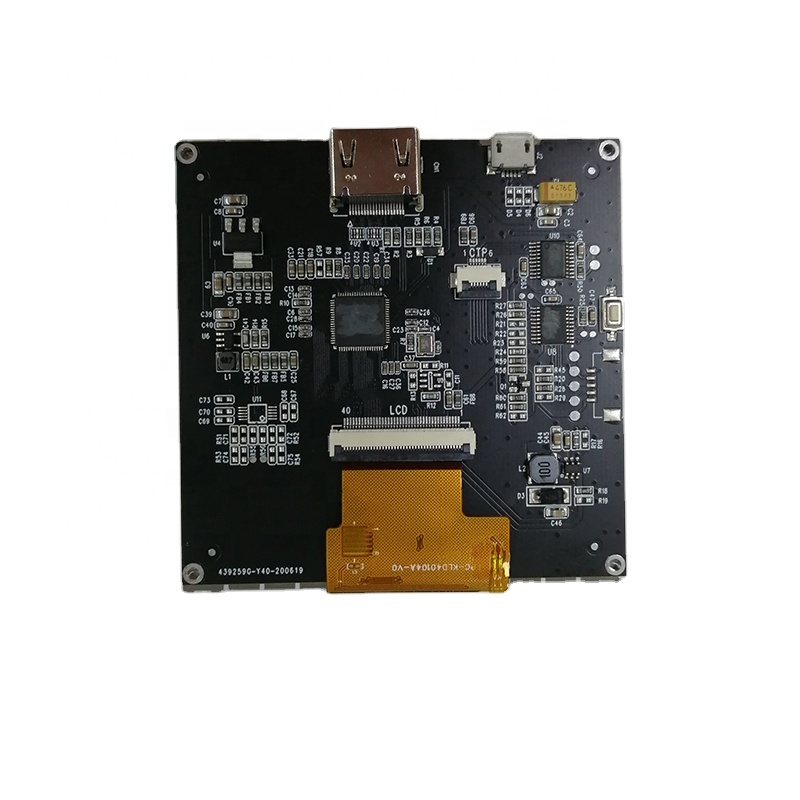

LCD display + HDMI:
