Hot sell industrial 1280*800 LVDS interface 10.1 inch IPS lcd module
KLD101200
minimum order
1 piece
Country of Origin
Shenzhen/Hongkong
Quantity:
$49.40 - $68.00 / piece
- Display Size:10.1inch
- Place of Origin:Guangdong, China
- Model Number:KLD101200
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:1280*RGB*800
- LCD type:IPS
- Active Area:216.96*135.60
- Outline dimension:228.6*148.8*2.6
- View direction:ALL
- Brightness:400cd/m2
- Interface:LVDS
- Driver IC:HIMAX
- Storage Temp.:(-30℃,80℃)
CTP 1280*800 LVDS interface lcd display 10.1inch WXGA lcd screen IPS for industrial
Product Description
| Resolution | 1280*RGB*800 |
| LCD type | IPS |
| Active Area | 216.96*135.60 |
| Outline dimension | 228.6*148.8*2.6 |
| View direction | ALL |
| Brightness | 400cd/m2 |
| Interface | LVDS |
| Driver IC | 'HIMAX |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The KLD101200 is a 10.1inch 1280x800 landscape IPS mode LCD module.
Features:
- Interface: LVDS
- BLU: 10*4 LED (10*LED in series and 4 groups in parallel) IBL=80mA, VBL=27V;
Can be designed as requirements.
- LCM outline dimension: 228.6(H)*148.8(V)*2.6(T)(mm)
Can be customized as requirements.
- Touch Panel
Capacitive touch panel was included.
Touch panel can be customized as requirements
Product Display

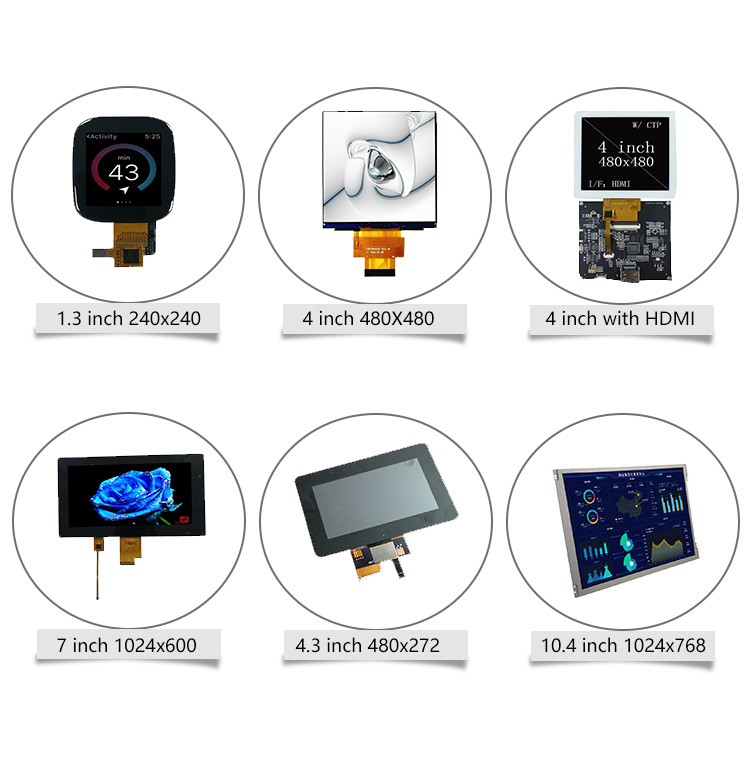

Related Products
| Size | Resolution | Interface |
| 2.0"IPS | 480*360 | RGB |
| 2.3" | 320*240 | MCU/SPI |
| 2.4" | 240*320 | MCU |
| 2.4"IPS | 240*320 | SPI+RGB/MCU |
| 2.8" | 240*320 | MCU |
| 2.8"IPS | 240*320 | MCU |
| 3.2" | 240*320 | MCU/SPI |
| 3.5" | 320*480 | MIPI |
| 3.5"IPS | 320*480 | MCU/SPI |
| 3.5"IPS | 480*800 | SPI+RGB |
| 4"IPS | 480*800 | MIPI |
| 4.3"IPS | 480*272 | RGB |
| 4.5"IPS | 480*854 | MIPI |
| 5"IPS | 720*1280 | MIPI |
| 5"IPS | 800*480 | RGB |
| 5"IPS | 480*854 | RGB |
| 5.5"IPS | 1080*1920 | MIPI |
| 7" | 800X480 | RGB |
| 7"IPS | 1024*600 | LVDS/MIPI |
| 1.3"IPS | 240*240 | SPI/MCU |
| 1.54"IPS | 240*240 | SPI/MCU |
| 3.1"IPS | 720*720 | MIPI |
| 4"IPS | 480*480 | SPI+RGB/HDMI |
| 4"IPS | 720*720 | MIPI |
| 26.5"IPS | 1920*1920 | LVDS |
| Industrial LCD series |
