OEM ODM 3.2 inch qvga 240x320 tft lcd panel screen diy display module for industrial
GSTH32B20-00Z
minimum order
1 piece
Country of Origin
Shenzhen/Hongkong
Quantity:
$4.50 - $7.50 / piece
- Type:TFT LCD
- Display Size:3.2 inch
- Supplier Type:Original manufacturer
- Place of Origin:Guangdong, China
- Brand Name:GST
- Product name:LCD Dispaly Screen
- Resolution:240*RGB*320
- LCD type:TN
- Active Area:48.60(V)*64.80(H)
- Outline dimension:53.60(V)*76.00(H)*2.46(T)
- View direction:12 O'clock
- Brightness:350cd/m2
- Interface:MCU
- Driver IC:ST7789V
- Storage Temp.:(-30℃,80℃)
240*320 MCU interface LCD display 3.2 inch QVGA LCD screen for Medical
Product Description
| Resolution | 240*RGB*320 |
| LCD type | TN |
| Active Area | 48.60(V)*64.80(H) |
| Outline dimension | 53.60(V)*76.00(H)*2.46(T) |
| View direction | 12 O'clock |
| Brightness | 350cd/m2 |
| Interface | MCU |
| Driver IC | ST7789V |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The GSTH32B20-00Z is a 3.2 inch 240*320 portrait TN mode LCD module.
Features:
- Interface:
MCU
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)
- BLU:
6 LED in parallel IBL=90mA
Can be customized as requirements.
- LCM outline dimension:
53.60(H)*76.00V)*2.46(T)(mm)
Can be designed as requirements.
We also have several other MP products with similar configurations,
butwith different ◊interface ◊pin map ◊FPC shape ◊outline dimension ◊brightnessetc.
Please contact us to provide datasheet for your checking.

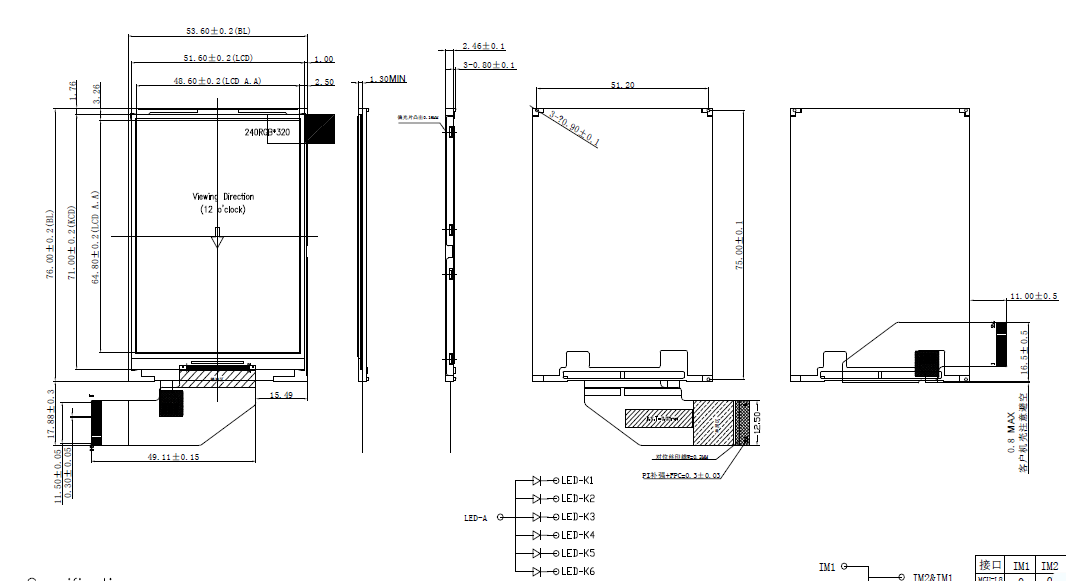

Drawing:

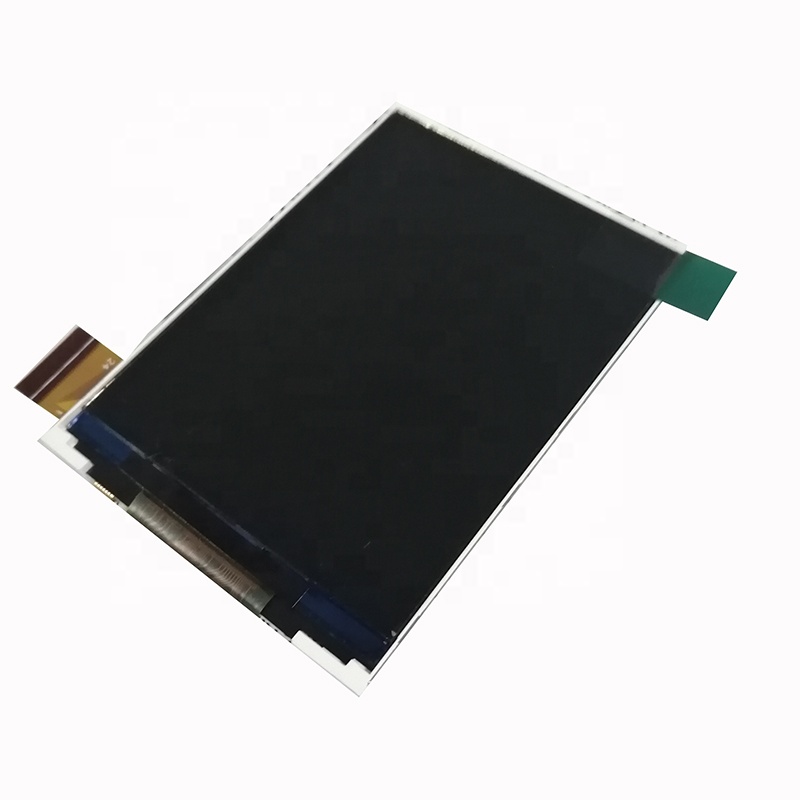

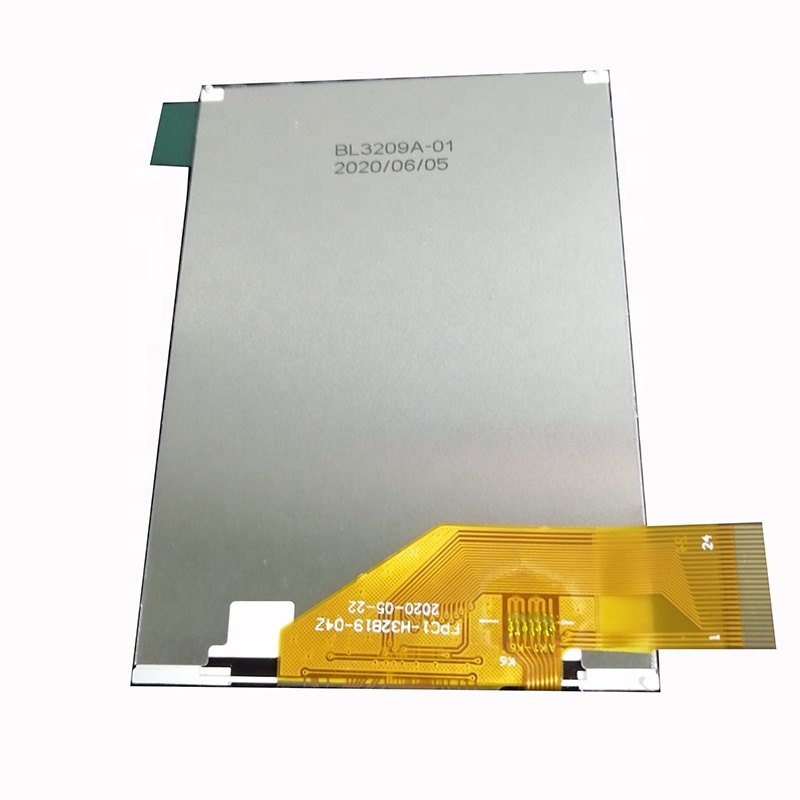

Product Display
Customize
Related Products
| Size | Resolution | Interface |
| 2.0"IPS | 480*360 | RGB |
| 2.3" | 320*240 | MCU/SPI |
| 2.4" | 240*320 | MCU |
| 2.4"IPS | 240*320 | SPI+RGB/MCU |
| 2.8" | 240*320 | MCU |
| 2.8"IPS | 240*320 | MCU |
| 3.2" | 240*320 | MCU/SPI |
| 3.5" | 320*480 | MIPI |
| 3.5"IPS | 320*480 | MCU/SPI |
| 3.5"IPS | 480*800 | SPI+RGB |
| 4"IPS | 480*800 | MIPI |
| 4.3"IPS | 480*272 | RGB |
| 4.5"IPS | 480*854 | MIPI |
| 5"IPS | 720*1280 | MIPI |
| 5"IPS | 800*480 | RGB |
| 5"IPS | 480*854 | RGB |
| 5.5"IPS | 1080*1920 | MIPI |
| 7" | 800X480 | RGB |
| 7"IPS | 1024*600 | LVDS/MIPI |
| 1.3"IPS | 240*240 | SPI/MCU |
| 1.54"IPS | 240*240 | SPI/MCU |
| 3.1"IPS | 720*720 | MIPI |
| 4"IPS | 480*480 | SPI+RGB/HDMI |
| 4"IPS | 720*720 | MIPI |
| 26.5"IPS | 1920*1920 | LVDS |
| Industrial LCD series |
