CTP 800*600 LVDS interface TFT lcd display 12.1 inch SVGA lcd screen module for industrial
KLD M121GNS3
minimum order
1 piece
Quantity:
$53.00 - $58.00 / piece
- Display Size:12.1 inch
- Place of Origin:Guangdong, China
- Model Number:KLD M121GNS3
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:800*RGB*600
- LCD type:TN
- Active Area:246.00*184.50
- Outline dimension:276.00*209.00*9.10
- View direction:6 O'clock
- Brightness:400cd/m2
- Interface:LVDS
- Storage Temp.:(-30℃,85℃)
- Pin number:20 Pin
CTP 800*600 LVDS interface lcd display 12.1 inch SVGA lcd screen for industrial
Product Description
| Resolution | 800*RGB*600 |
| LCD type | TN |
| Active Area | 246.00*184.50 |
| Outline dimension | 276.00*209.00*9.10 |
| View direction | 6 O'clock |
| Brightness | 400cd/m2 |
| Interface | LVDS |
| Storage Temp | (-30℃,85℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The KLD M121GNS3 is a 12.1 inch 800*600 landscape TN mode LCD module.
Features:
- Interface: LVDS
- Color depth: 262K, 6-bit
- BLU: VBL=12V
- LED life time: over 50,000Hrs
- Operating Temperature: (-20degree, 70degree)
- LCM outline dimension: 276.0(H)*209.0(V)*9.1(T)(mm)
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

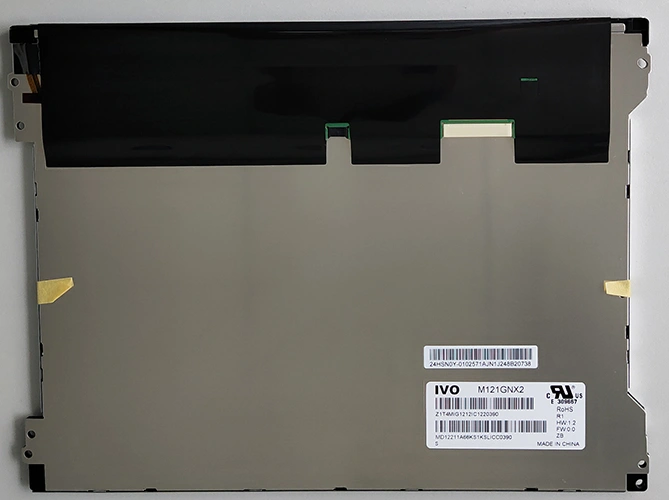

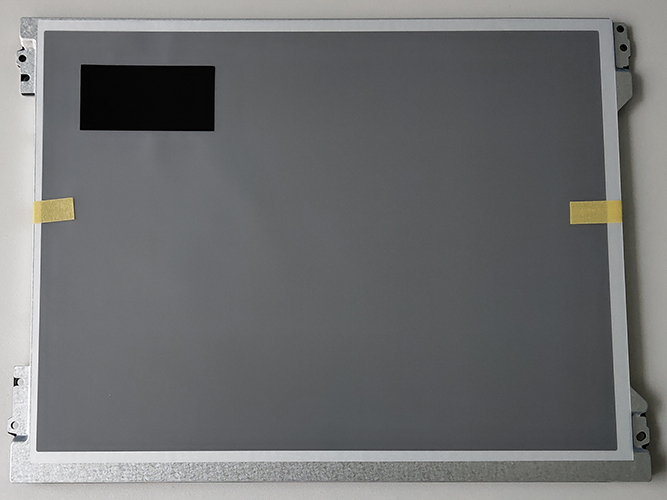

Product Display
Related Products-OI
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | Brightness (cd/m2) | View direction | Storage Temprature |
| 7 | KLD07100 | 800*480 | 164.90*100.00*5.70 | RGB | 1200 | 12 O'Clock | (-30,80) |
| 7 | KLD70111 | 1280*800 | 161.00*107.00*2.50 | LVDS | 300 | ALL | (-30,80) |
| 8.4 | KLDM084GNS1 | 800*600 | 203.00*142.50*6.20 | LVDS | 350 | 12 O'Clock | (-30,80) |
| 10.1 | KLD101200 | 1280*800 | 228.60*148.80*2.60 | LVDS | 400 | ALL | (-30,80) |
| 10.4 | KLD104GNX1 | 1024*768 | 236.00*176.90*5.70 | LVDS | 350 | 6 O'Clock | (-30,80) |
| 12.1 | KLD M121GNS3 | 800*600 | 279.00*209.00*9.10 | LVDS | 400 | 6 O'Clock | (-30,85) |
| 12.1 | KLD M121GNX2 | 1024*768 | 279.00*209.00*9.00 | LVDS | 350 | 6 O'Clock | (-30,80) |
| 26.5 | KLDLM265SQ1 | 1920*1920 | 491.80*491.80*13.50 | LVDS | 300 | ALL | (-20,60) |
| Standard LCD series | |||||||
| Suqare LCD series | |||||||

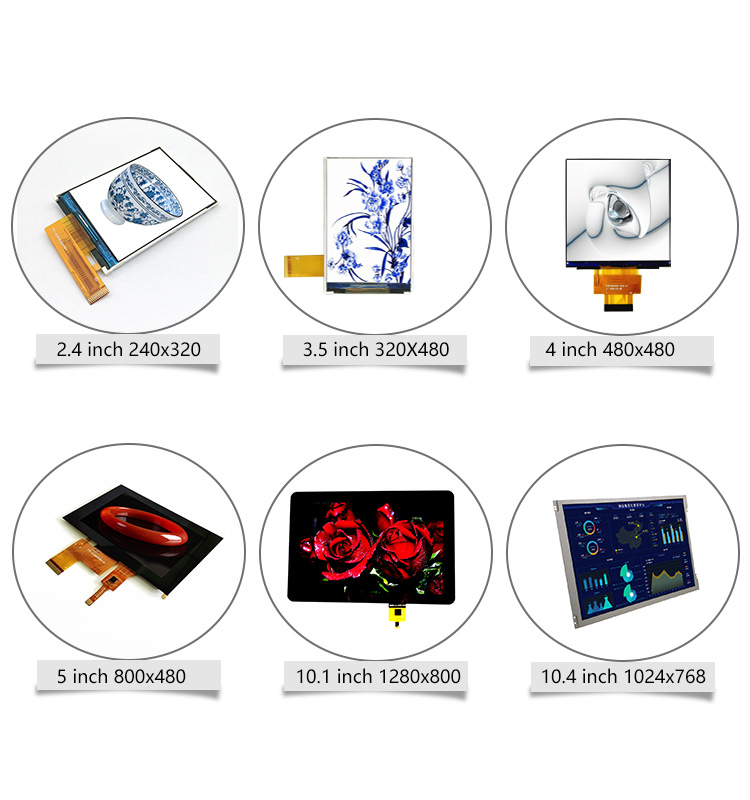

Main products
