Hot sale 1.3 inch OLED N 0.42 0.49 0.66 0.69 0.87 0.91 0.96 1.54 1.12 1.46 white blue yellow 96x96 128x64 display screen module
GST6824KSWXG22
minimum order
1 piece
Quantity:
$3.60 - $5.00 / piece
- Type:PM OLED
- Display Size:1.3 inch
- Place of Origin:Guangdong, China
- Model Number:GST6824KSWXG22
- Brand Name:GST
- Display mode:Passive Matrix
- Dot Matrix:128x64
- Viewing Angle:160 Degree
- Active Area:29.42(H)*14.70(V)
- Outline dimension:34.50(H)*23.00(V)*1.45(T)
- Interface:SPI
- Driver IC:CH1116
- Storage Temp.:(-40℃,85℃)
1.3 inch PM OLED 128x64 white blue color
Product Description
| Dot Matrix | 128*64 |
| Display Mode | Passive Matrix |
| Active Area | 29.42(H)*14.70(V) |
| Outline dimension | 34.50(H)*23.00(V)*1.45(T) |
| Viewing anlge | 160 degree |
| Interface | SPI |
| Driver IC | CH1116 |
| Storage Temp | (-40℃,85℃) |
The GST6824KSWXG22 is a 1.3 inch 128x64 PM OLED module.
Features:
- Interface:
SPI 4 wire
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
-Color: White or Blue
We also have several other MP products with similar configurations,
butwith different ◊interface◊pin map ◊FPC shape etc.
Please contact us to provide datasheet for further checking.
Drawing:
Interface connection:

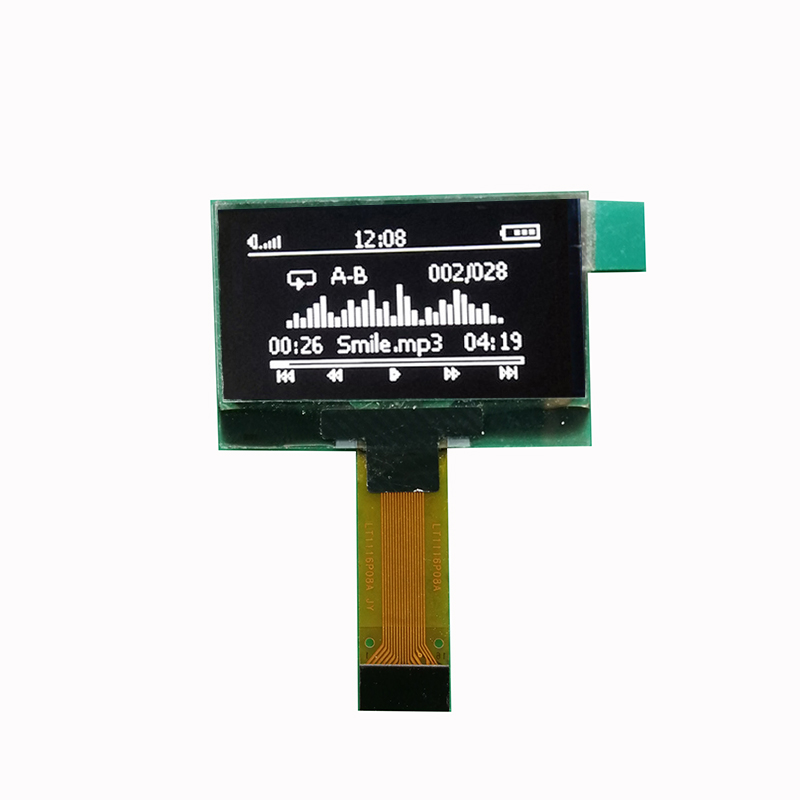

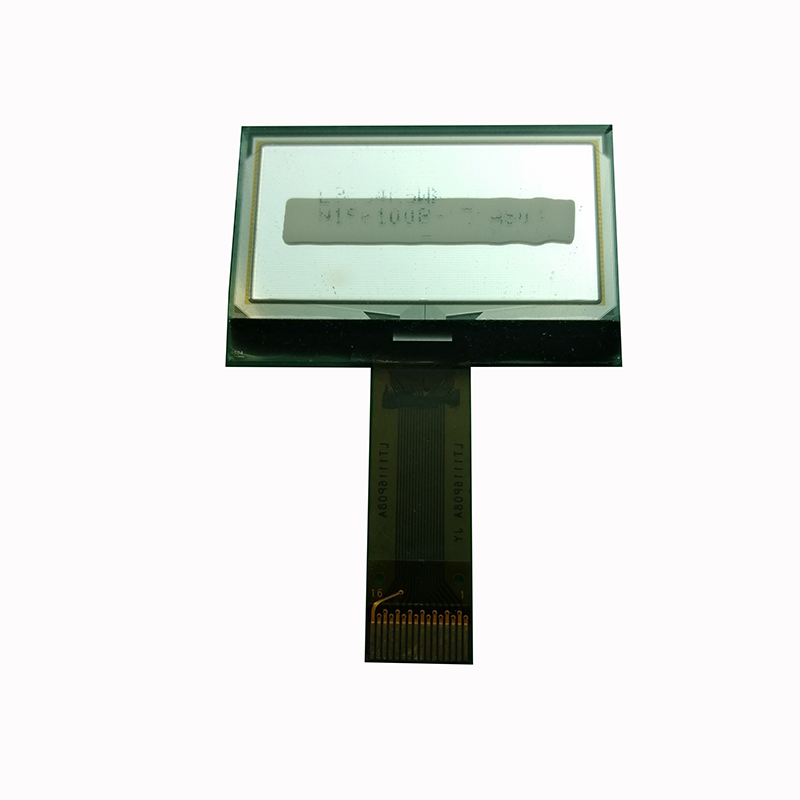

Product Display
