1.3 inch 240*240 ips tft module with capacitive touch screen MCU SPI interface panel 1:1 square lcd display for smart watch

TThe KLD13005HCIA is a 1.3 inch 240*240 square IPS mode LCD module.
Features:
- Interface:
MCU SPI(optional)
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:
2*LED (2*LED in parallel), IBL=30mA, VBL=3.2V
Can be customized as requirements.

- LCM outline dimension:
26.20(H)*29.22(V)*1.94(T)(mm)
Can be designed as requirements.

- Touch Panel
Touch panel can be customized as requirements.

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.

Please contact us to provide datasheet for your checking.

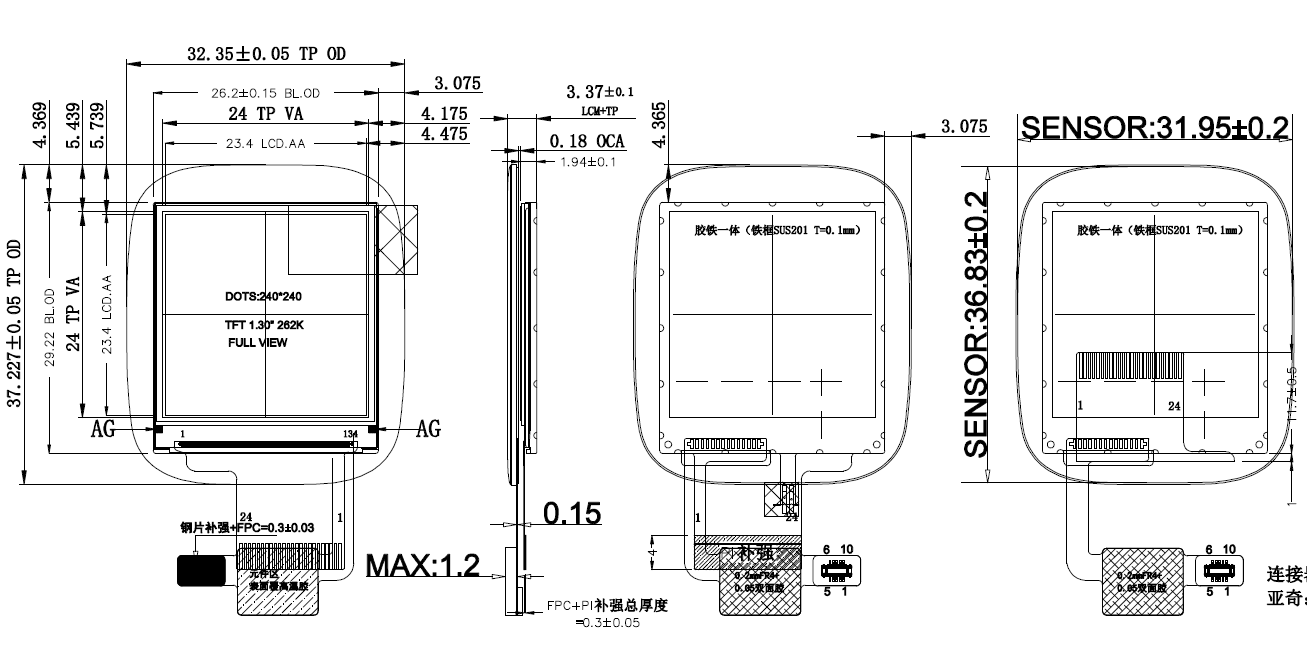

Drawing(with CTP):

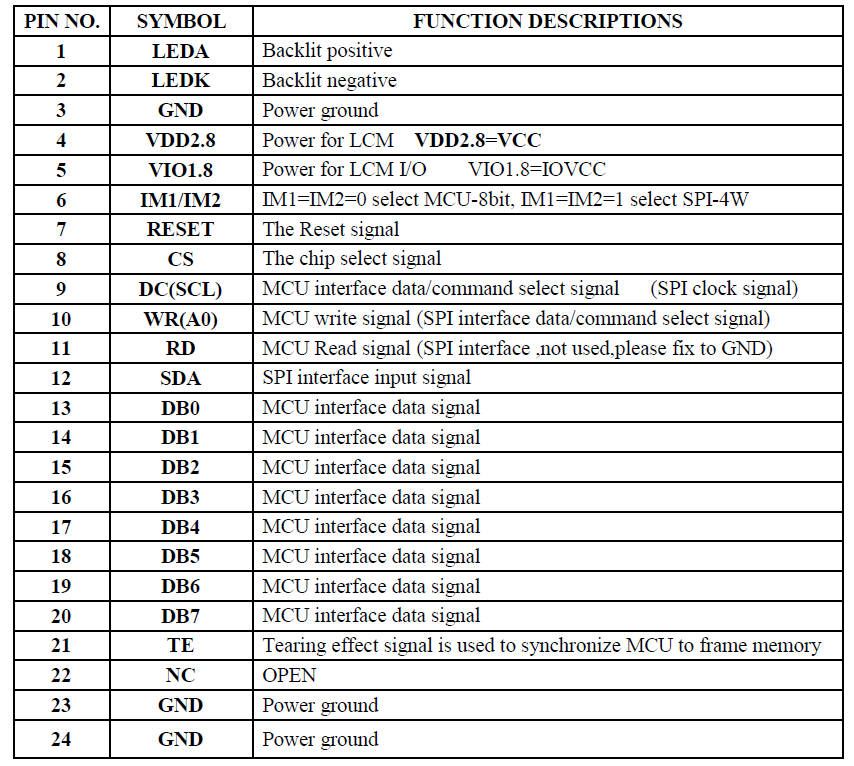

Interface connection:
