1024x768 resolution 20 pin LVDS interface M104GNX1 R1 XGA 10.4 inch tft lcd panel touch screen display module for elevator
KLD M104GNX1
minimum order
1 piece
Quantity:
$109.00 - $151.00 / piece
- Display Size:10.4 inch
- Place of Origin:Guangdong, China
- Model Number:KLD M104GNX1
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:1024*RGB*768
- LCD type:TN
- Active Area:211.2*158.4
- Outline dimension:236.0*176.9*5.7
- View direction:6 O'clock
- Brightness:350cd/m2
- Interface:LVDS
- Storage Temp.:(-30℃,80℃)
- Color Depth:262K, 6-bit
CTP 1024*768 TFT LVDS interface lcd display 10.4inch XGA lcd screen for industrial
Product Description
| Resolution | 1024*RGB*768 |
| LCD type | TN |
| Active Area | 211.2*158.4 |
| Outline dimension | 236.0*176.9*5.7 |
| View direction | 6 O'clock |
| Brightness | 350cd/m2 |
| Interface | LVDS |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The KLD104GNX1 is a 10.4inch 1024*768 landscape TN mode LCD module.
Features:
- Interface: LVDS
- BLU: VBL=12V
- LED life time: over 30,000Hrs
- Operating Temperature: (-20degree, 70degree)
- LCM outline dimension: 236.0(H)*176.9(V)*5.7(T)(mm)
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements.

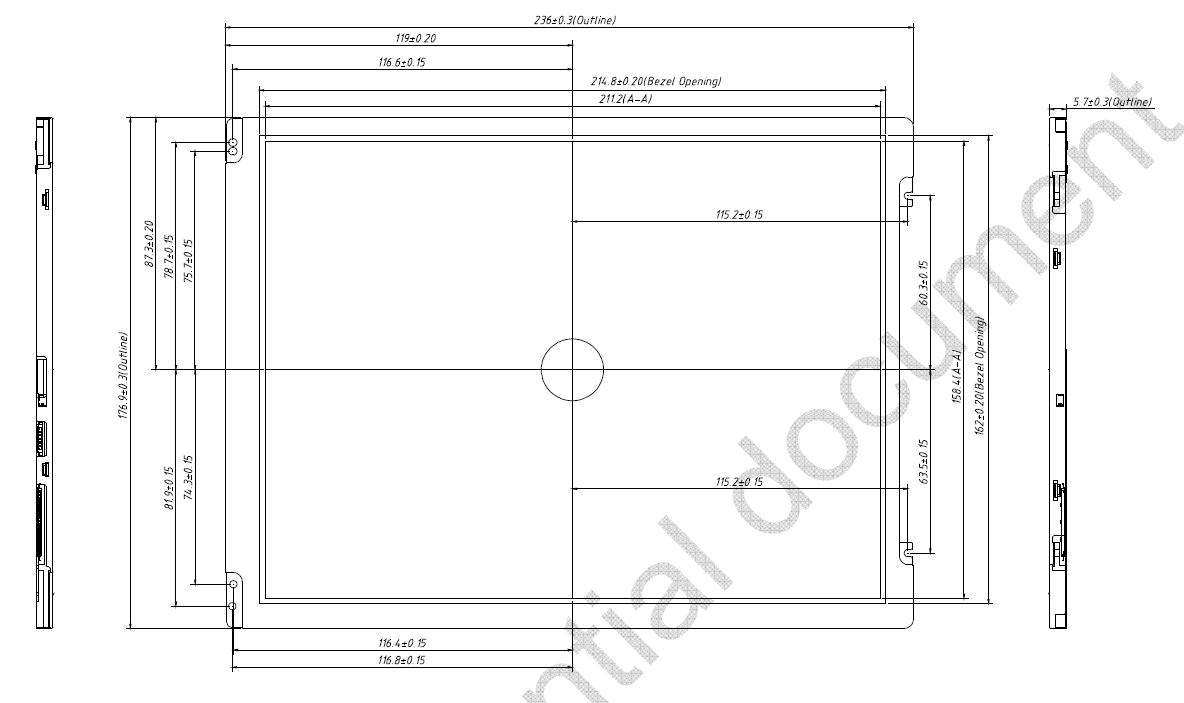

Drawing:

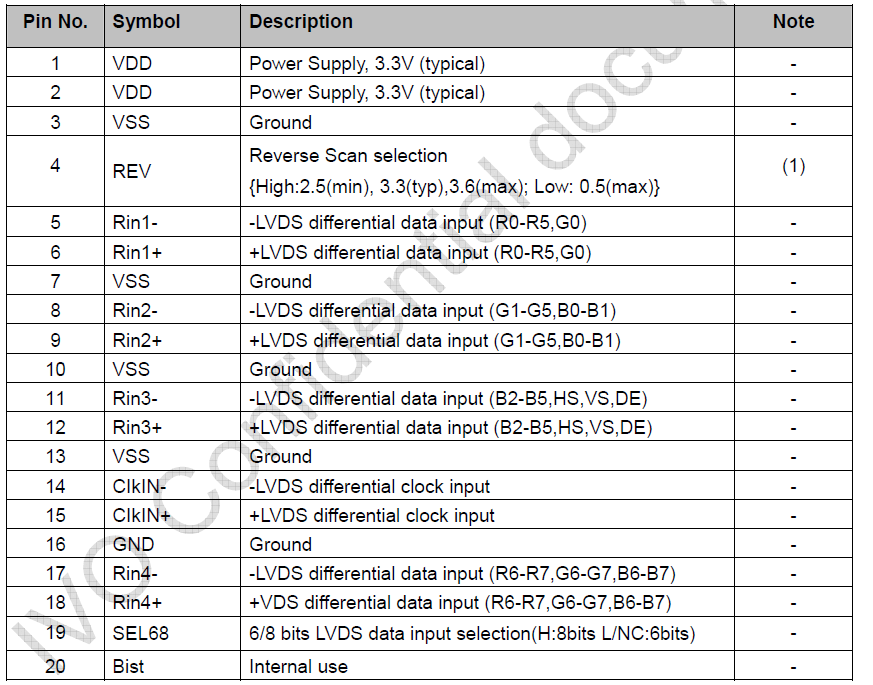

Interface connection:

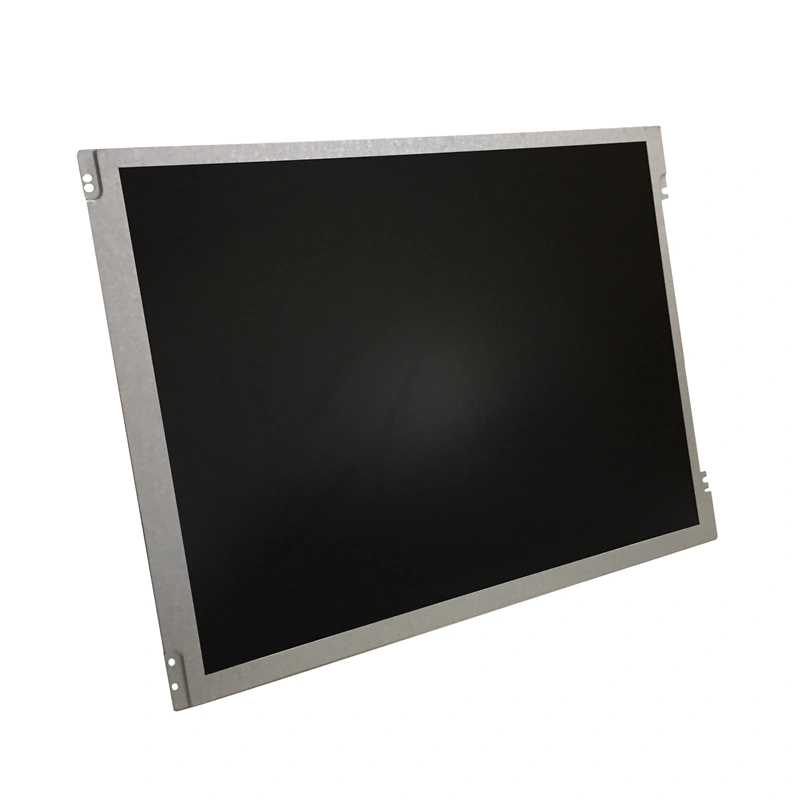

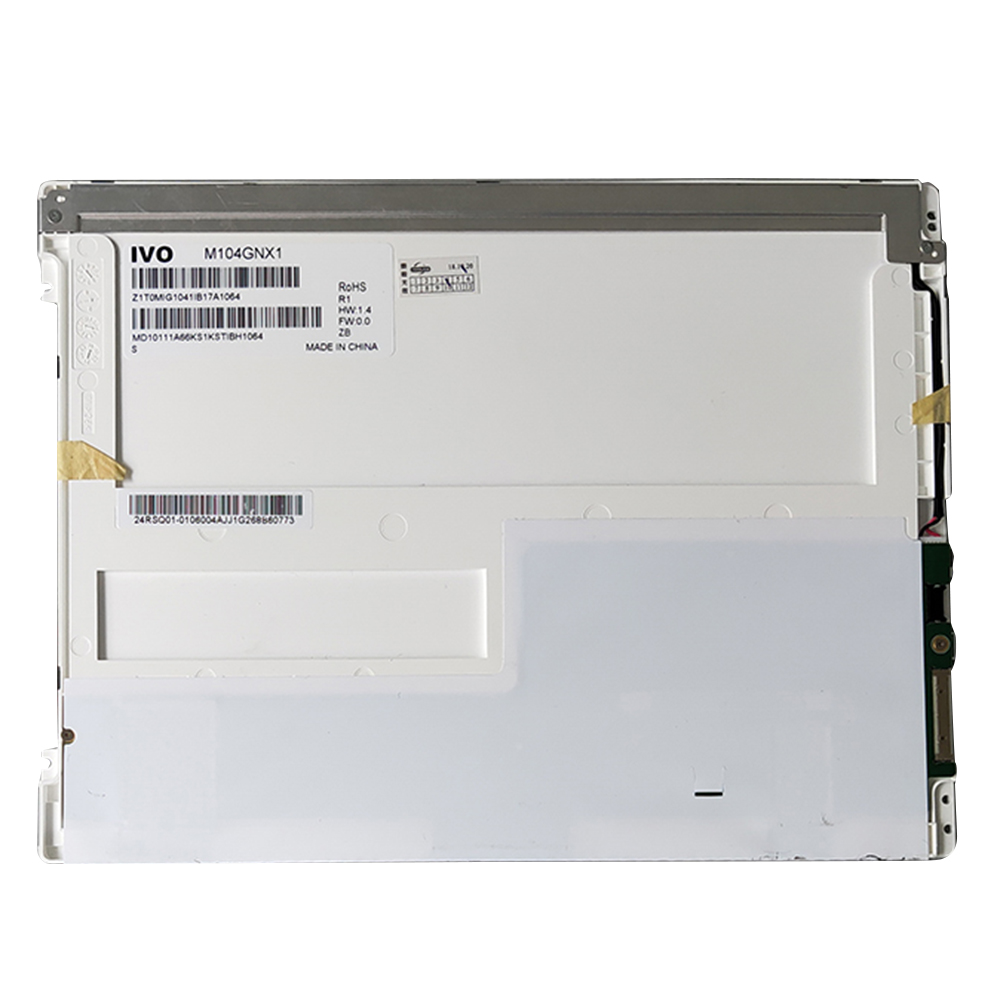

Product Display
Related Products-OI
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | Brightness (cd/m2) | View direction | Storage Temprature | Touch panel |
| 2.8 | KLD2843GNTA | 240*320 | 50.00*69.20*2.40 | MCU | 350 | ALL | (-30,80) | RTP/CTP |
| 3.5 | KLD35126GHTA | 320*480 | 55.00*84.71*2.25 | MCU | 250 | ALL | (-30,80) | RTP |
| 4 | KLD4076GNTA | 480*800 | 57.14*96.85*2.20 | MIPI | 250 | 12 O'Clock | (-30,80) | W/O |
| 3.95 | KLD395110 | 480*480 | 74.83*78.98*2.15 | RGB/SPI | 400 | ALL | (-30,80) | CTP |
| 8.4 | KLDM084GNS1 | 800*600 | 203.0*142.5*6.2 | LVDS | 350 | 12 O'Clock | (-30,80) | CTP |
| 12.1 | KLD M121GNS3 | 800*600 | 279.00*209.00*9.10 | LVDS | 400 | 6 O'Clock | (-30,85) | CTP |
| 12.1 | KLD M121GNX2 | 1024*768 | 279.00*209.00*9.00 | LVDS | 350 | 6 O'Clock | (-30,80) | CTP |
| 7 | KLD70111 | 1280*800 | 161.00*107.00*2.50 | LVDS | 300 | ALL | (-30,80) | CTP |
| 10.1 | KLD101200 | 1280*800 | 228.60*148.80*2.60 | LVDS | 400 | ALL | (-30,80) | RTP/CTP |
| 10.4 | KLD104GNX1 | 1024*768 | 236.00*176.90*5.70 | LVDS | 350 | 6 O'Clock | (-30,80) | RTP/CTP |
| 26.5 | KLDLM265SQ1 | 1920*1920 | 491.80*491.80*13.50 | LVDS | 300 | ALL | (-20,60) | W/O |

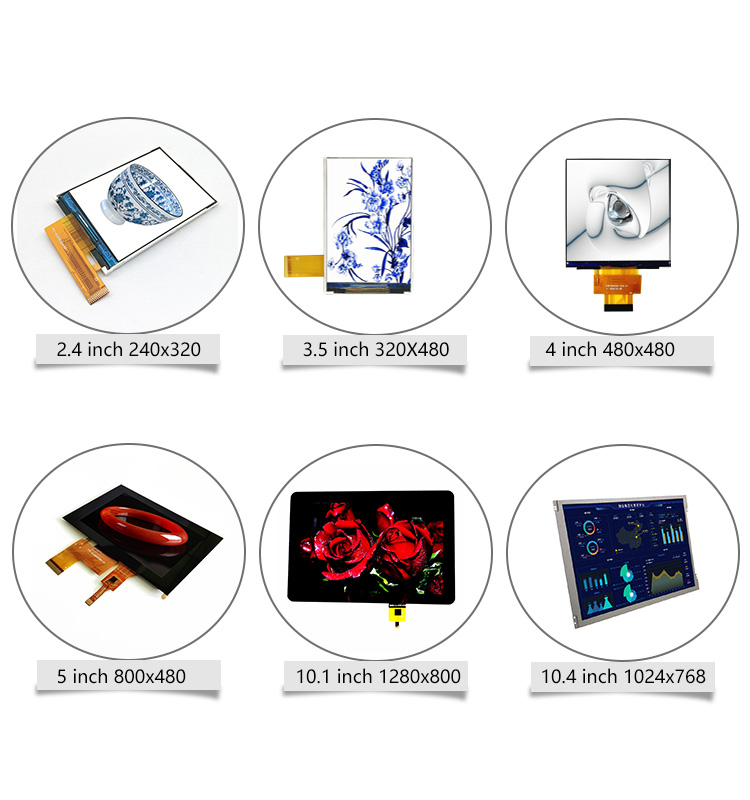

Main products
Work Shop

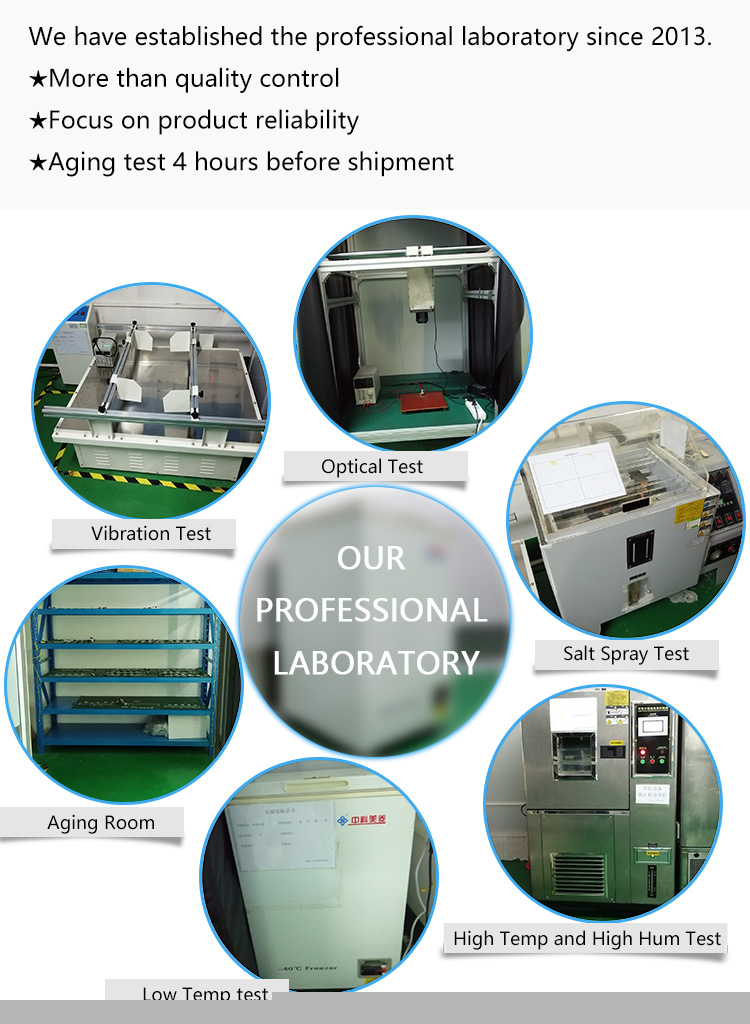

Product Reliability
