with USB interface capacitive touch screen 10.4 inch 1024x768 M104GNX1R1 LVDS interface tft lcd display for industrial

KLDM104GNX1

minimum order

1 set

Country of Origin

Shenzhen/Hongkong

Quantity:

$134.00 - $176.00 / set

Contact Now

add to cart

Type:TN
Display Size:10.4 inch
Place of Origin:Guangdong, China
Brand Name:KLD
Resolution:1024*RGB*768
Color Depth:262K, 6-bit
Active Area:211.2*158.4
Outline dimension:236.0*176.9*5.7
View direction:6 O'clock
Brightness:350cd/m2
LCM Interface:LVDS
Pin Number:20
CTP interface:USB
Storage Temp.:(-30℃,80℃)

with CTP 1024*768 10.4 inch TFT LVDS interface lcd display lcd screen for industrial

Product Description

Resolution	1024RGB768
LCD type	TN
Active Area	211.2*158.4
Outline dimension	236.0176.95.7
View direction	6 O'clock
Brightness	350cd/m2
Interface	LVDS
Storage Temp	(-30℃,80℃)
Touch panel	Additiona option(support RTP and CTP)

The KLD104GNX1 is a 10.4inch 1024*768 landscape TN mode LCD module.
Features:
- Interface: LVDS
- BLU: VBL=12V
- LED life time: over 30,000Hrs
- Operating Temperature: (-20degree, 70degree)
- LCM outline dimension: 236.0(H)*176.9(V)*5.7(T)(mm)
- Touch Panel
USB interface capacitive touch panel.
Touch panel can be customized as requirements

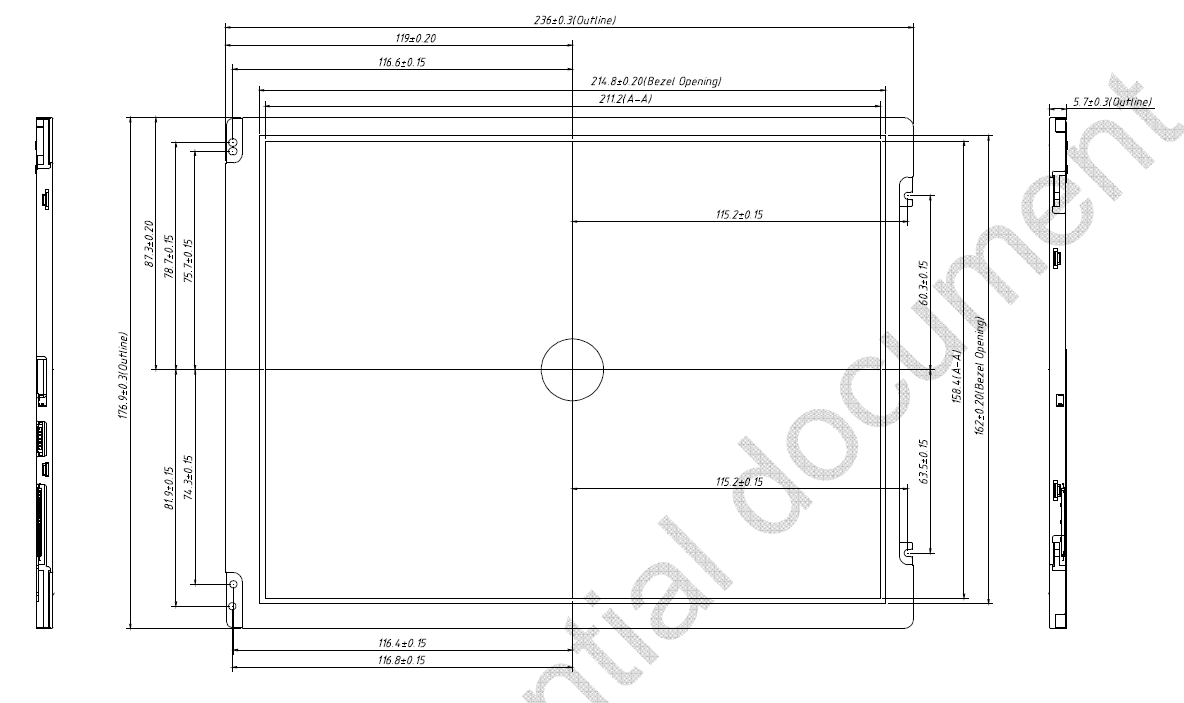

LCM Drawing:

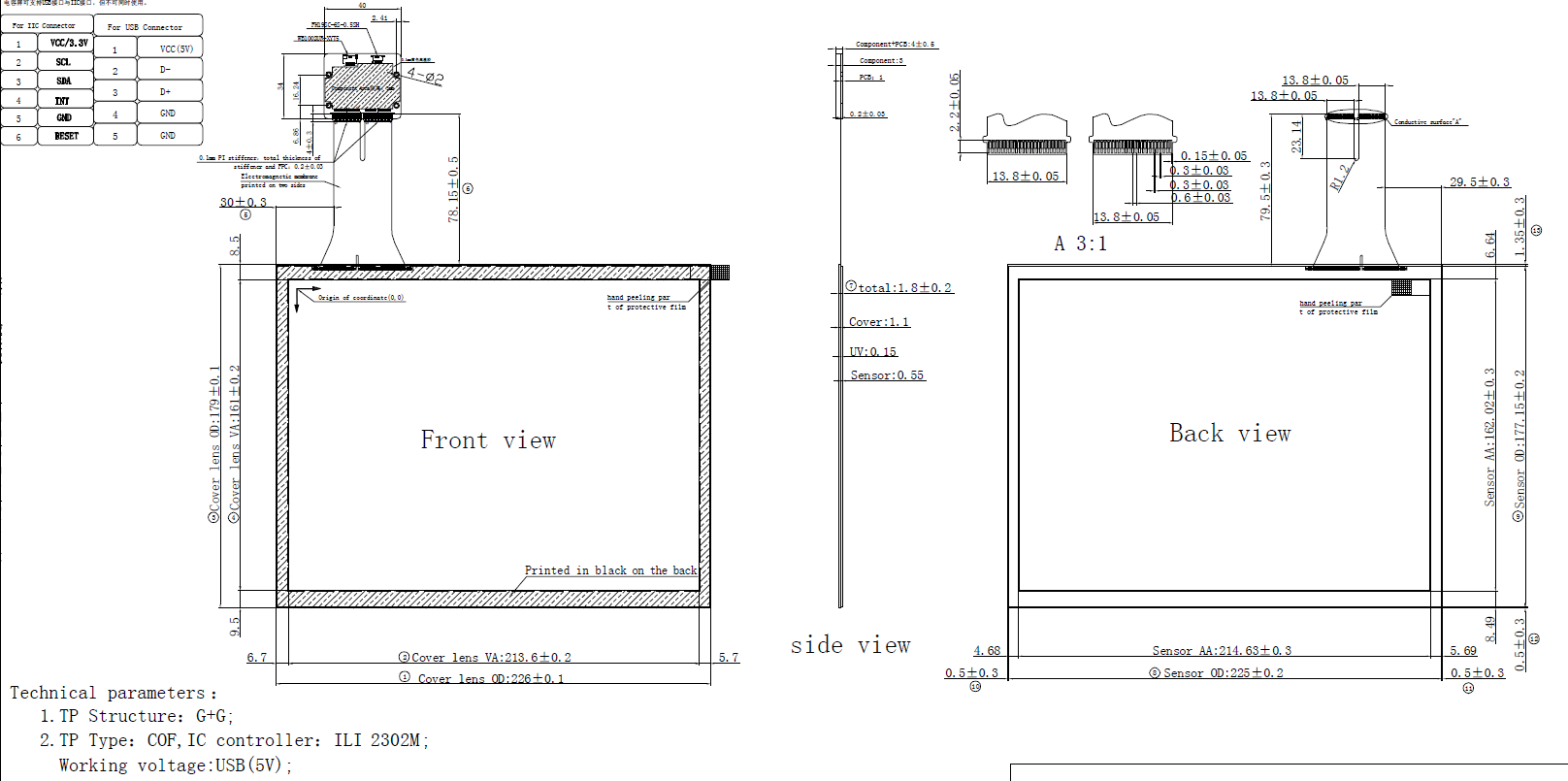

CTP Drawing:

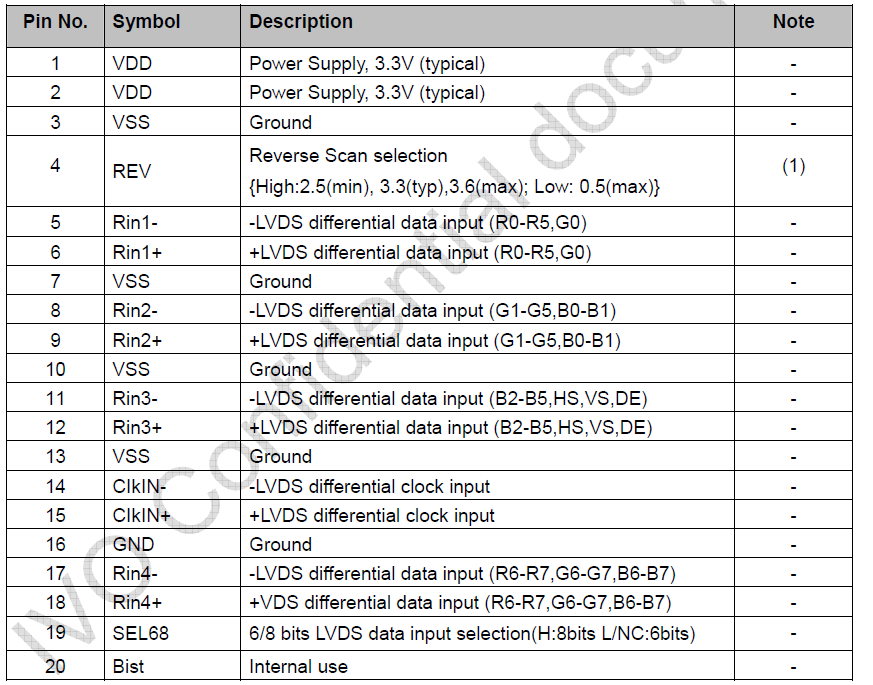

LCM Interface connection:

The LCM interface connection of 10.4 inch touch screen

Product Display

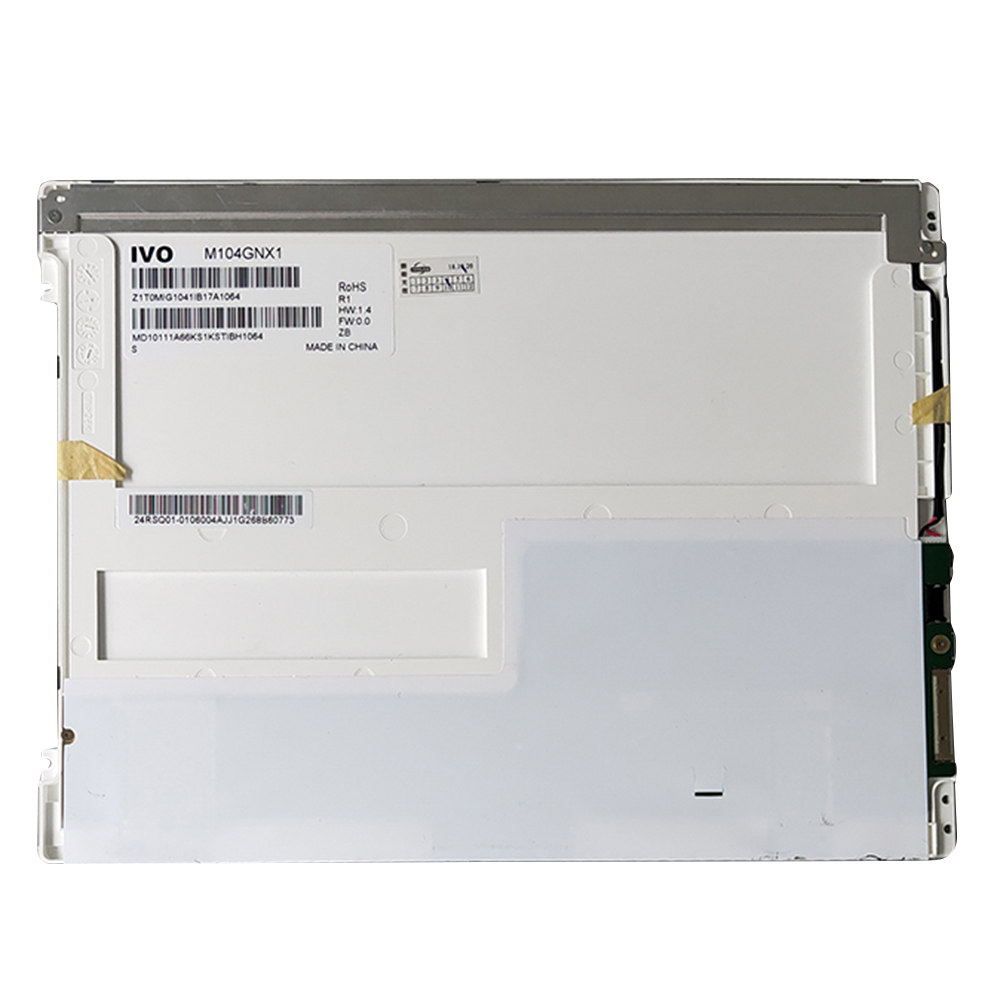

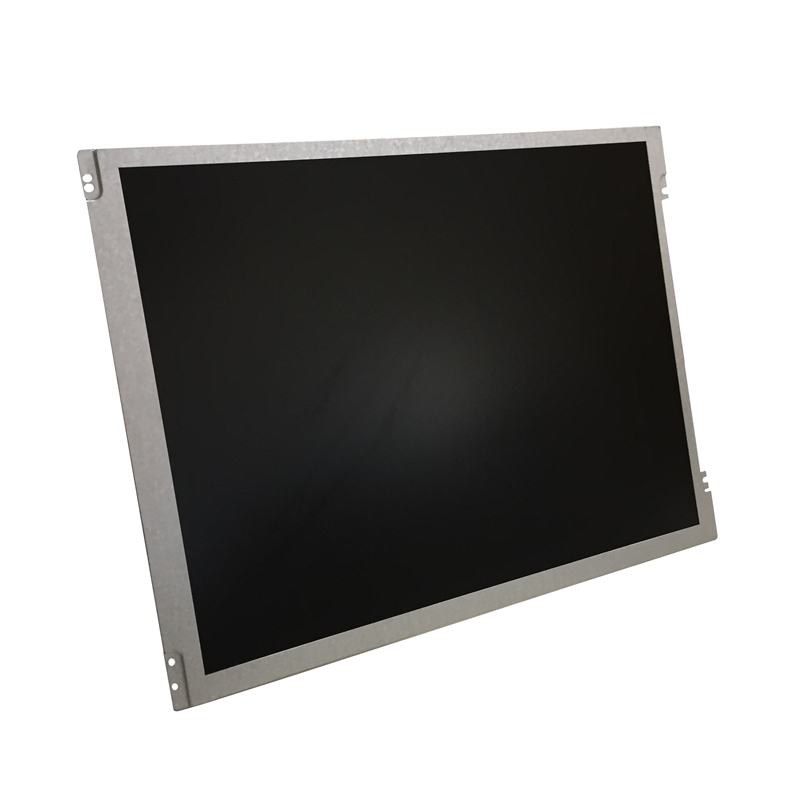

The real shot front view of 10.4 inch touch screen The real shot back of 10.4 inch touch screen

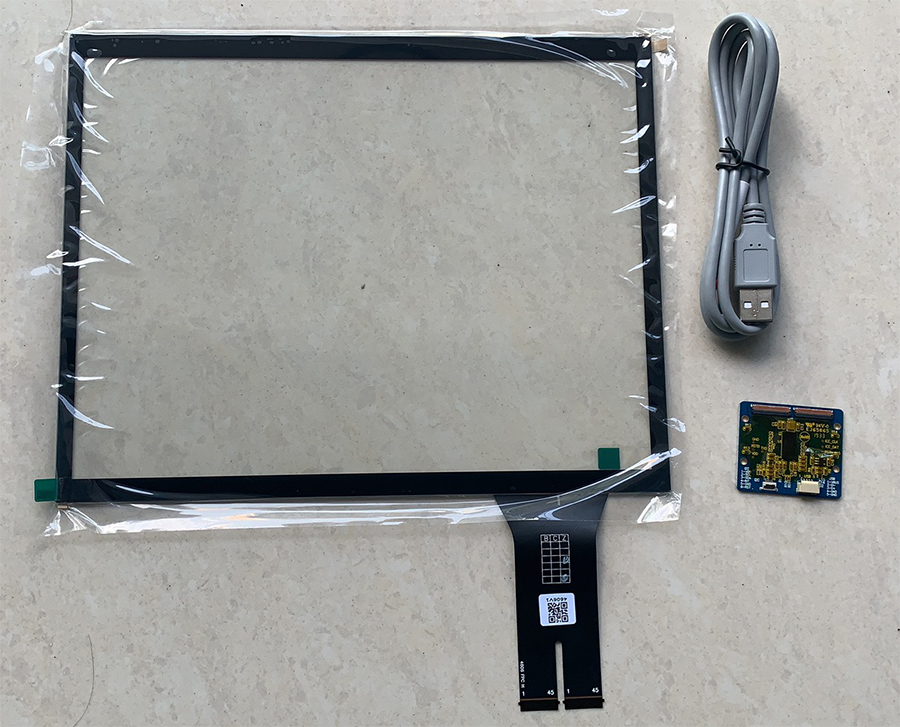

The real shot front of touch screen

Related Products-OI

Size	Model No.	Resolution	Outline dimension (LCM) HVT(mm)	Interface	Brightness (cd/m2)	View direction	Storage Temprature
7	KLD07100	800*480	164.90100.005.70	RGB	1200	12 O'Clock	(-30,80)
7	KLD70111	1280*800	161.00107.002.50	LVDS	300	ALL	(-30,80)
8.4	KLDM084GNS1	800*600	203.00142.506.20	LVDS	350	12 O'Clock	(-30,80)
10.1	KLD101200	1280*800	228.60148.802.60	LVDS	400	ALL	(-30,80)
10.4	KLD104GNX1	1024*768	236.00176.905.70	LVDS	350	6 O'Clock	(-30,80)
12.1	KLD M121GNS3	800*600	279.00209.009.10	LVDS	400	6 O'Clock	(-30,85)
12.1	KLD M121GNX2	1024*768	279.00209.009.00	LVDS	350	6 O'Clock	(-30,80)
26.5	KLDLM265SQ1	1920*1920	491.80491.8013.50	LVDS	300	ALL	(-20,60)
