4.3 inch 480x272 RGB interface IPS capacitive touch panel module screen tft lcd display for industrial

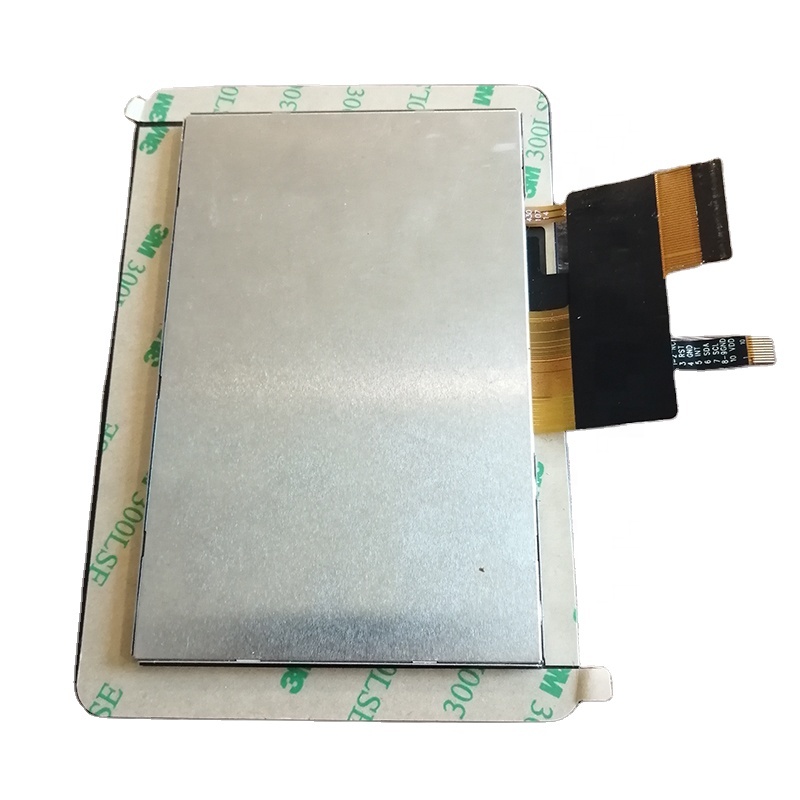

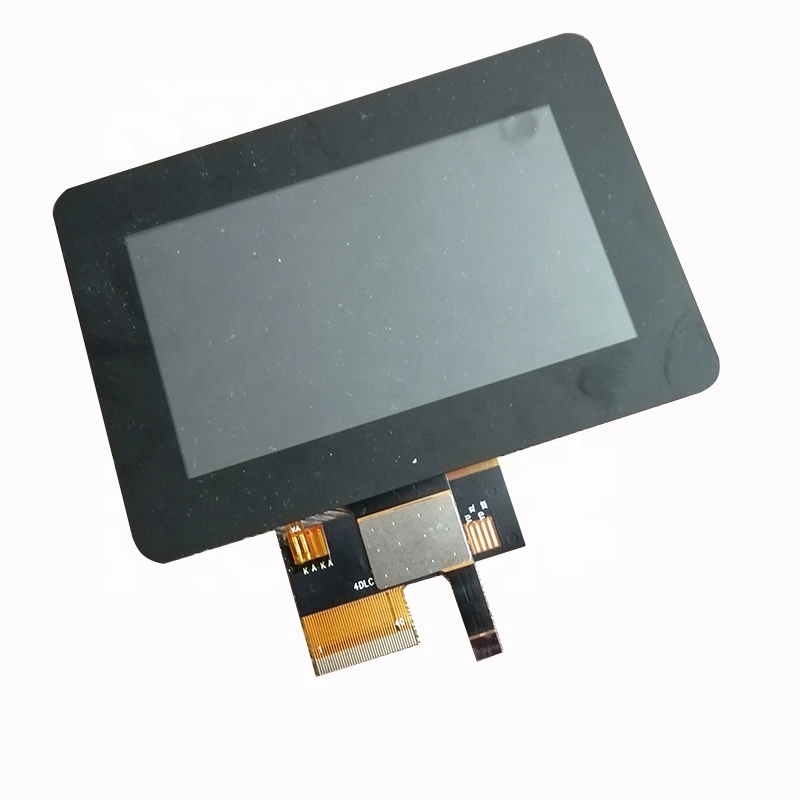

The GST4312HNTA is a 4.3 inch 480*272 landscape IPS mode LCD module.
Features:
- Interface:
RGB 24bit
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:
10 LED IBL=40mA
Can be customized as requirements.

- LCM outline dimension:
105.50(H)*67.20(V)*2.95(T)(mm)
Can be designed as requirements.

- Touch Panel
GFF type capacitive touch panel.
Control IC: FT5436
Touch panel can be customized as requirements.

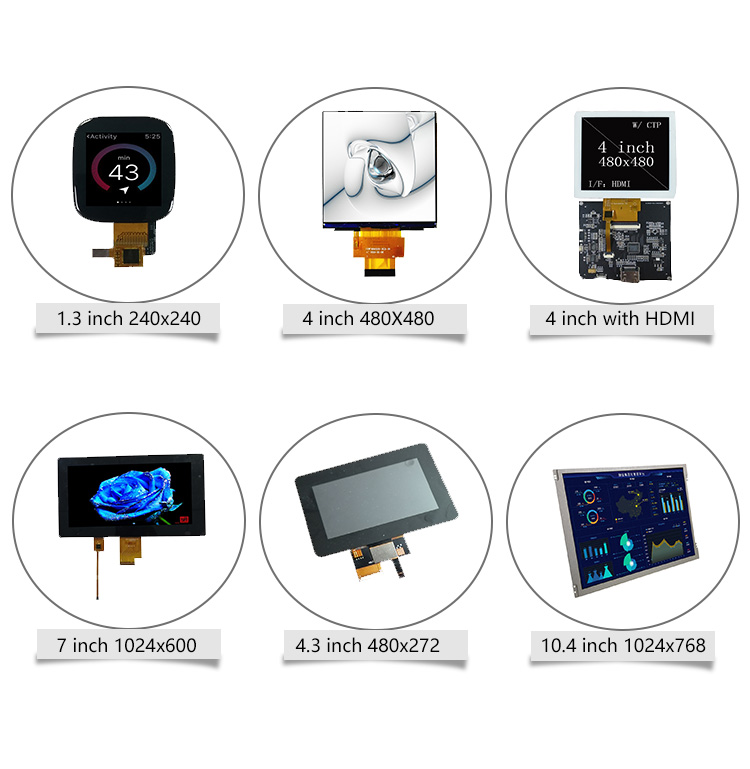

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness◊touch panel etc.

Please contact us to provide datasheet for your checking.

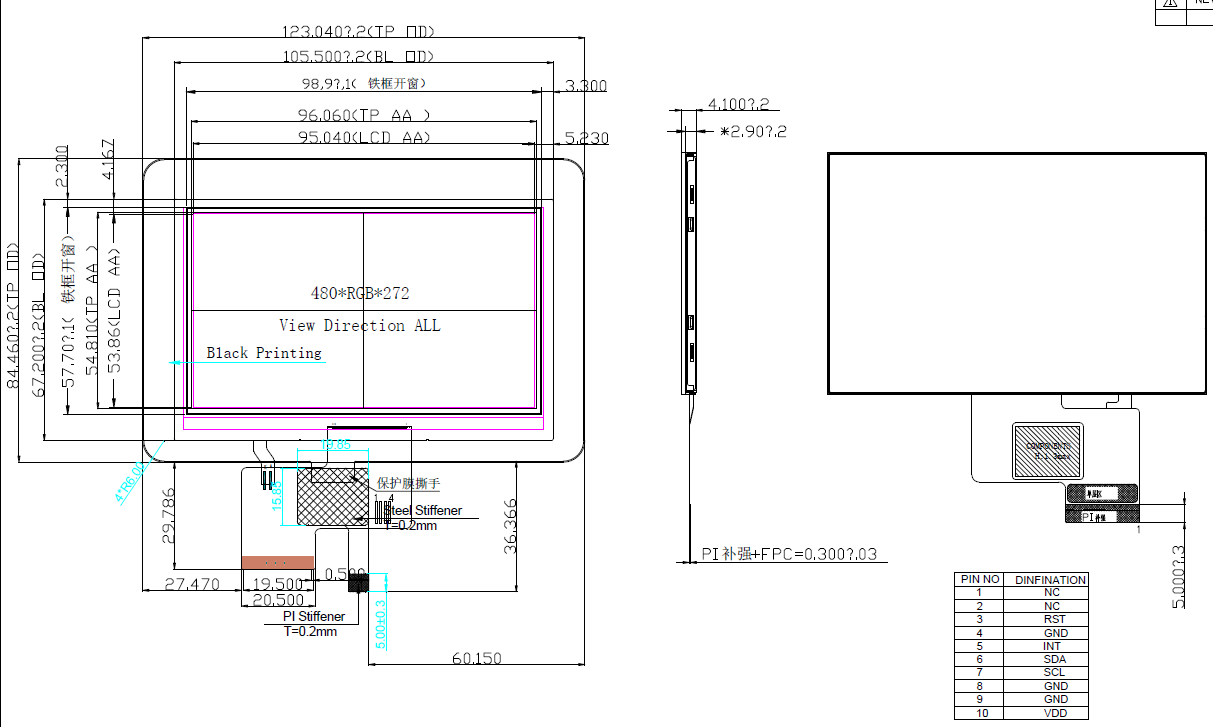

Drawing (LCM with CTP):

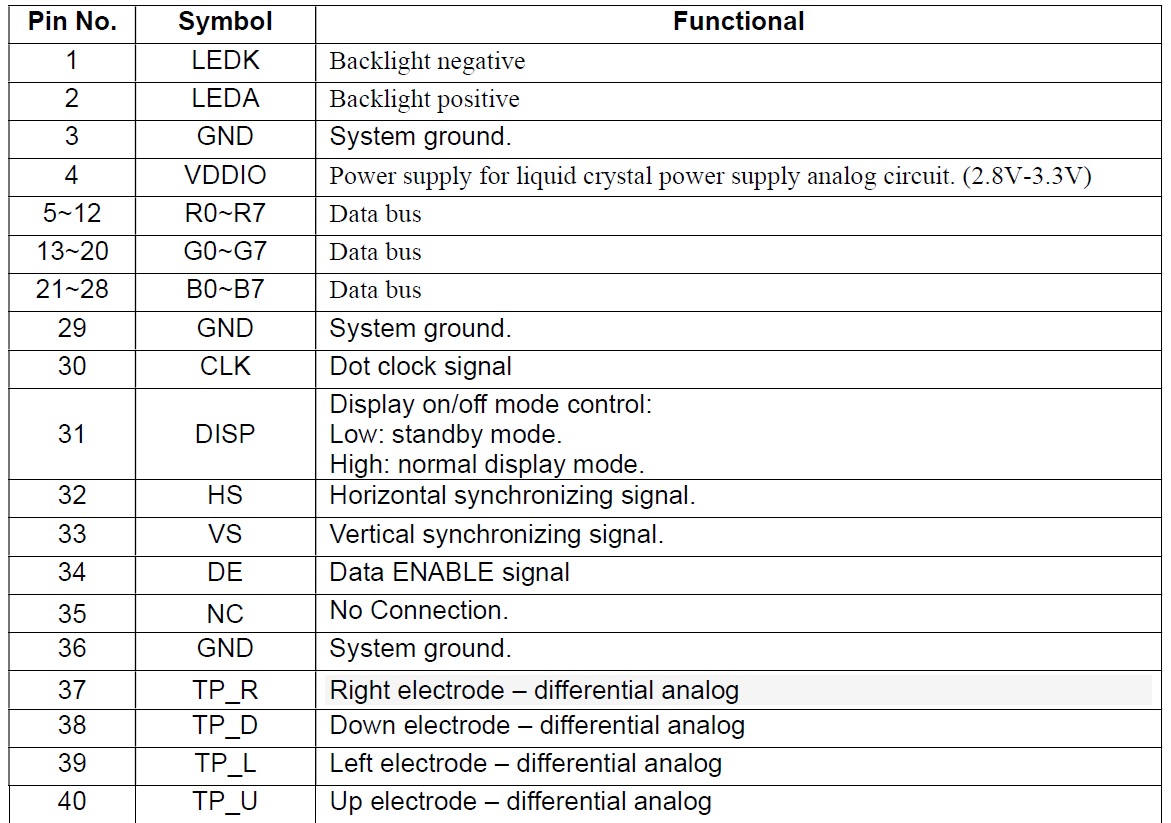

LCM Interface connection:
