4.3 inch 480x272 high brightness lcd panel + capacitive touch High brightness all free viewing angle RGB interface tft module

KLD4315BWIA

minimum order

1 piece

Country of Origin

Shenzhen/Hongkong

Quantity:

$11.10 - $15.50 / piece

Contact Now

add to cart

Type:IPS
Display Size:4.3 inch
Supplier Type:Original manufacturer
Place of Origin:Guangdong, China
Brand Name:KLD
Resolution:480*RGB*272
LCM Outline dimension:105.50(H)*67.20(V)*2.95(T)
Active Area:95.04(H)*53.86(V)
View direction:ALL
LCM Brightness:500cd/m2
Interface:RGB
Driver IC:ST7283
CTP Control IC:GT1151
CTP interface:I2C
Operation Temp.:(-20℃,70℃)

with capacitive touch panel 4.3 inch 480x272 IPS lcd screen

Product Description

Resolution	480RGB272
LCD type	IPS
Active Area	95.04(H)*53.86(V)
LCM Outline dimension	105.50(H)67.20(V)2.95(T)
View direction	ALL
Brightness	500cd/m2
Interface	RGB
Driver IC	ST7283
Storage Temp	(-30℃,80℃)
Touch panel	CTP

The KLD4315BWIA is a 4.3 inch 480*272 landscape IPS mode LCD module.
Features:
- Interface:
RGB 24bit
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:
10 LED IBL=40mA
Can be customized as requirements.

- LCM outline dimension:
105.50(H)*67.20(V)*2.95(T)(mm)
Can be designed as requirements.

- Touch Panel
GFF type capacitive touch panel.
Control IC: GT1151

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness◊touch panel etc.

Please contact us to provide datasheet for your checking.

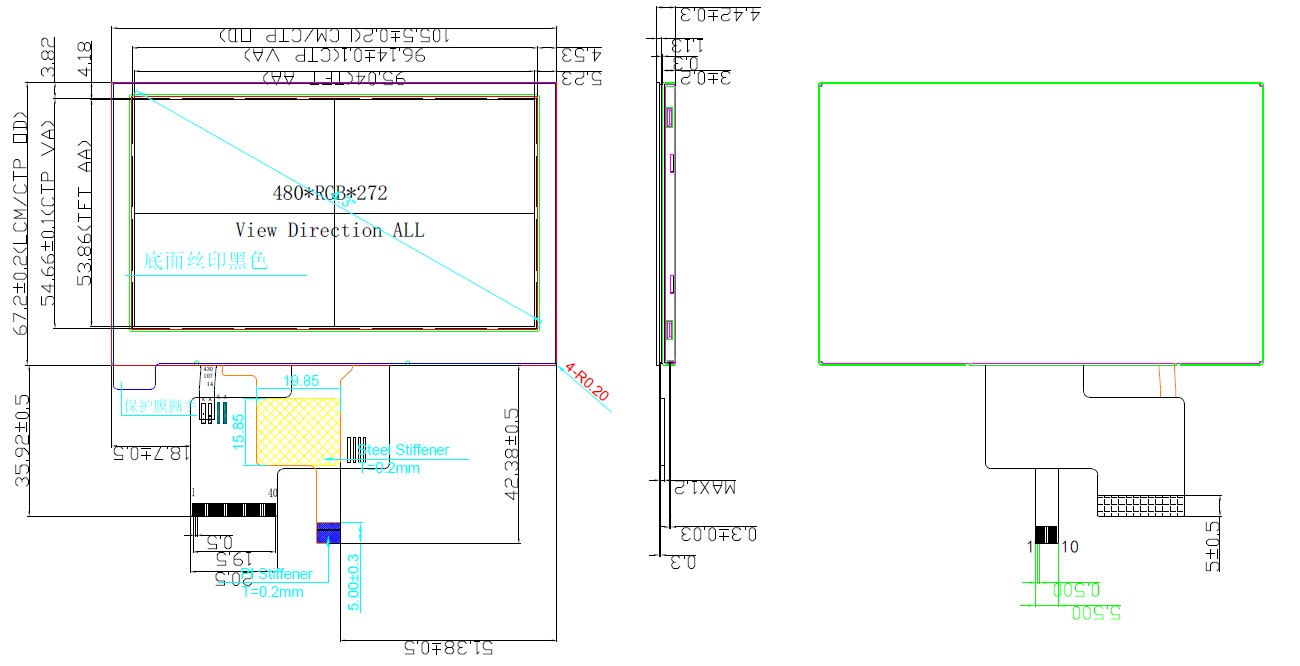

Drawing (LCM with CTP):

The drawing (LCM+CTP) of high brightness lcd

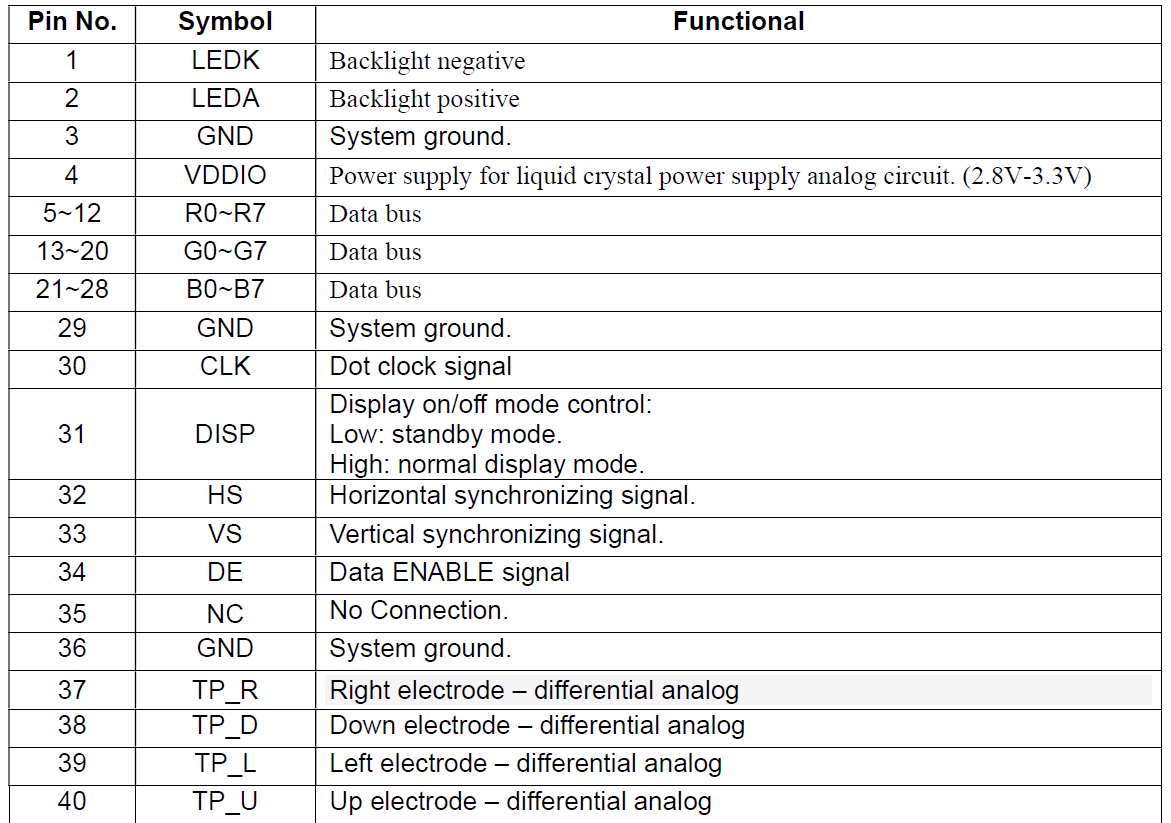

LCM Interface connection:

The interface connection of high brightness lcd

Product Display

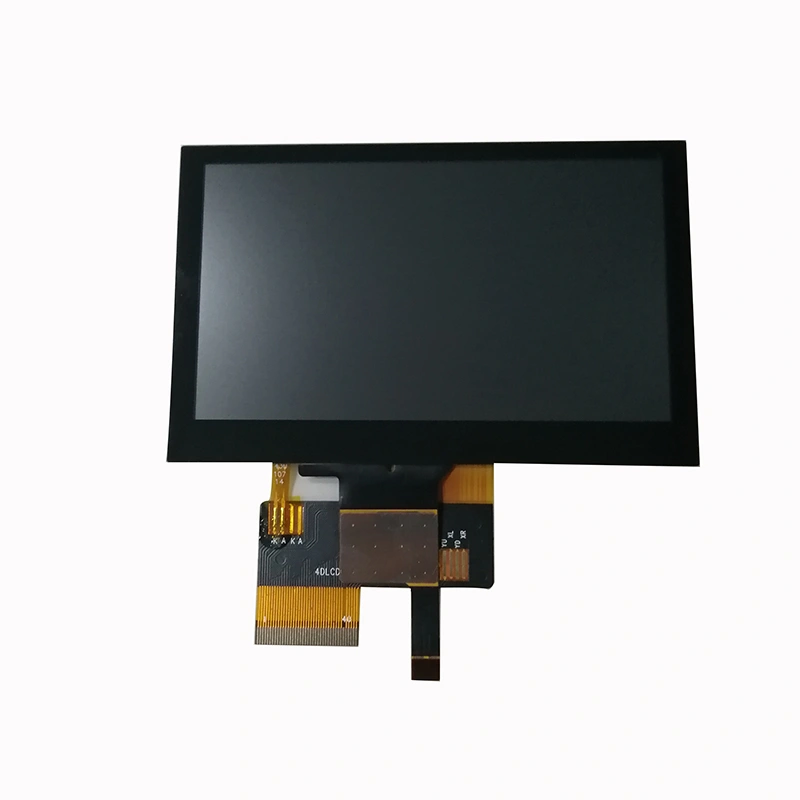

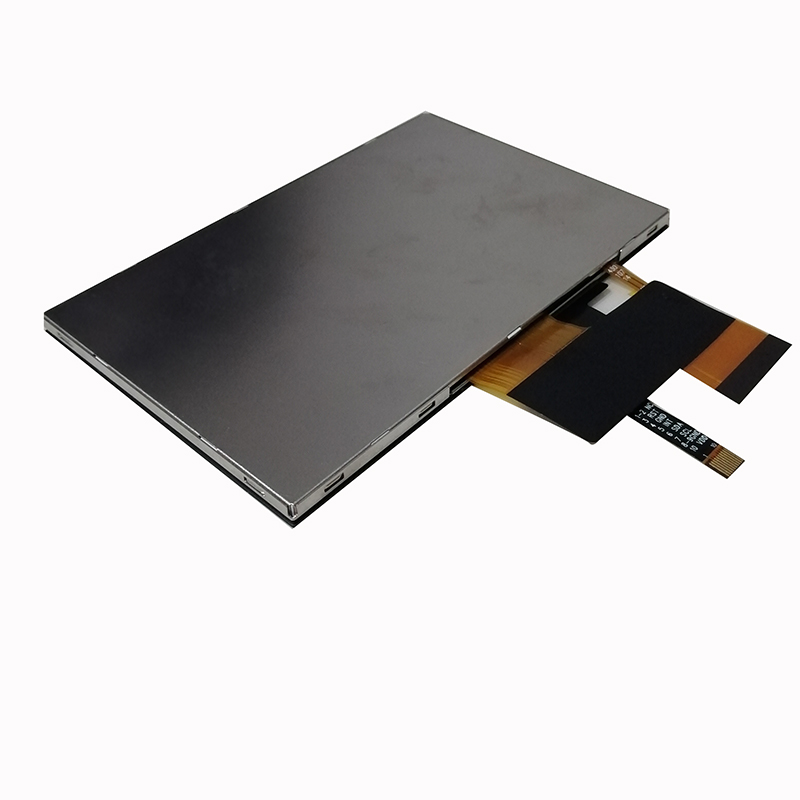

Real shot front view of high brightness lcd Real shot back view of high brightness lcd
