CTP 800*600 LVDS interface TFT lcd display 8.4 inch SVGA lcd screen module for industrial

• Type:TN
• Display Size:8.4 inch
• Supplier Type:original manufacturer
• Place of Origin:Guangdong, China
• Brand Name:KLD
• Product name:LCD Dispaly Screen
• Resolution:800*RGB*600
• LCD type:TN
• Active Area:170.4*127.8
• Outline dimension:203.0*142.5*6.2
• View direction:12 O'clock
• Brightness:350cd/m2
• Interface:LVDS
• Storage Temp.:(-30℃,80℃)
• Color Depth:262K, 6-bit

800*600 LVDS interface lcd display 8.4 inch SVGA lcd screen for industrial





Product Description



Resolution	800*RGB*600
LCD type	TN
Active Area	170.4*127.8
Outline dimension	203.0*142.5*6.2
View direction	12 O'clock
Brightness	350cd/m2
Interface	LVDS
Storage Temp	(-30℃,80℃)
Touch panel	Additiona option(support RTP and CTP)





The KLD M084GNS1 is a 8.4inch 800*600 landscape TN mode LCD module.
Features:
- Interface: LVDS
- BLU: VBL=12V
- LED life time: over 50,000Hrs
- Operating Temperature: (-20degree, 70degree)
- Pin number: 20 Pin
- LCM outline dimension: 203.0(H)*142.5(V)*6.2(T)(mm)
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

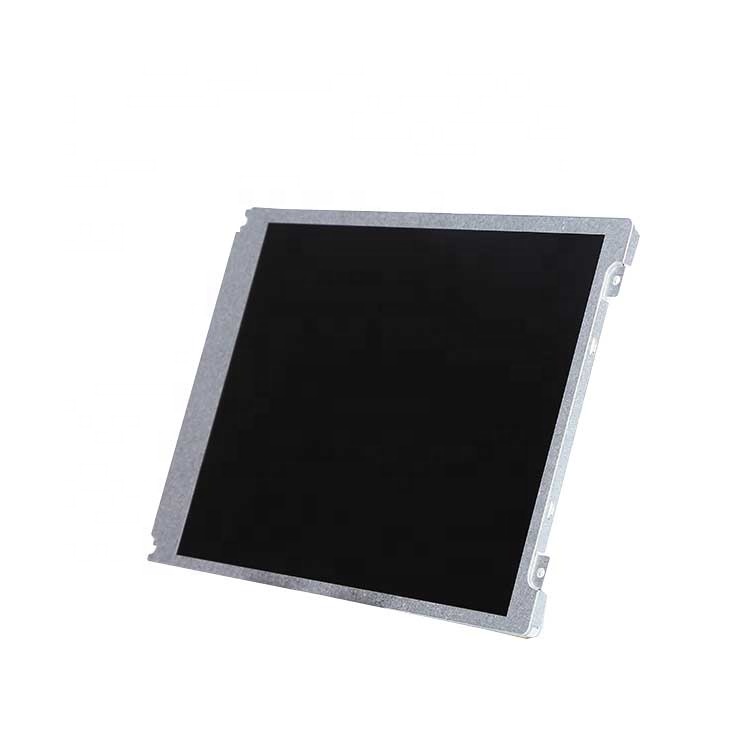

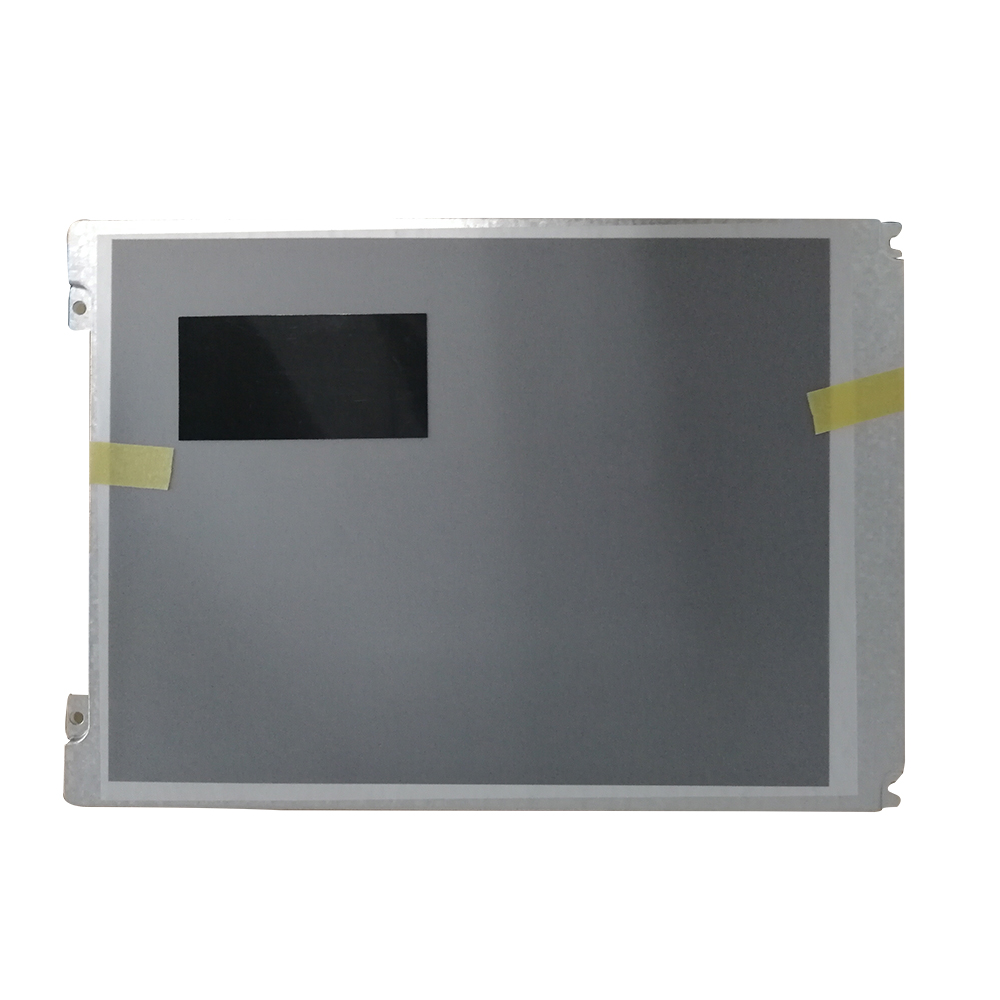

Product Display













Related Products-OI



Size	Model No.	Resolution	Outline dimension (LCM) H*V*T(mm)	Interface	Brightness (cd/m2)	View direction	Storage Temprature
7	KLD07100	800*480	164.90*100.00*5.70	RGB	1200	12 O'Clock	(-30,80)
7	KLD70111	1280*800	161.00*107.00*2.50	LVDS	300	ALL	(-30,80)
8.4	KLDM084GNS1	800*600	203.00*142.50*6.20	LVDS	350	12 O'Clock	(-30,80)
10.1	KLD101200	1280*800	228.60*148.80*2.60	LVDS	400	ALL	(-30,80)
10.4	KLD104GNX1	1024*768	236.00*176.90*5.70	LVDS	350	6 O'Clock	(-30,80)
12.1	KLD M121GNS3	800*600	279.00*209.00*9.10	LVDS	400	6 O'Clock	(-30,85)
12.1	KLD M121GNX2	1024*768	279.00*209.00*9.00	LVDS	350	6 O'Clock	(-30,80)
26.5	KLDLM265SQ1	1920*1920	491.80*491.80*13.50	LVDS	300	ALL	(-20,60)

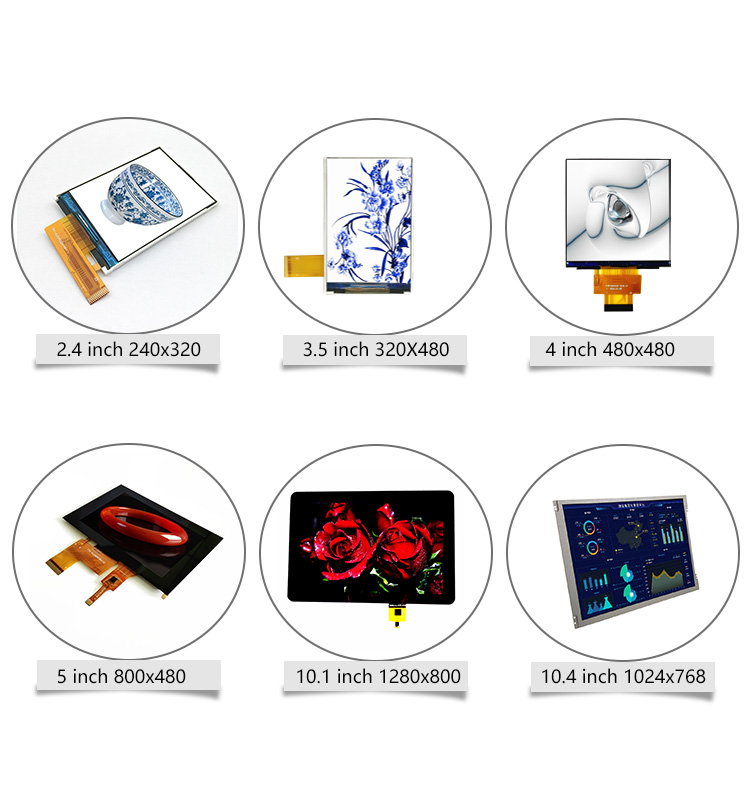

Standard LCD series
