Hot sell industrial 2.4 inch lcd 240x320 ST7789V mcu interface TFT lcd display screen module

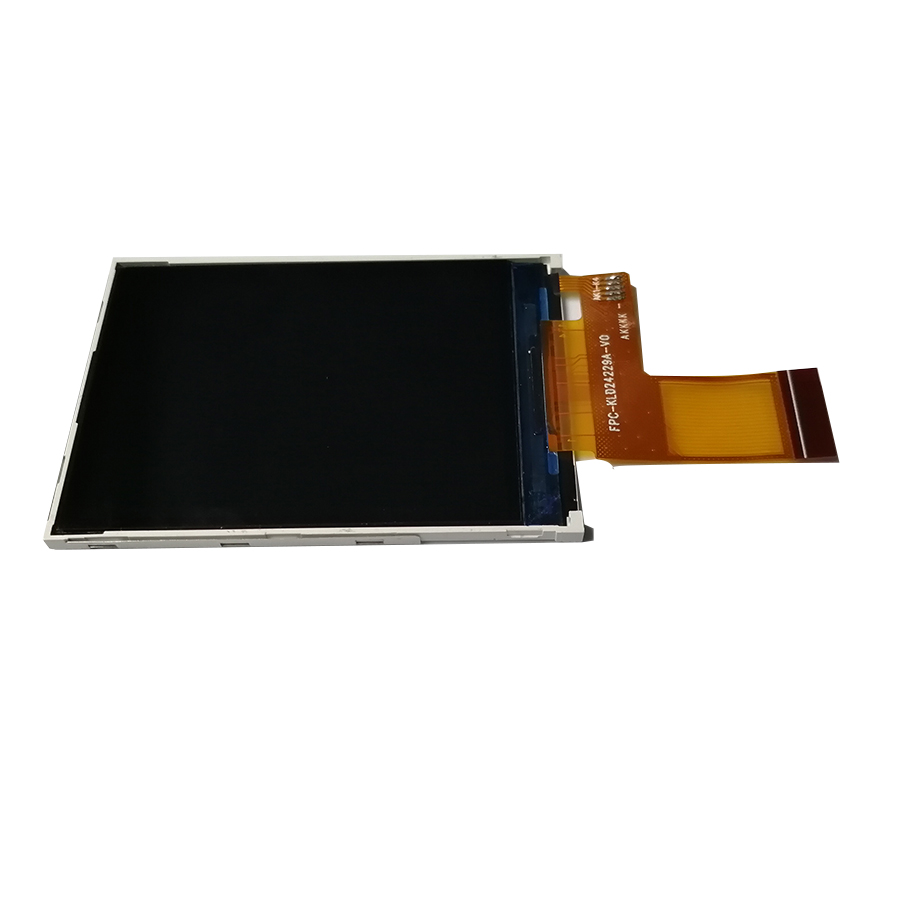

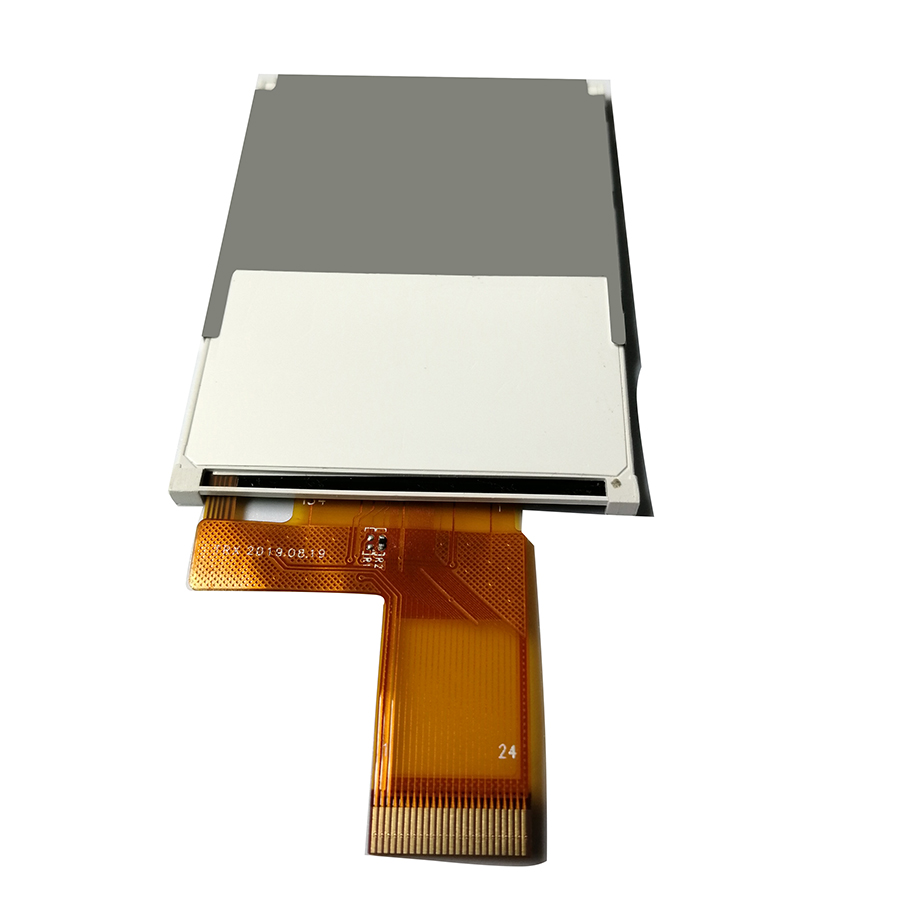

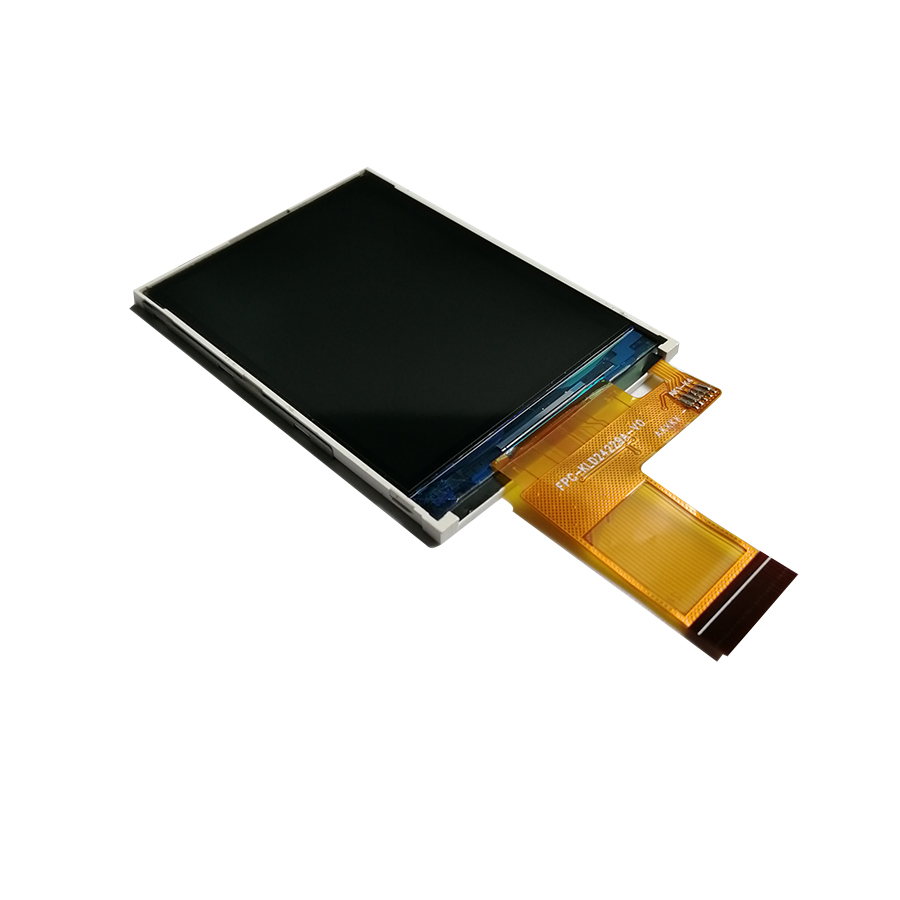

The KLD24229GNTA is a 2.4inch 240x320 portrait TN mode LCD module.

Features:

- Interface:

MCU
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

4*LED in parallel, IBL=80mA, VBL=3.2V;
Can be customized as requirements.

- LCM outline dimension:

42.72(H)*60.26(V)*2.25(T)(mm)
Can be designed as requirements.

- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

We also have several other MP products with similar configurations,
butwith different ◊interface ◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.
Please contact us to provide datasheet for your checking.

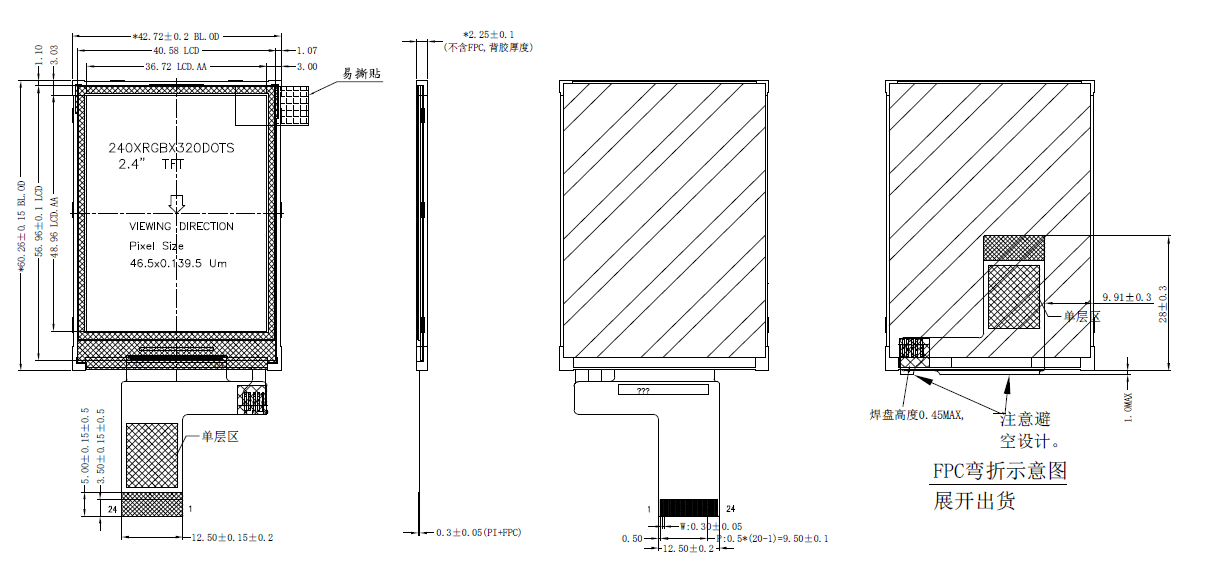

Drawing:

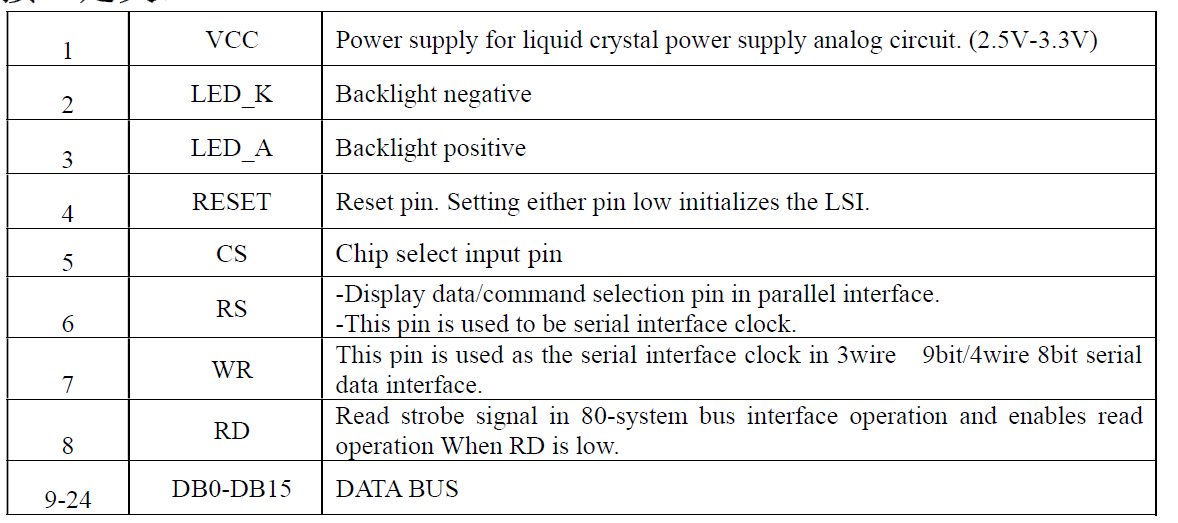

Interface connection:
