CTP 480*800 MIPI interface tft LCD display 4 inch WVGA LCD screen for industrial
- Display Size:4inch
- Place of Origin:Guangdong, China
- Model Number:KLD4076GNTA
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:480*RGB*800
- LCD type:TN
- Active Area:51.84(H)*86.40(V)
- Outline dimension:57.14(H)*96.85(V)*2.2(T)
- View direction:12 O'clock
- Brightness:250cd/m2
- Interface:MIPI
- Driver IC:ST7701
- Storage Temp.:(-30℃,80℃)
CTP 480*800 MIPI interface LCD display 4inch WVGA LCD screen for industrial
| Resolution | 480*RGB*800 |
| LCD type | TN |
| Active Area | 51.84(H)*86.40(V) |
| Outline dimension | 57.14(H)*96.85(V)*2.2(T) |
| View direction | 12 O'clock |
| Brightness | 250cd/m2 |
| Interface | MIPI |
| Driver IC | ST7701 |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |

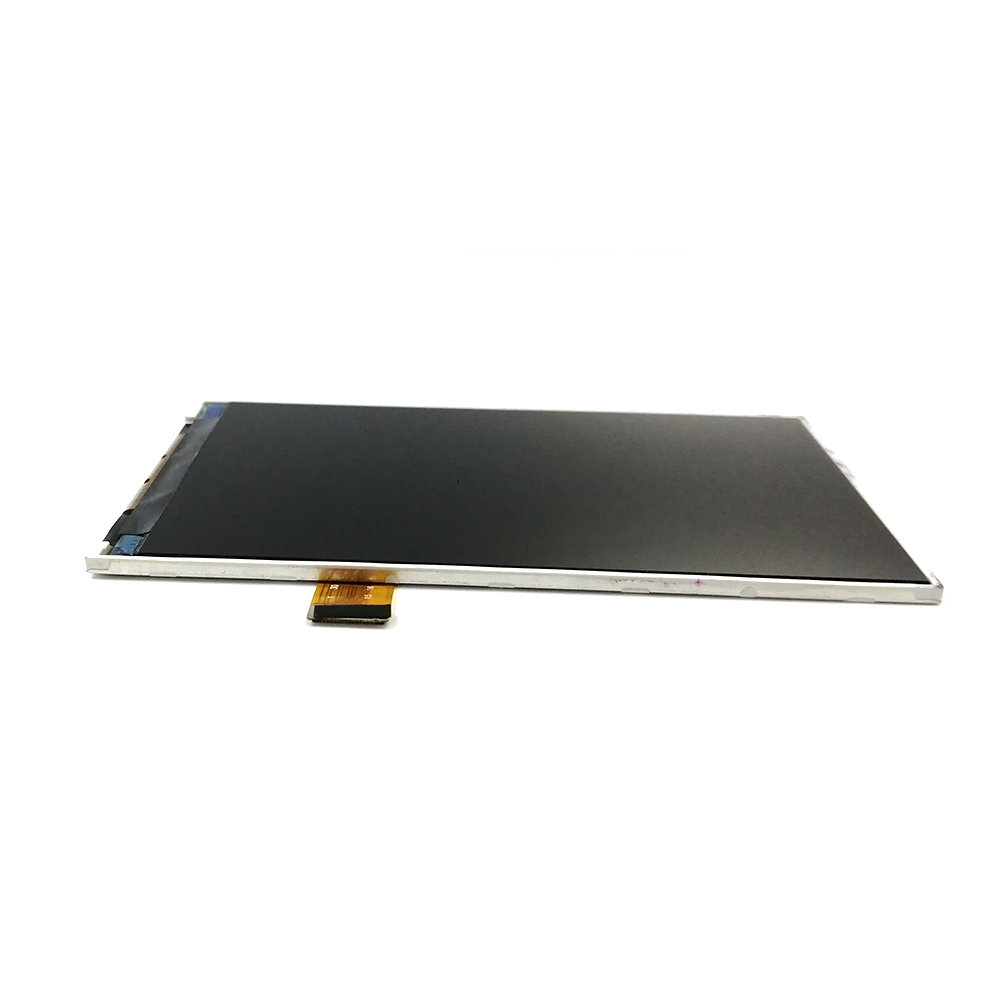

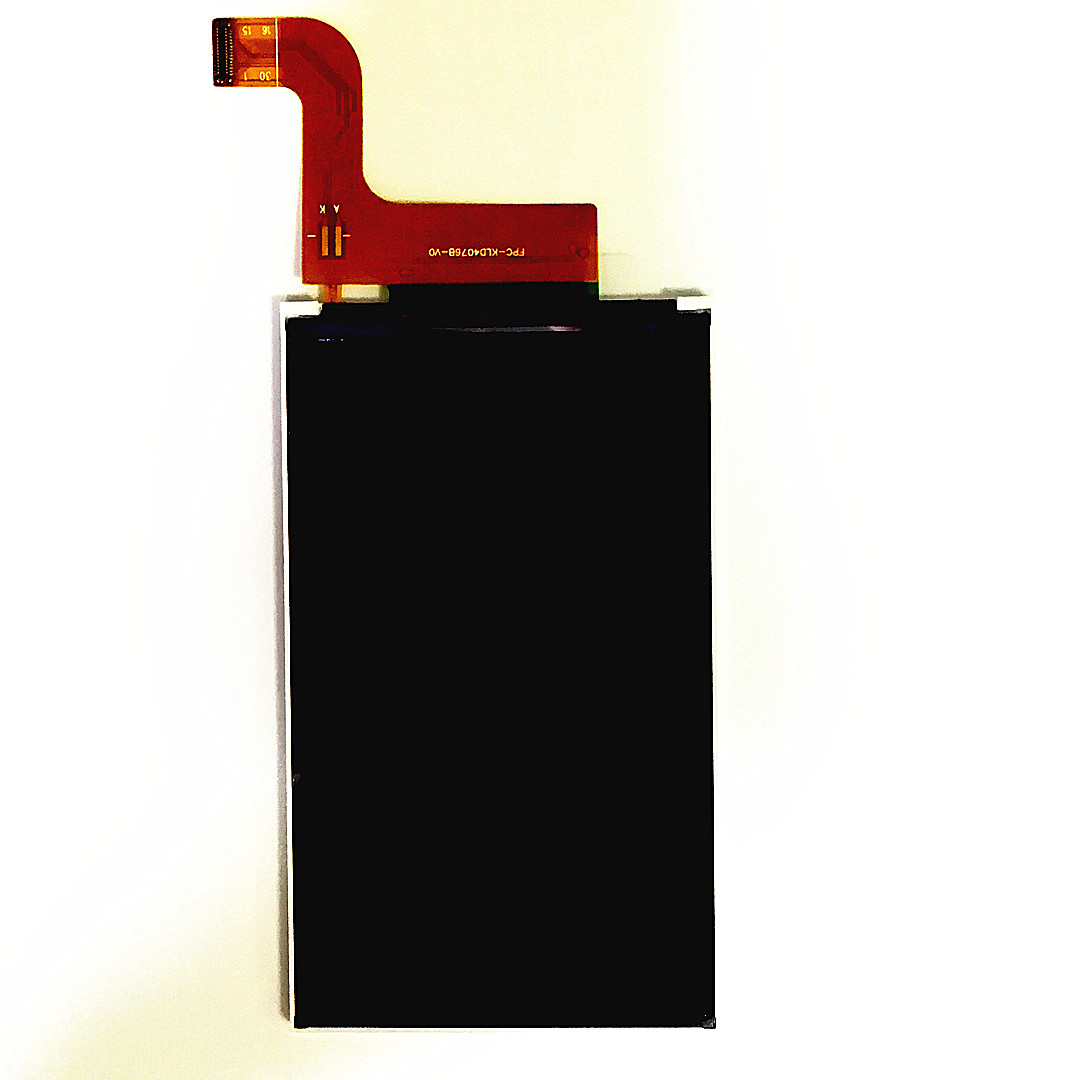

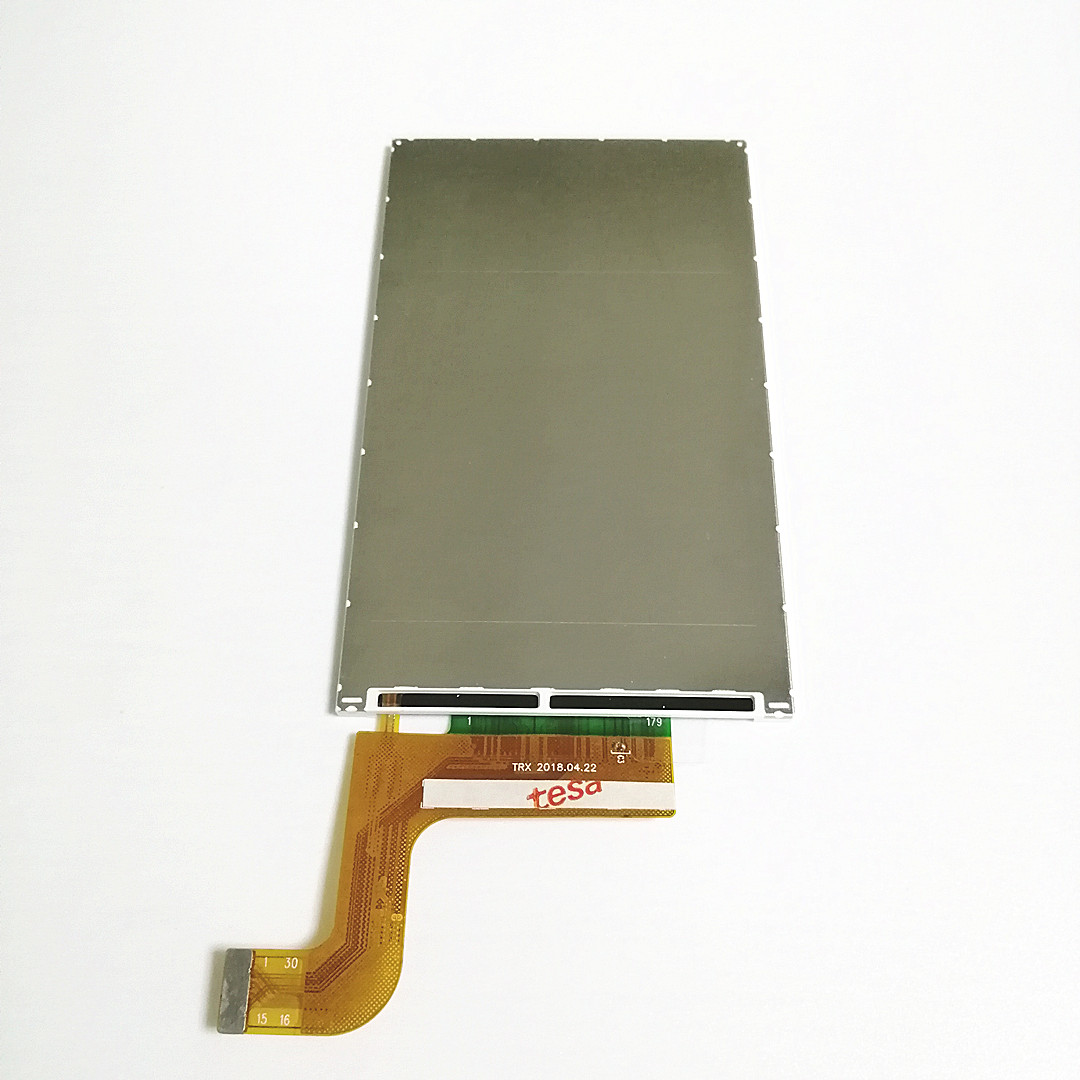

The KLD4076GNTA is a 4inch 480x800 portrait TN mode LCD module.
Features:
- Interface: MIPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
- BLU: 4*2 LED (4*LED in series and 2 groups in parallel), IBL=40mA, VBL=12.8V;
Can be designed as requirements.
- LCM outline dimension: 57.14(H)*96.85(V)*2.2(T)(mm)
Can be customized as requirements.
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

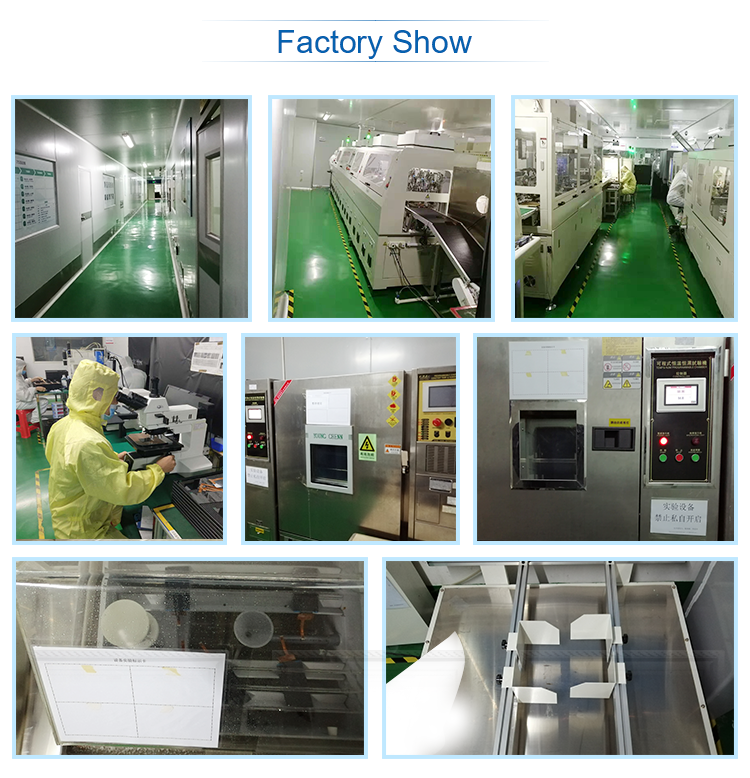

To ensure our products quality stability after shipment at customer site and market field, we do reliability test for each lot from the design-in stage to mass production shipment.
Besides, we also do aging test for each lot before shipping.
High and Low Temperature test
Sampling to do high and low temperature test for each lot before shipping.
Salt Spry test
Sampling to do salt spry test for each lot before shipping.

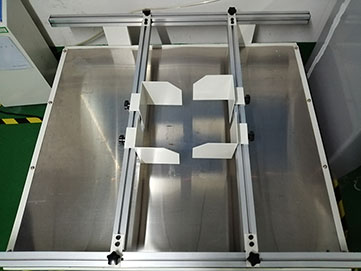

Vibration Test
Do vibration test(with packing) for each lot before shipping.
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | Brightness (cd/m2) | View direction | Storage Temprature | Touch panel |
| 2.4 | KLD24220GNTA | 240*320 | 42.72*60.26*2.25 | SPI/RGB | 300 | ALL | (-30,80) | RTP |
| 2.8 | KLD2843GNTA | 240*320 | 50.00*69.20*2.40 | MCU | 350 | ALL | (-30,80) | RTP/CTP |
| 3.5 | KLD35126GHTA | 320*480 | 55.00*84.71*2.25 | MCU | 250 | ALL | (-30,80) | RTP |
| 3.5 | KLD35121 | 320*240 | 76.90*63.90*2.15 | RGB | 250 | 12 O'Clock | (-30,80) | W/O |
| 4 | KLD4076GNTA | 480*800 | 57.14*96.85*2.20 | MIPI | 250 | 12 O'Clock | (-30,80) | W/O |
| 4 | KLD40300 | 720*720 | 75.03*79.18*2.52 | MIPI | 300 | ALL | (-30,80) | CTP |
| 4.5 | KLD4524IFMA | 480*854 | 60.00*109.00*1.85 | MIPI | 300 | ALL | (-30,80) | CTP |
| 5 | KLD50166XHMA | 720*1280 | 64.70*118.70*1.55 | MIPI | 400 | ALL | (-30,80) | CTP |
| 5.5 | KLD5558HFMC | 1080*1920 | 71.00*129.56*1.50 | MIPI | 400 | ALL | (-30,80) | CTP |
| 7 | KLD70111 | 1280*800 | 161.00*107.00*2.50 | LVDS | 300 | ALL | (-30,80) | CTP |
| 10.1 | KLD101200 | 1280*800 | 228.60*148.80*2.60 | LVDS | 400 | ALL | (-30,80) | RTP/CTP |
| 10.4 | KLD104GNX1 | 1024*768 | 236.00*176.90*5.70 | LVDS | 350 | 6 O'Clock | (-30,80) | RTP/CTP |
| 26.5 | KLD265SQ1 | 1920*1920 | 491.80*491.80*13.50 | LVDS | 300 | ALL | (-20,60) | W/O |
