320*240 MCU SPI interface tft lcd display 2.3 inch QVGA lcd screen for industrial

GST231000

minimum order

1 piece

Quantity:

$3.30 - $5.30 / piece

Contact Now

add to cart

320*240 MCU/SPI interface lcd display 2.3 inch QVGA lcd screen for industrial

Product Description

Resolution	320RGB240
LCD type	TN
Active Area	46.75*35.06
Outline dimension	50.8045.802.46
View direction	12 O'clock
Brightness	300cd/m2
Interface	MCU/SPI
Driver IC	ILI9342C
Storage Temp	(-30℃,80℃)
Touch panel	Additiona option(support RTP and CTP)

The GST231000 is a 2.3 inch 320x240 landscape TN mode LCD module.
Features:
- Interface:

MCU/SPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

4*LED in parallel, IBL=60mA, VBL=3.2V;
Can be designed as requirements.

- LCM outline dimension:

50.80(H)*45.80(V)*2.46(T)(mm)
Can be customized as requirements.

- Touch Panel
Resistive touch panel and capascitive touch panel can be optional.
Touch panel can be customized as requirement.

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.

Please contact us to provide datasheet for your checking.

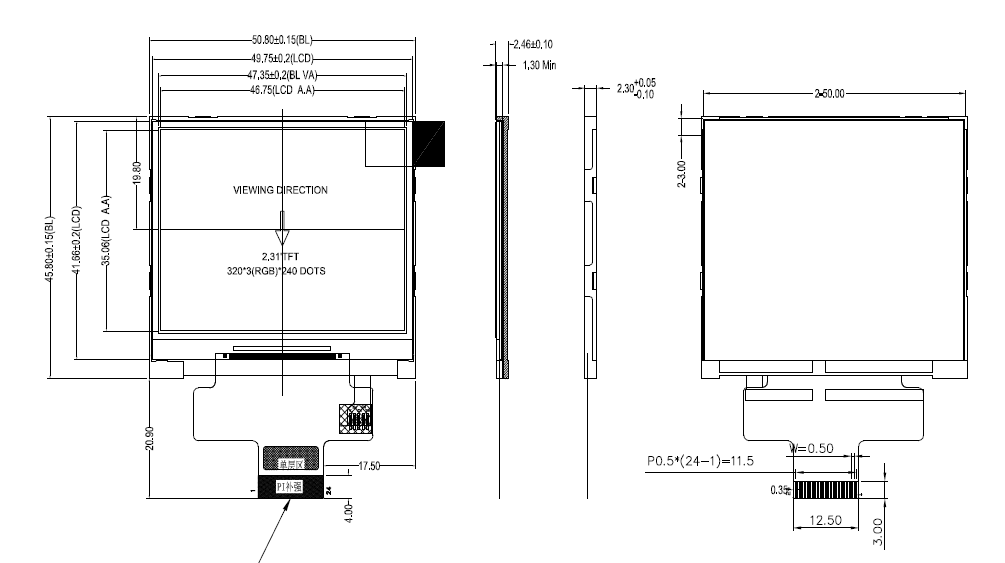

Drawing:

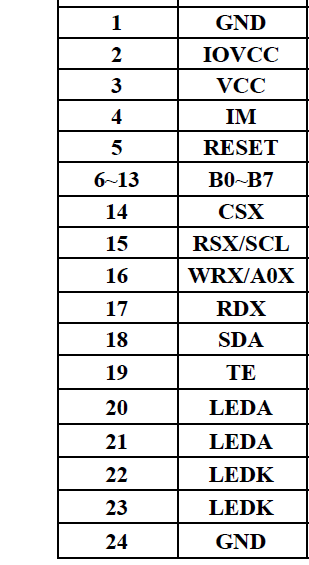

Interface connection:

Product Display

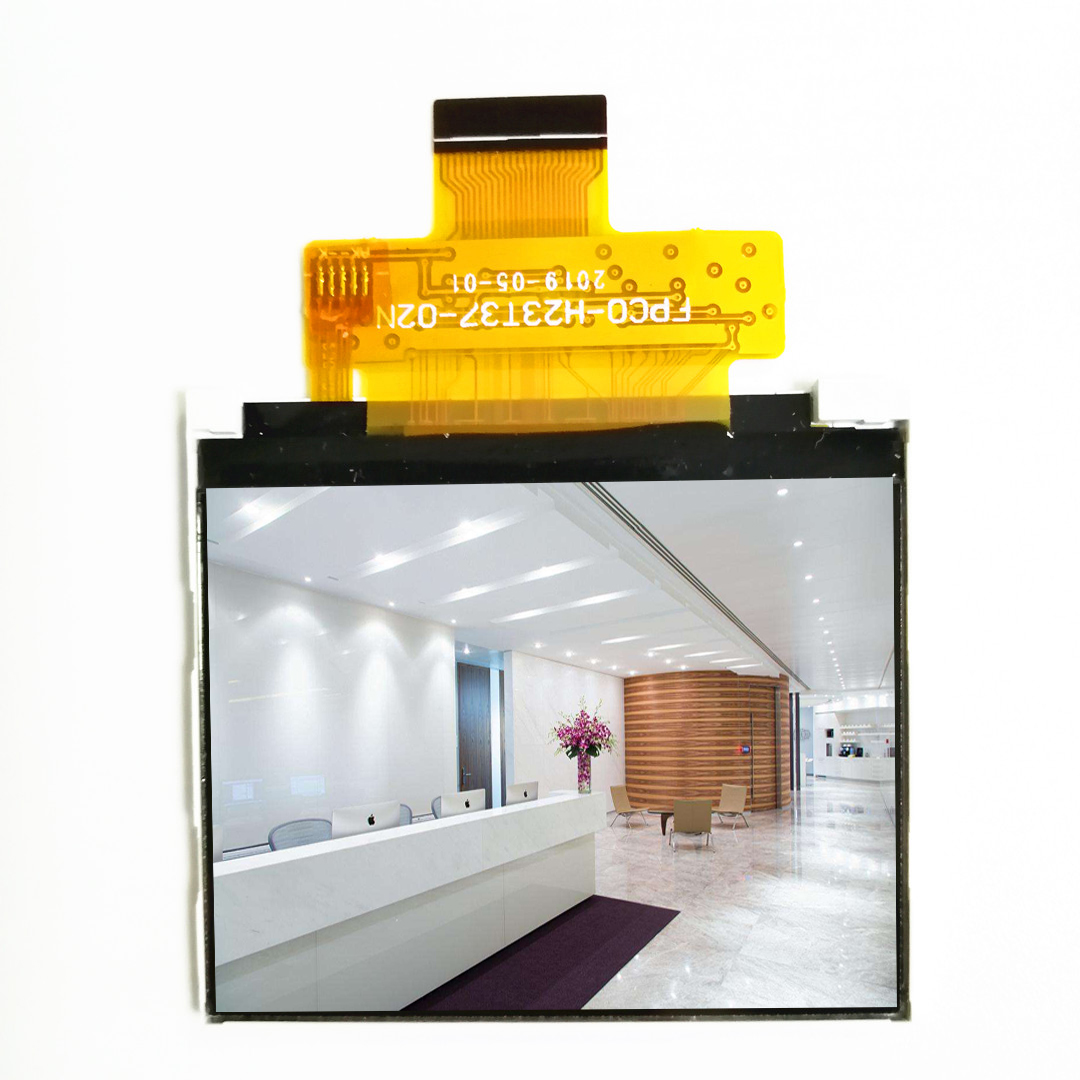

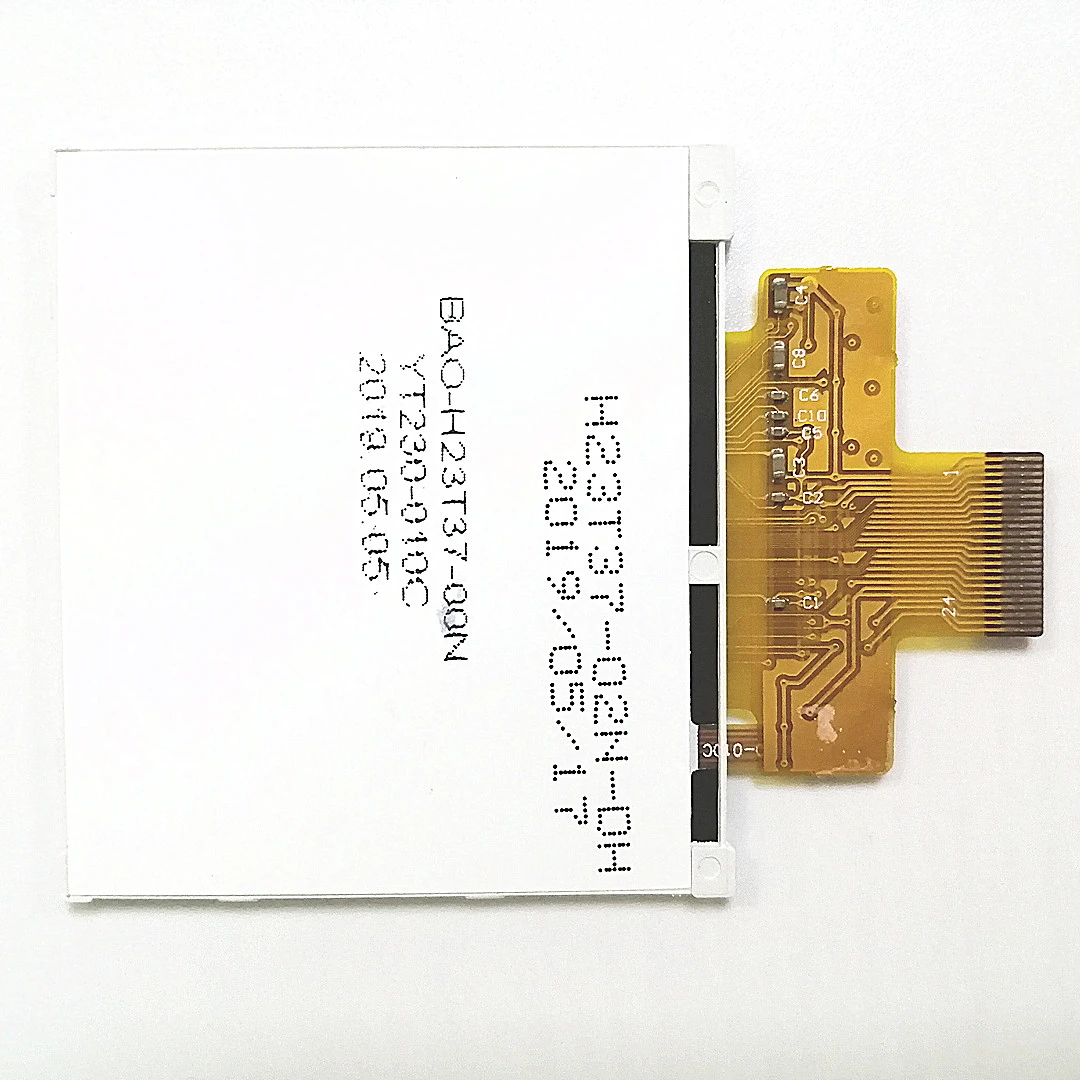

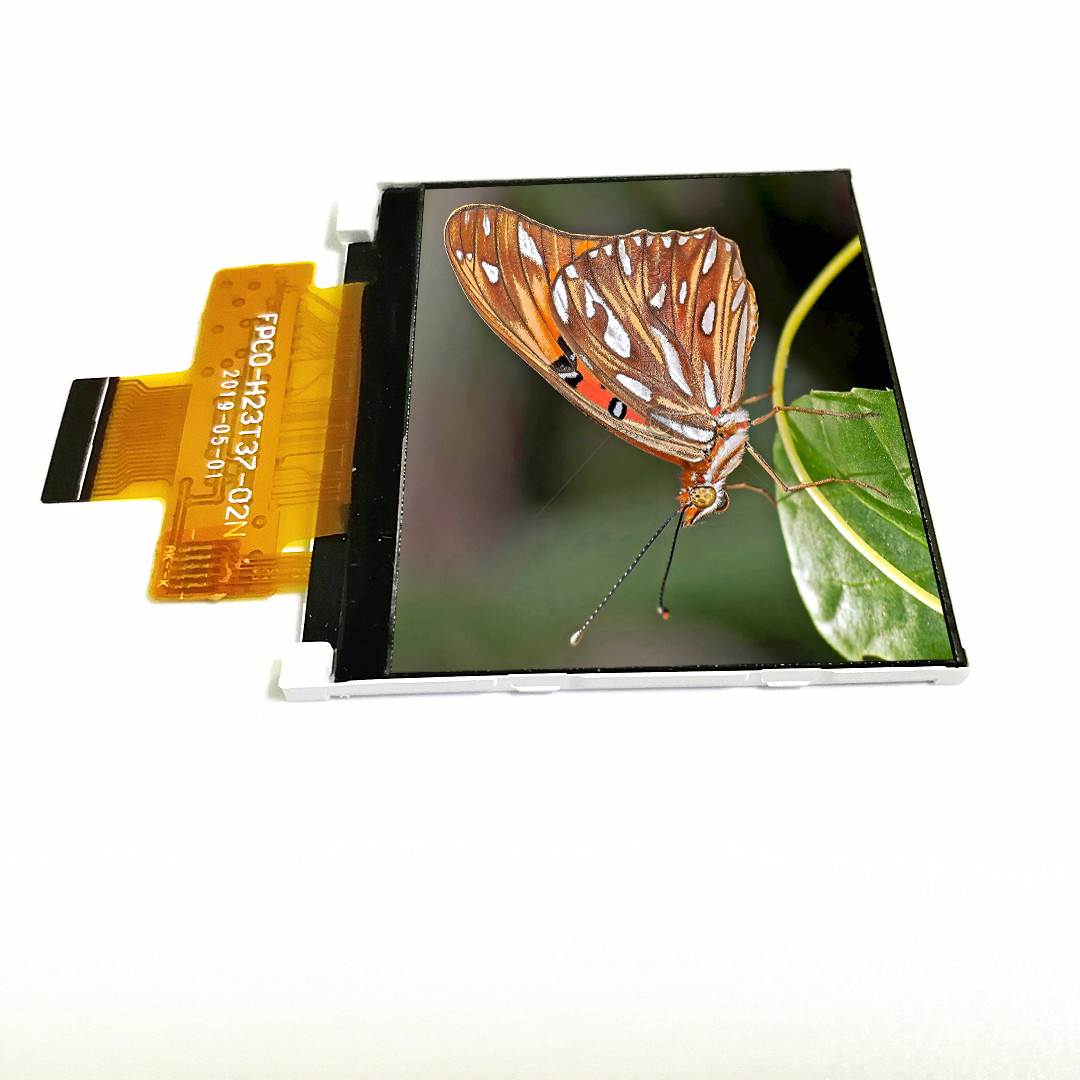

The real shot front view of 320x240 lcd module The real shot side view of 320x240 lcd module The real shot back view of 320x240 lcd module
