Hot sell industrial 320*240 MCU SPI interface 2.31 2.3 inch lcd module
- Display Size:2.31 inch
- Place of Origin:Guangdong, China
- Model Number:KLD231000
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:320*RGB*240
- LCD type:TN
- Active Area:46.75*35.06
- Outline dimension:50.80*45.80*2.46
- View direction:12 O'clock
- Brightness:300cd/m2
- Interface:MCU/SPI
- Driver IC:ILI9342C
- Storage Temp.:(-30℃,80℃)
320*240 MCU/SPI interface lcd display 2.31 inch QVGA lcd screen for industrial
| Resolution | 320*RGB*240 |
| LCD type | TN |
| Active Area | 46.75*35.06 |
| Outline dimension | 50.80*45.80*2.46 |
| View direction | 12 O'clock |
| Brightness | 300cd/m2 |
| Interface | MCU/SPI |
| Driver IC | ILI9342C |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |

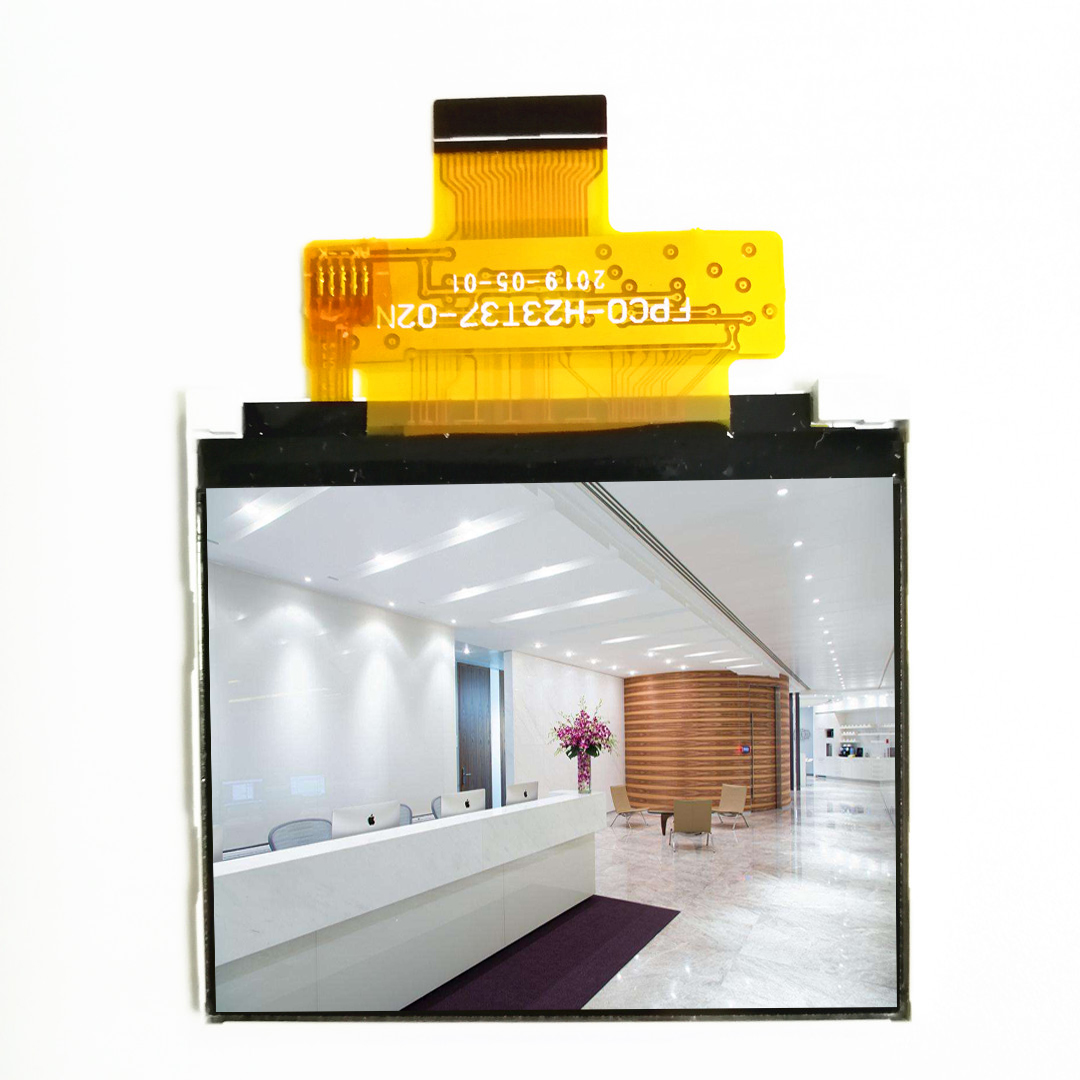

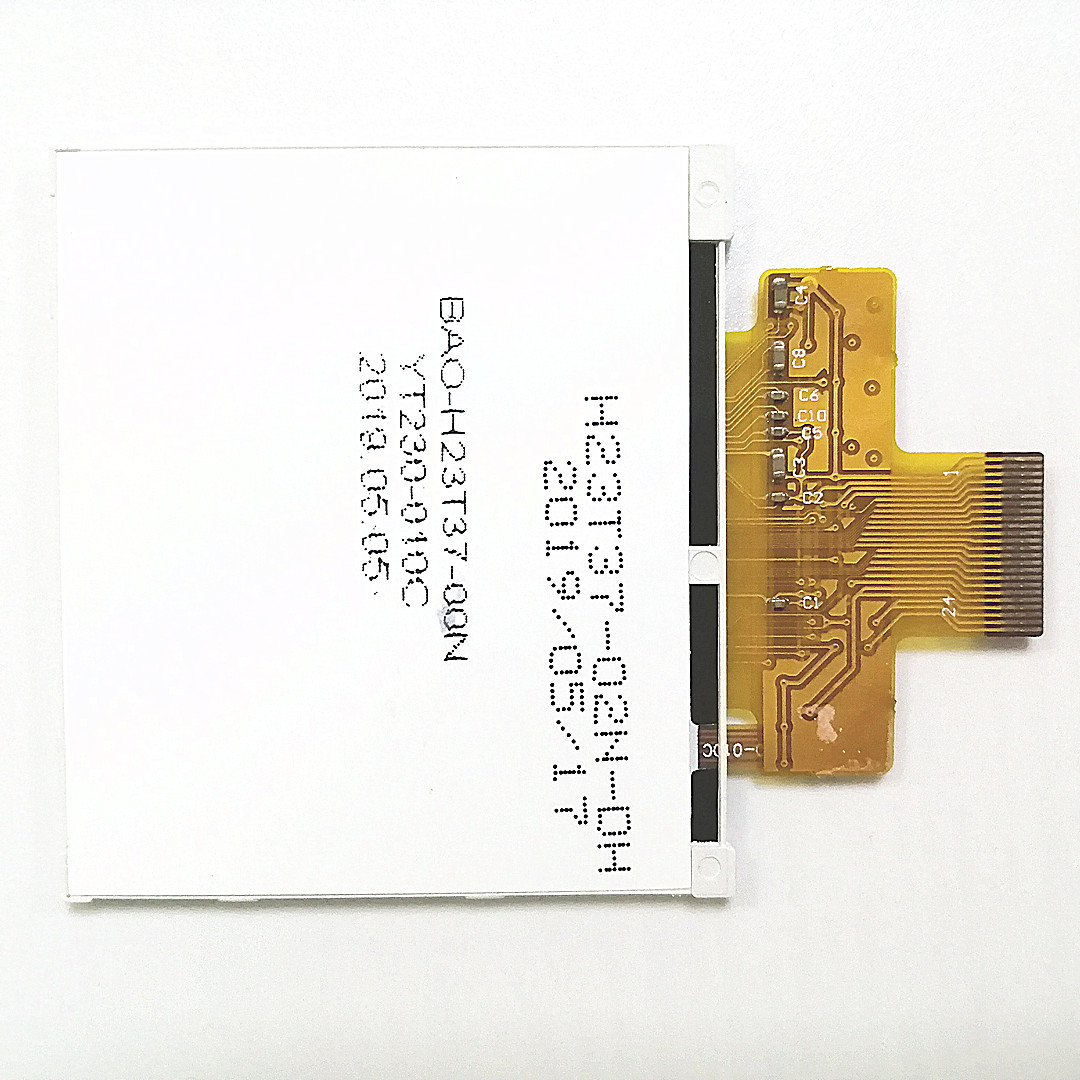

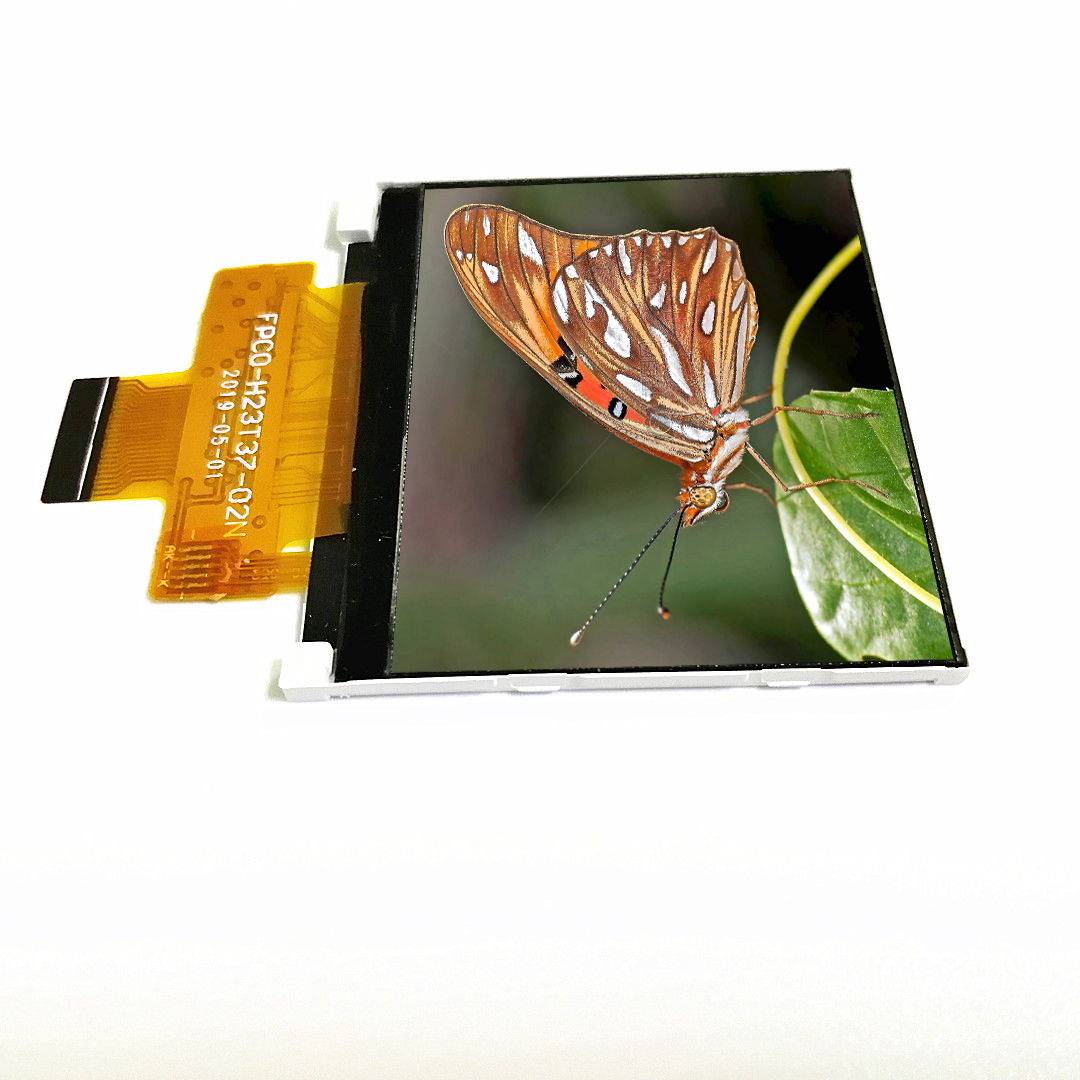

The KLD231000 is a 2.31 inch 320x240 landscape TN mode LCD module.
Features:
- Interface:
MCU/SPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
- BLU:
4*LED in parallel, IBL=60mA, VBL=3.2V;
Can be designed as requirements.
- LCM outline dimension:
50.80(H)*45.80(V)*2.46(T)(mm)
Can be customized as requirements.
- Touch Panel
Resistive touch panel and capascitive touch panel can be optional.
Touch panel can be customized as requirement.
We also have several other MP products with similar configurations,
butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.
Please contact us to provide datasheet for your checking.

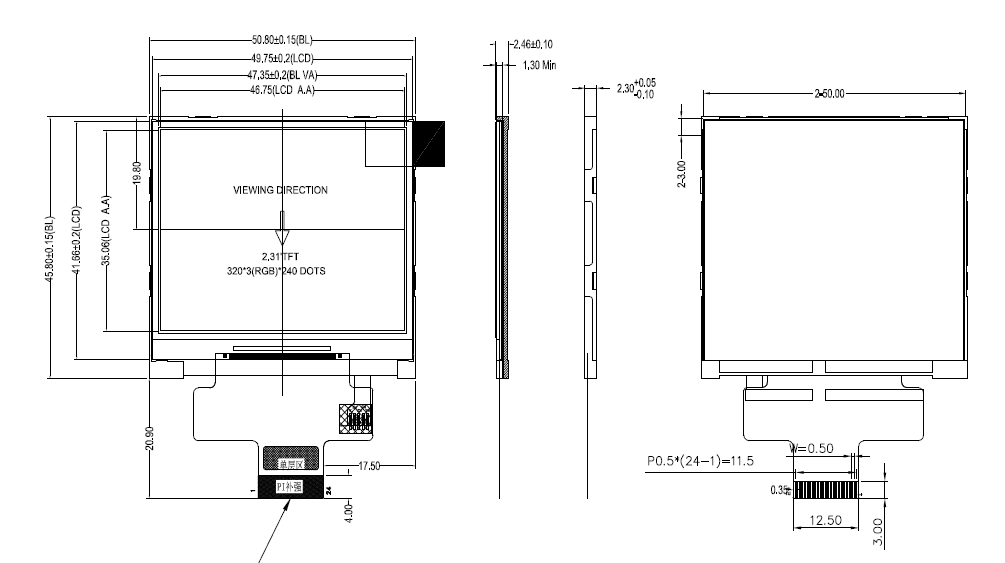

Drawing:

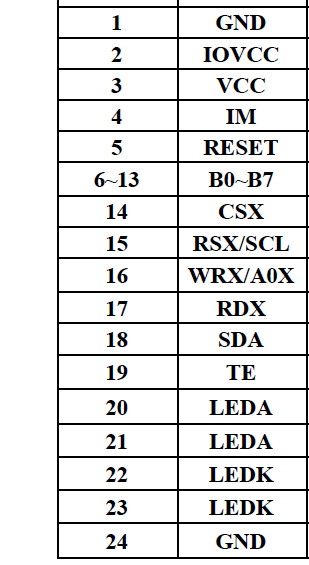

Interface connection:

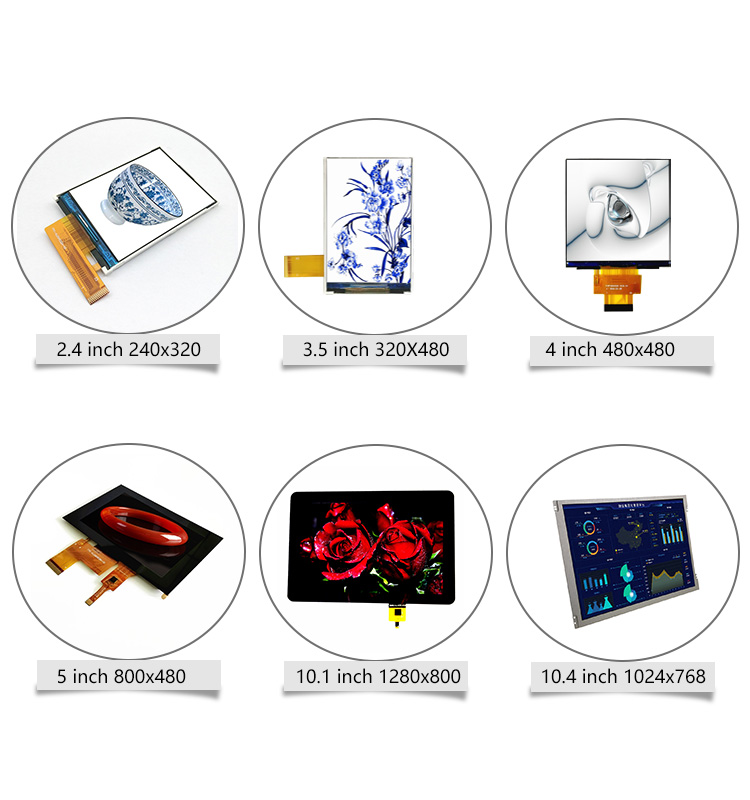

| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | View direction |
| 2.31 | KLD231000 | 320*240 | 50.80*45.80*2.46 | MCU/SPI | 12 O'Clock |
| 2.4 | KLD24229GNTA | 240*320 | 42.72*60.26*2.25 | MCU | 12 O'Clock |
| 2.4 | KLD24220GNTA | 240*320 | 42.72*60.26*2.25 | SPI+RGB/MCU | ALL |
| 2.8 | KLD2843GNTA | 240*320 | 50.00*69.20*2.40 | MCU | ALL |
| 2.8 | KLD2844CNTB | 240*320 | 50.00*69.20*2.40 | MCU | 12 O'Clock |
| 3.5 | KLD35119CNTA | 320*480 | 54.66*82.94*2.20 | MIPI | 12 O'Clock |
| 3.5 | KLD35511CHIA | 320*480 | 55.00*84.71*2.25 | MCU/SPI | ALL |
| 4 | KLD4076GNTA | 480*800 | 57.14*96.85*2.20 | MIPI | 12 O'Clock |
| 4.5 | KLD4524IFMA | 480*854 | 60.00*109.00*1.85 | MIPI | ALL |
| 5 | KLD50166XHMA | 720*1280 | 64.70*118.70*1.55 | MIPI | ALL |
| 5 | KLD50505HWIA | 800*480 | 120.70*75.80*2.95 | RGB | ALL |
| 5 | KLD50182IFIA | 480*854 | 62.56*119.30*2.05 | RGB | ALL |
| 5.5 | KLD5558HFMC | 1080*1920 | 71.00*129.56*1.50 | MIPI | ALL |
