2.8 inch 240*320 electric bike ips tft lcd screen display module
- Type:TFT
- Display Size:2.8inch
- Supplier Type:Original Manufacturer
- Place of Origin:Guangdong, China
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:240*RGB*320
- LCD type:IPS
- Active Area:43.2(V)*57.6(H)
- Outline dimension:50.0(V)*69.2(H)*2.4(T)
- View direction:All
- Brightness:350cd/m2
- Interface:MCU
- Driver IC:ST7789V
- Storage Temp.:(-30℃,80℃)
240*320 MCU interface LCD display 2.8inch QVGA IPS LCD screen for industrial
| Resolution | 240*RGB*320 |
| LCD type | IPS |
| Active Area | 43.2(V)*57.6(H) |
| Outline dimension | 50.0(V)*69.2(H)*2.4(T) |
| View direction | All |
| Brightness | 350cd/m2 |
| Interface | MCU |
| Driver IC | ST7789V |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |

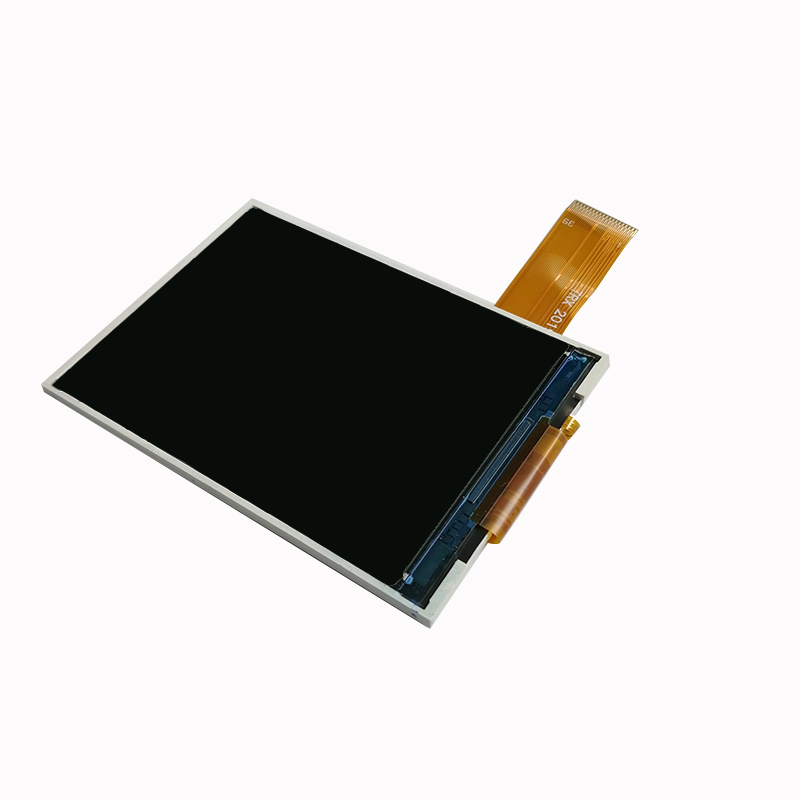

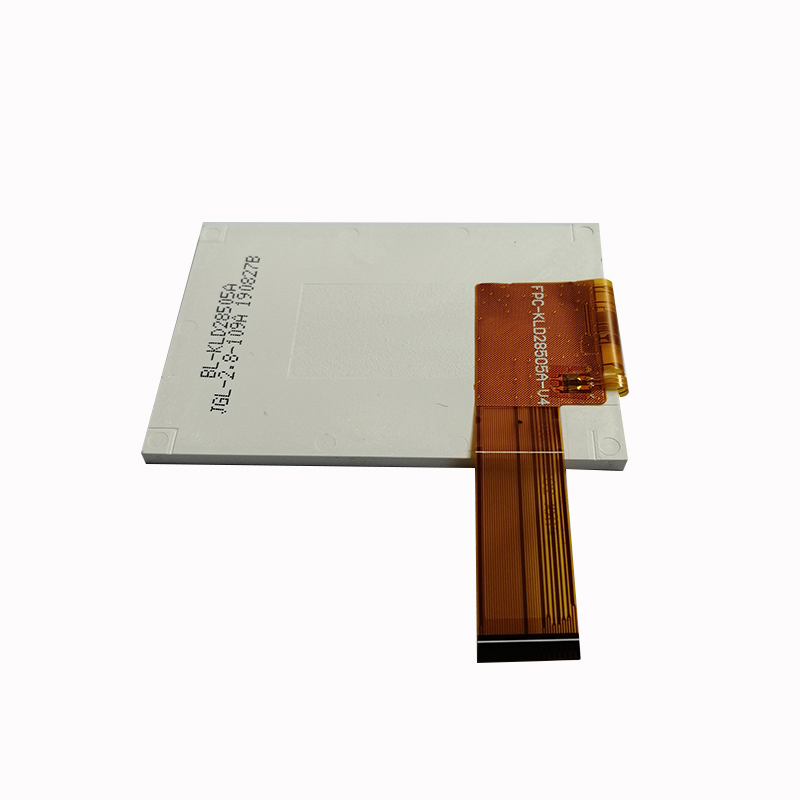

The KLD28505GNTA is a 2.8inch 240x320 portrait IPS mode LCD module.
Features:
- Interface: MCU
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
- BLU: 4*LED in parallel, IBL=80mA, VBL=3.2V;
Can be designed as requirements.
- LCM outline dimension: 50.0(H)*69.2(V)*2.4(T)(mm)
Can be customized as requirements.
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | Brightness (cd/m2) | View direction | Storage Temprature | Touch panel |
| 2.4 | KLD24220GNTA | 240*320 | 42.72*60.26*2.25 | SPI/RGB | 300 | ALL | (-30,80) | RTP |
| 2.8 | KLD2844CNTB | 240*320 | 50.00*69.20*2.40 | MCU | 350 | ALL | (-30,80) | RTP/CTP |
| 3.5 | KLD35126GHTA | 320*480 | 55.00*84.71*2.25 | MCU | 250 | ALL | (-30,80) | RTP |
| 3.5 | KLD35121 | 320*240 | 76.90*63.90*2.15 | RGB | 250 | 12 O'Clock | (-30,80) | W/O |
| 4 | KLD4076GNTA | 480*800 | 57.14*96.85*2.20 | MIPI | 250 | 12 O'Clock | (-30,80) | W/O |
| 4 | KLD40300 | 720*720 | 75.03*79.18*2.52 | MIPI | 300 | ALL | (-30,80) | CTP |
| 4.5 | KLD4524IFMA | 480*854 | 60.00*109.00*1.85 | MIPI | 300 | ALL | (-30,80) | CTP |
| 5 | KLD50166XHMA | 720*1280 | 64.70*118.70*1.55 | MIPI | 400 | ALL | (-30,80) | CTP |
| 5.5 | KLD5558HFMC | 1080*1920 | 71.00*129.56*1.50 | MIPI | 400 | ALL | (-30,80) | CTP |
| 7 | KLD70111 | 1280*800 | 161.00*107.00*2.50 | LVDS | 300 | ALL | (-30,80) | CTP |
| 10.1 | KLD101200 | 1280*800 | 228.60*148.80*2.60 | LVDS | 400 | ALL | (-30,80) | RTP/CTP |
| 10.4 | KLD104GNX1 | 1024*768 | 236.00*176.90*5.70 | LVDS | 350 | 6 O'Clock | (-30,80) | RTP/CTP |
| 26.5 | KLD265SQ1 | 1920*1920 | 491.80*491.80*13.50 | LVDS | 300 | ALL | (-20,60) | W/O |
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, we will fully support you every stages of new product introduction, from EVT -> DVT -> PVT, until mass production.
Q. How do you guarantee the quality?
A: We are qualified for a series of quality system certification(ISO9001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier’s factory audit will be done every year.
We have strict quality control inspection on our production line(FOG==>LCM==>LCM+ RTP/CTP), and strictly implement MIL-STD-105E sampling standard by QC.
Q. Could you offer OEM&ODM service?
A: Yes, we have sufficient capacity to provide OEM&ODM service.
Q: How long is your product life cycle?
A: The average life cycle of most of our products is more than 5 years.
