OEM ODM 3.5 inch 320x480 HVGA mcu interface IPS custom tft lcd touch screen display module for e-bike e-scooter

KLD35511CHIA

minimum order

1 piece

Quantity:

$9.60 - $14.10 / piece

Contact Now

add to cart

Display Size:3.5 inch
Place of Origin:Guangdong, China
Model Number:KLD35511CHIA
Brand Name:KLD
LCD Type:IPS
Resolution:320*RGB*480
Active Area:48.96(H)*73.44(V)
Outline dimension:54.46(H)*82.96(V)*2.11(T)
View direction:ALL
Brightness:200cd/m2
Interface:MCU
Driver IC:ST7796S
CTP control IC:F6236U
Storage Temp.:(-30℃,80℃)

OEM ODM 3.5 inch 320x480 HVGA mcu interface IPS custom tft lcd touch screen display module with touch panel

Product Description

Resolution	320RGB480
LCD type	IPS
Active Area	48.96(H)*73.44(V)
Outline dimension	54.46(H)82.96(V)2.11(T)
View direction	ALL
Brightness	200cd/m2
Interface	MCU
Driver IC	ST7796S
Storage Temp	(-30℃,70℃)
Touch panel	With CTP

The KLD35511GHTA is a 3.5inch 320x480 portrait IPS mode touch LCD screen.
Features:
- Interface: MCU
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)
- BLU: 6*LED in parrel. IBL=120mA, VBL=3.2V;
Can be designed as requirements.
- LCM outline dimension: 54.46(H)*82.96(V)*2.11(T)(mm)
Can be customized as requirements.
- Touch Panel
G+F capacitive touch panel, Control IC: FT6236U

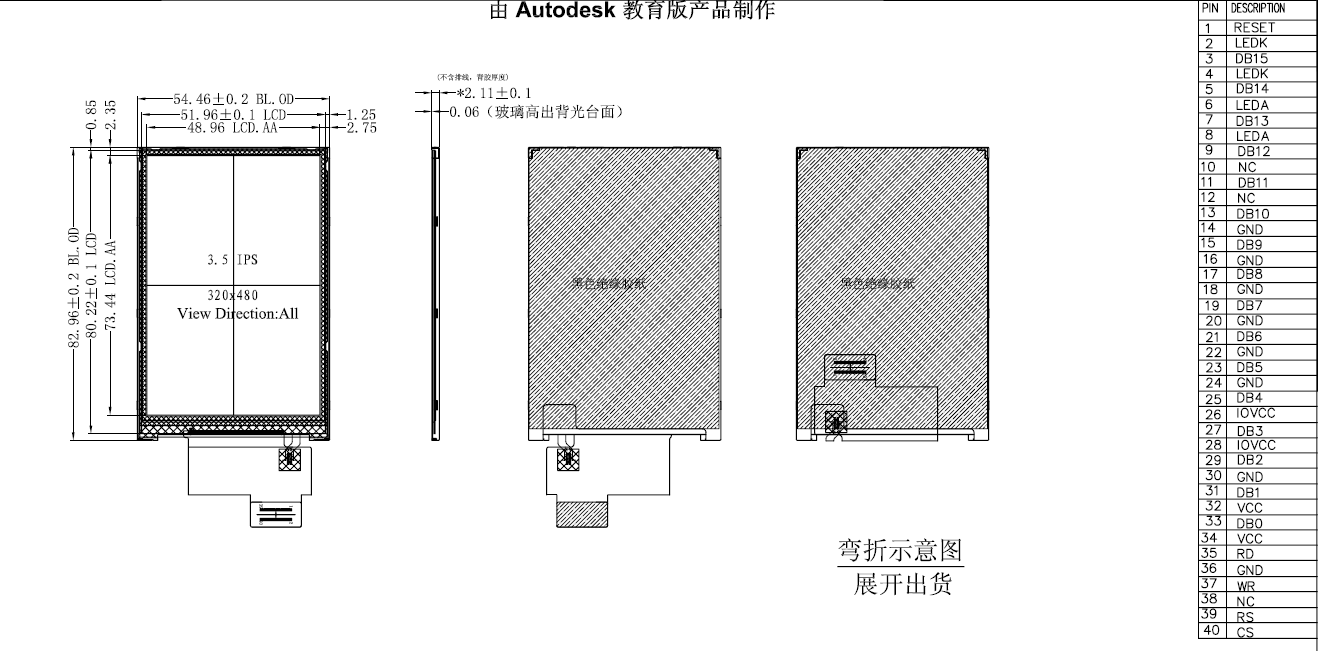

LCM Drawing and interface connection:

LCM drawing and interface connection of lcd touch screen

Product Display

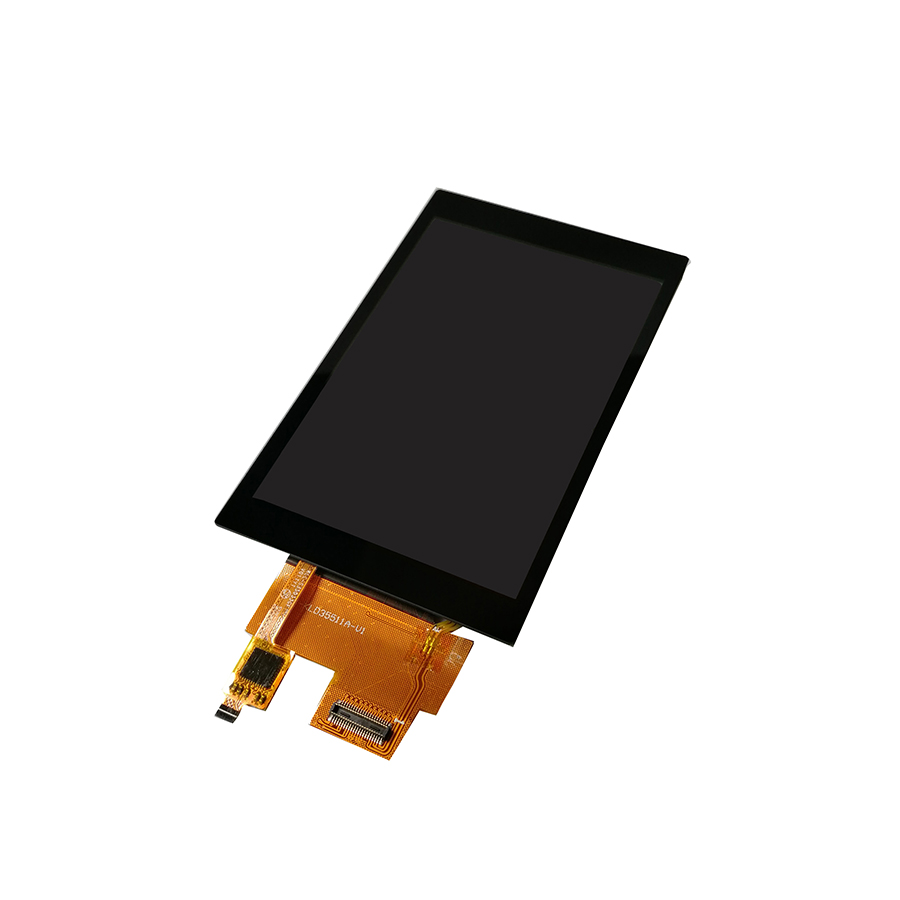

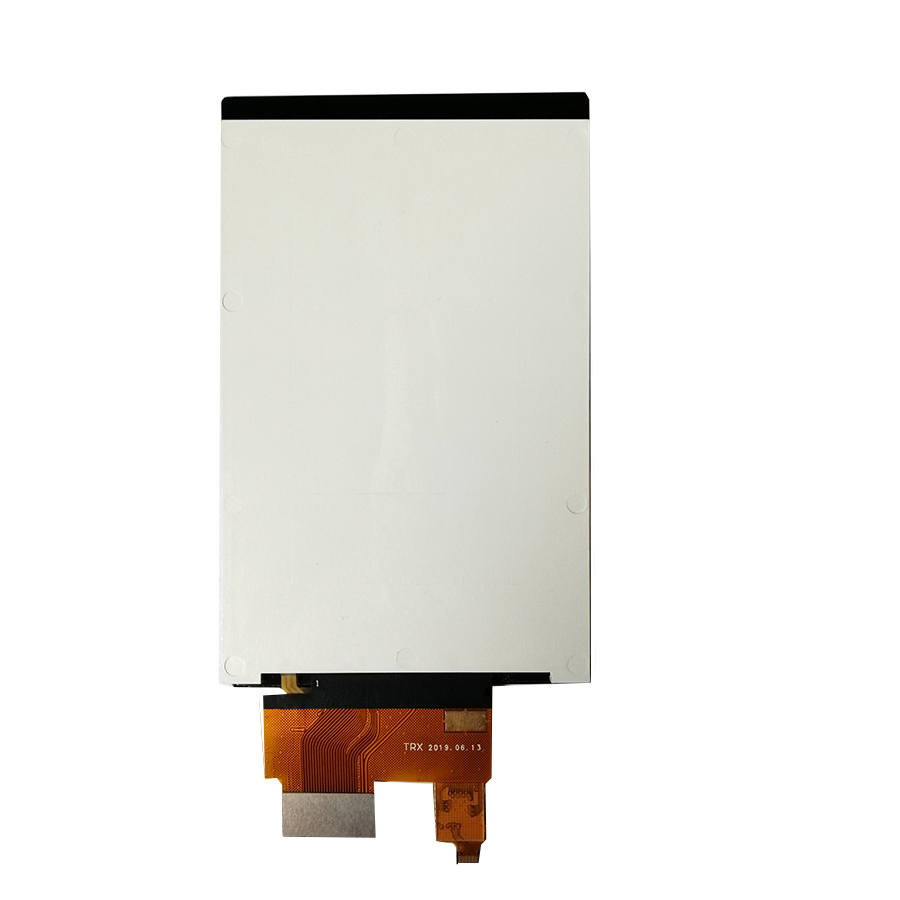

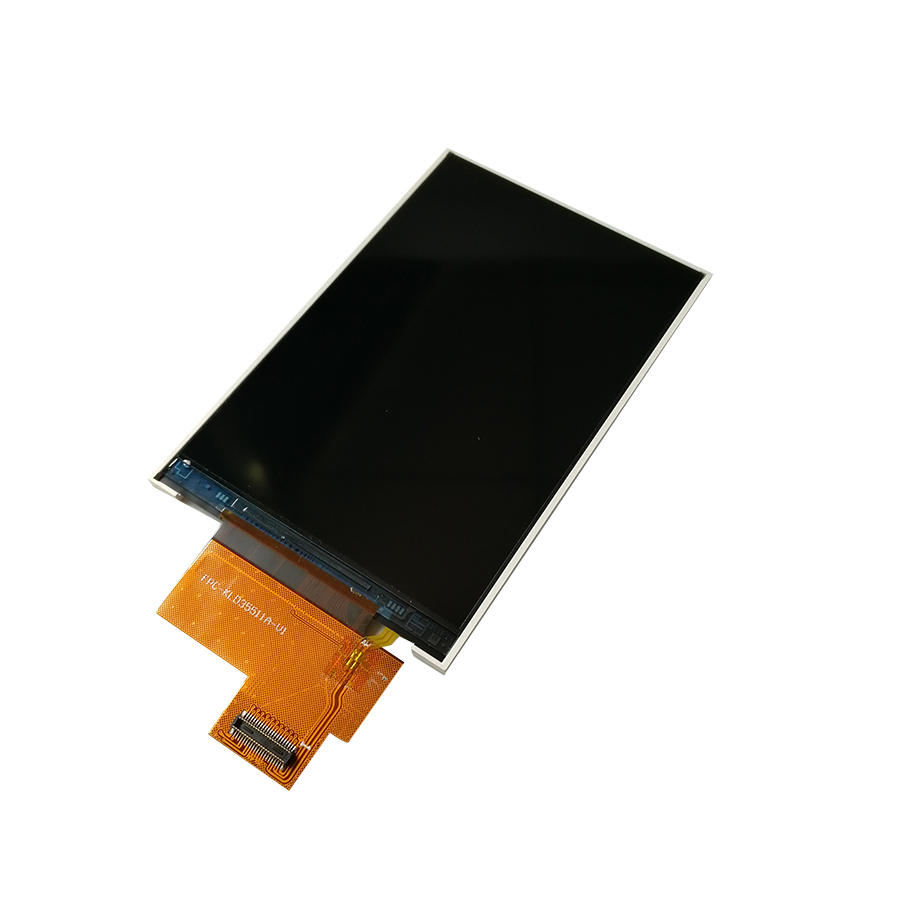

Real shot front view of lcd touch screen Real shot front view of LCM without lcd touch screen Real shot back view of lcd touch screen

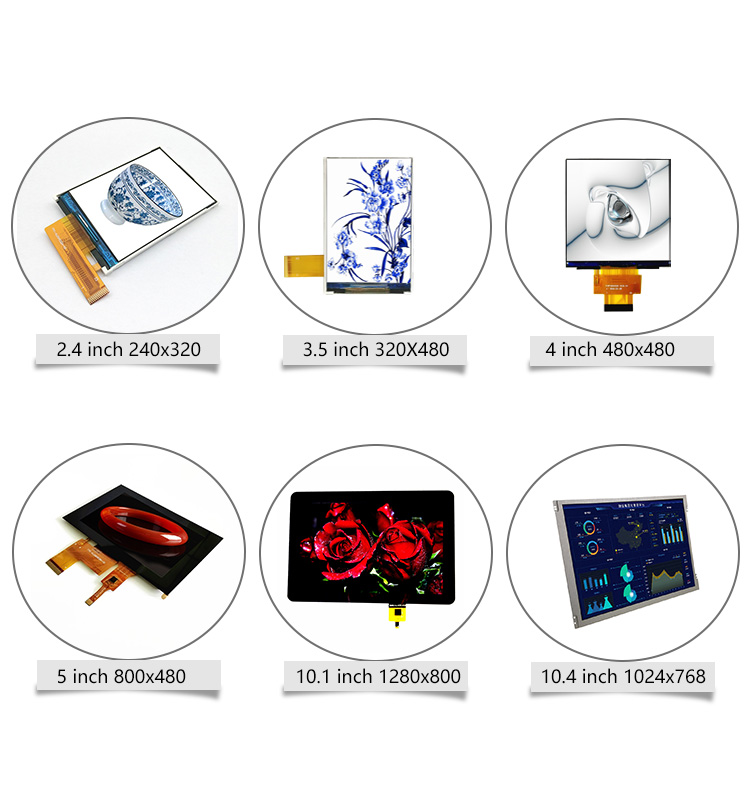

Related Products

Size	Model No.	Resolution	Outline dimension (LCM) HVT(mm)	Interface	Brightness (cd/m2)	View direction	Storage Temprature	Touch panel
2.4	KLD24220GNTA	240*320	42.7260.262.25	SPI/RGB	300	ALL	(-30,80)	RTP
2.8	KLD2843GNTA	240*320	50.0069.202.40	MCU	350	ALL	(-30,80)	RTP/CTP
3.5	KLD35119CNTA	320*480	54.6682.942.20	MIPI	250	12 O'Clock	(-30,80)	RTP/CTP
3.5	KLD35126GHTA	320*480	55.0084.712.25	MCU	250	ALL	(-30,80)	RTP
4	KLD4076GNTA	480*800	57.1496.852.20	MIPI	250	12 O'Clock	(-30,80)	W/O
4	KLD395110	480*480	75.7677.882.15	RGB/SPI	400	ALL	(-30,80)	CTP
4.5	KLD4524IFMA	480*854	60.00109.001.85	MIPI	300	ALL	(-30,80)	CTP
5	KLD50166XHMA	720*1280	64.70118.701.55	MIPI	400	ALL	(-30,80)	CTP
5.5	KLD5558HFMC	1080*1920	71.00129.561.50	MIPI	400	ALL	(-30,80)	CTP
5	KLD35126GHTA	800*480	120.7075.802.95	RGB	500	ALL	(-30,85)	With CTP
5	KLD50182IFIA	480*854	62.56119.302.05	RGB	400	ALL	(-20,70)	CTP
10.1	KLD101200	1280*800	228.60148.802.60	LVDS	400	ALL	(-30,80)	RTP/CTP
10.4	KLD104GNX1	1024*768	236.00176.905.70	LVDS	350	6 O'Clock	(-30,80)	RTP/CTP
