3.5 inch 320*240 RGB interface high quality IPS custom tft panel module screen lcd display for industrial

GSTH35B22-00Z

minimum order

1 piece

Country of Origin

Shenzhen

Quantity:

$6.50 - $9.00 / piece

Contact Now

add to cart

CTP 320*240 RGB interface lcd display 3.5inch QVGA lcd screen for industrial

Product Description

Resolution	320RGB240
LCD type	IPS
Active Area	70.00*52.56
Outline dimension	76.9063.903.25
View direction	ALL
Brightness	250cd/m2
Interface	RGB
Driver IC	ST7272
Storage Temp	(-30℃,80℃)
Touch panel	Additiona option(support RTP and CTP)

The GSTH35B22-00Z is a 3.5 inch 320x240 landscape IPS mode LCD module.
Features:

- Interface:

RGB
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

6*LED in series, IBL=20mA, VBL=19.2V;
Can be designed as requirements.

- LCM outline dimension:

76.90(H)*63.90(V)*3.25(T)(mm)
Can be customized as requirements.

- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements.

Drawing:

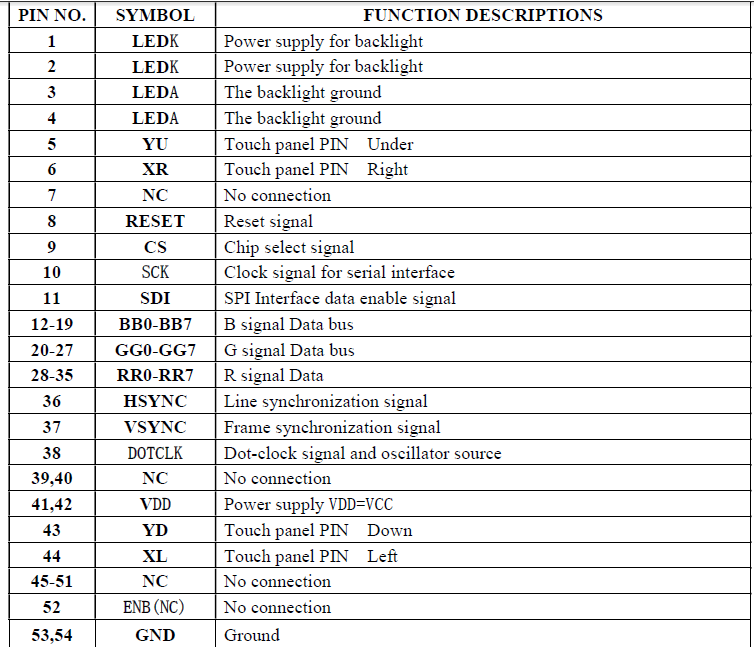

Interface:

Product Display

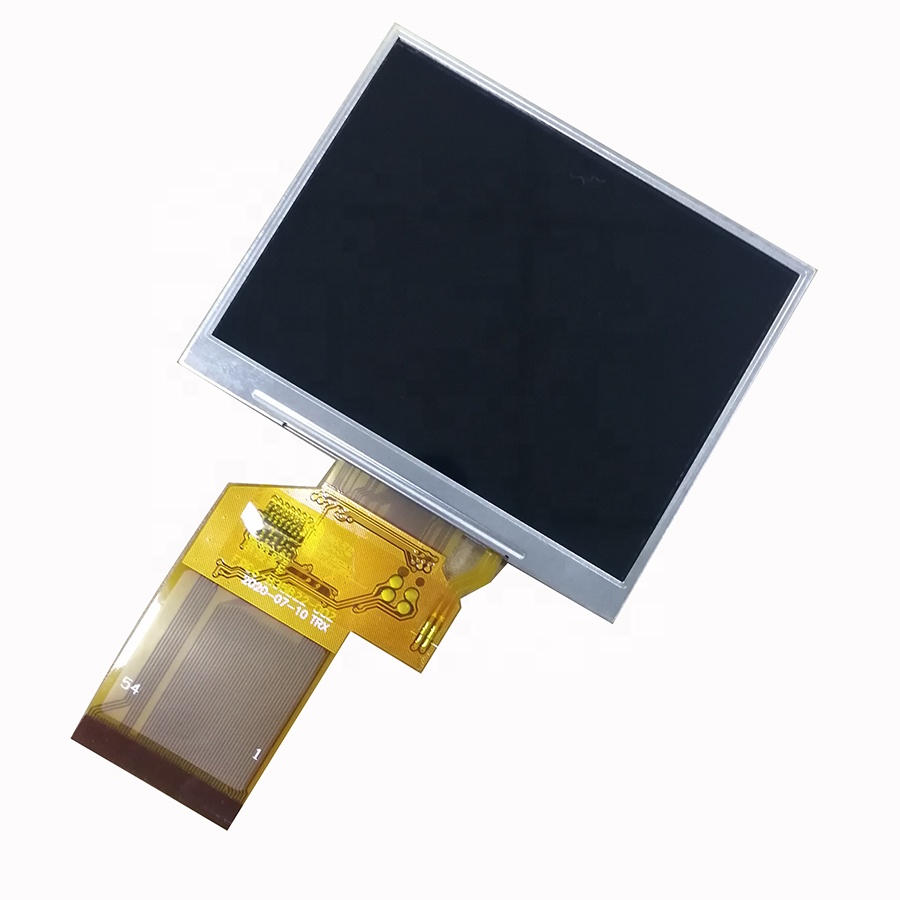

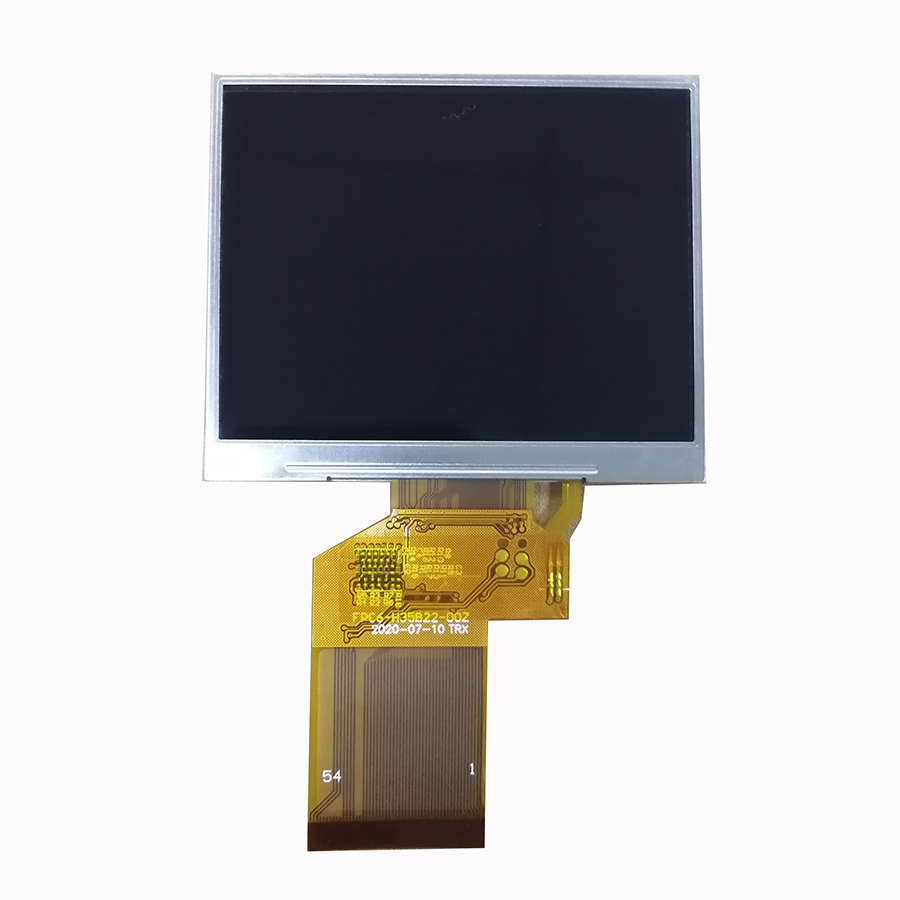

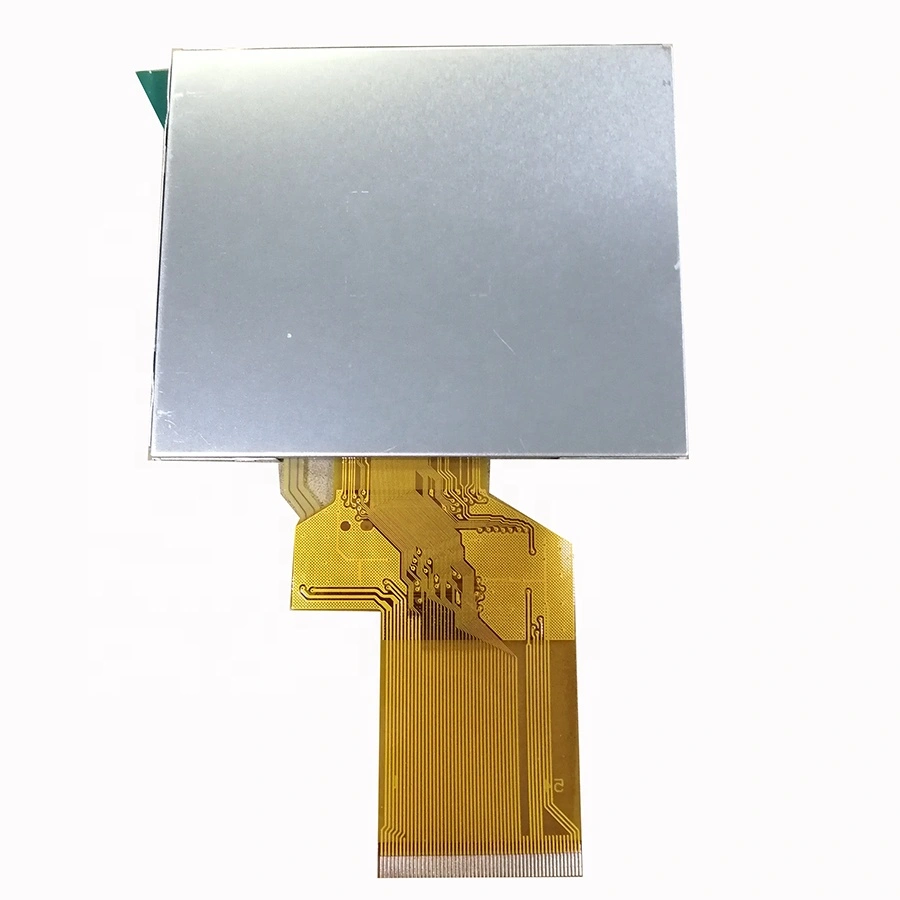

The real shot front view of Landscape display The real shot side view of Landscape display The real shot back view of Landscape display
