3.5 inch IPS LCD

With touch 3.5 inch 480*800 tft display IPS panel SPI RGB interface all free viewing angle lcd module

KLD35130BNTA

minimum order

1 piece

Country of Origin

Shenzhen/Hongkong

Quantity:

$7.50 - $10.40 / piece

Contact Now

add to cart

Type:TFT
Display Size:3.5 inch
Place of Origin:Guangdong, China
Brand Name:KLD
LCD Type:IPS
Resolution:480*RGB*800
Active Area:45.36(H)*75.60(V)
Outline dimension:51.32(H)*86.61(V)*2.20(T)
View direction:ALL
Brightness:250cd/m2
Interface:SPI/RGB
Driver IC:ST7701S
With TP or not:RTP
Storage Temp.:(-30℃,80℃)

3.5 inch 480x800 SPI RGB interface IPS lcd screen with Resistive touch panel

Product Description

Resolution	480RGB800
LCD type	IPS
Active Area	45.36(H)*75.60(V)
Outline dimension	51.32(H)86.61(V)2.20(T)
View direction	ALL
Brightness	450cd/m2
Interface	SPI / RGB
Driver IC	ST7701S
Storage Temp	(-30℃,80℃)
Touch panel	With RTP

The KLD35130BNTA is a 3.5 inch 480x800 portrait IPS mode touch LCD screen.
Features:
- Interface:

SPI / RGB(optional)
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:

7*LED in parrel. IBL=20mA, VBL=22.4V;
Can be designed as requirements.

- LCM outline dimension:

51.32(H)*86.61(V)*2.20(T)(mm)
Can be customized as requirements.

- Touch Panel
Include Resistive Touch panel.

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.

Please contact us to provide datasheet for your checking.

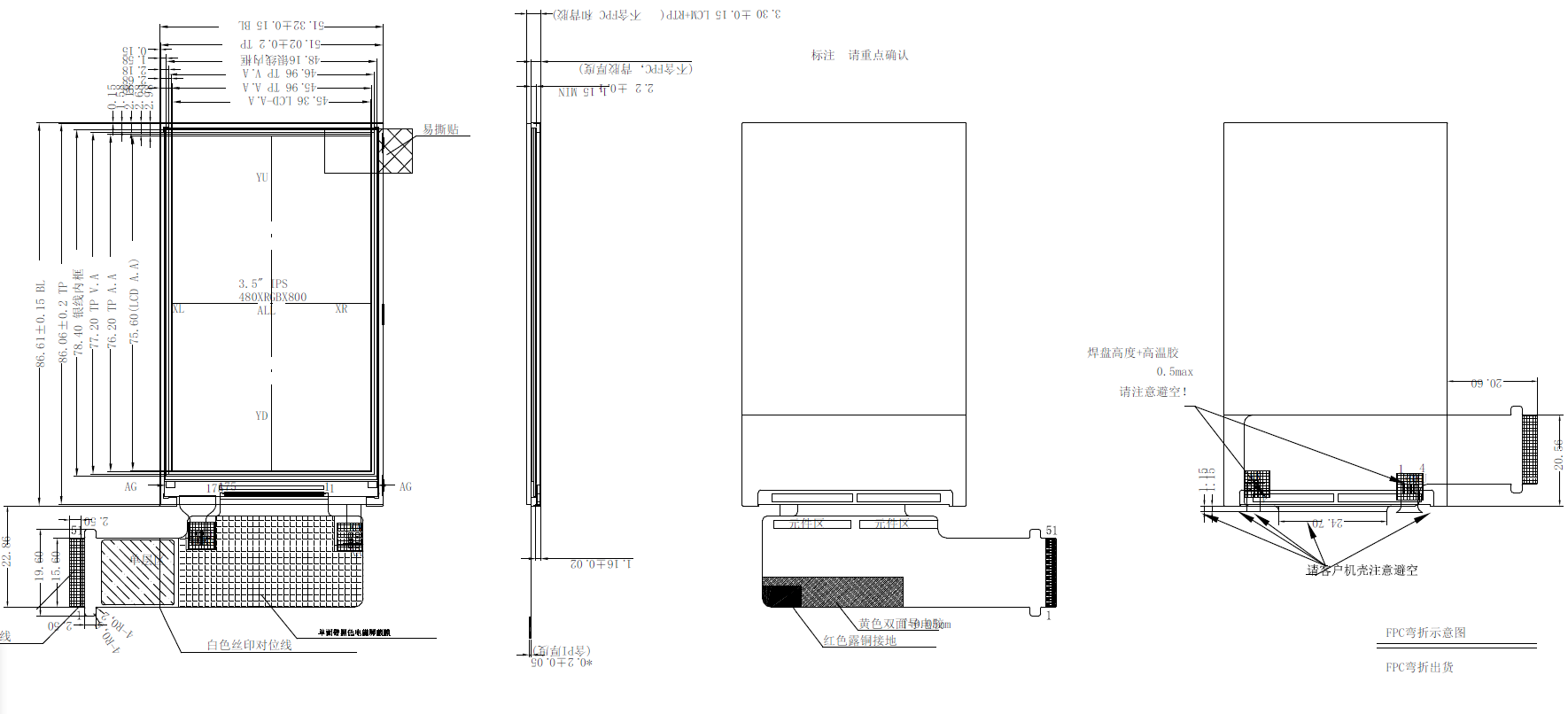

Drawing(LCM+RTP):

The drawing of 3.5 inch IPS LCD

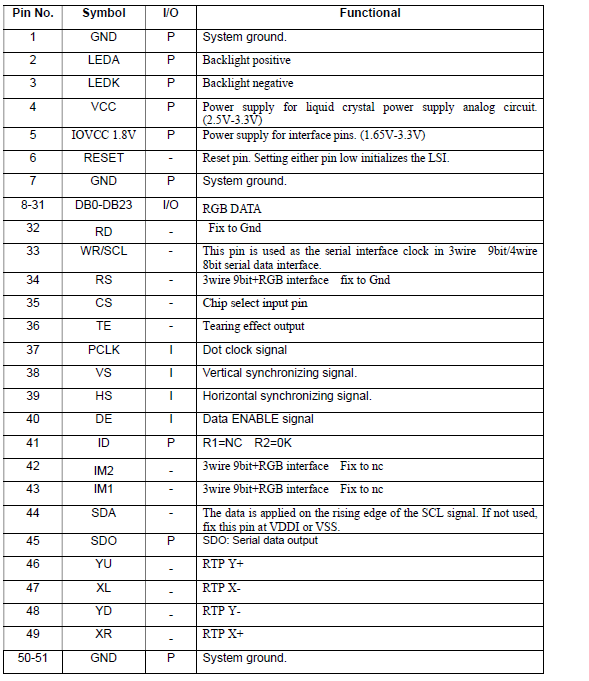

Interface connection:

Product Display

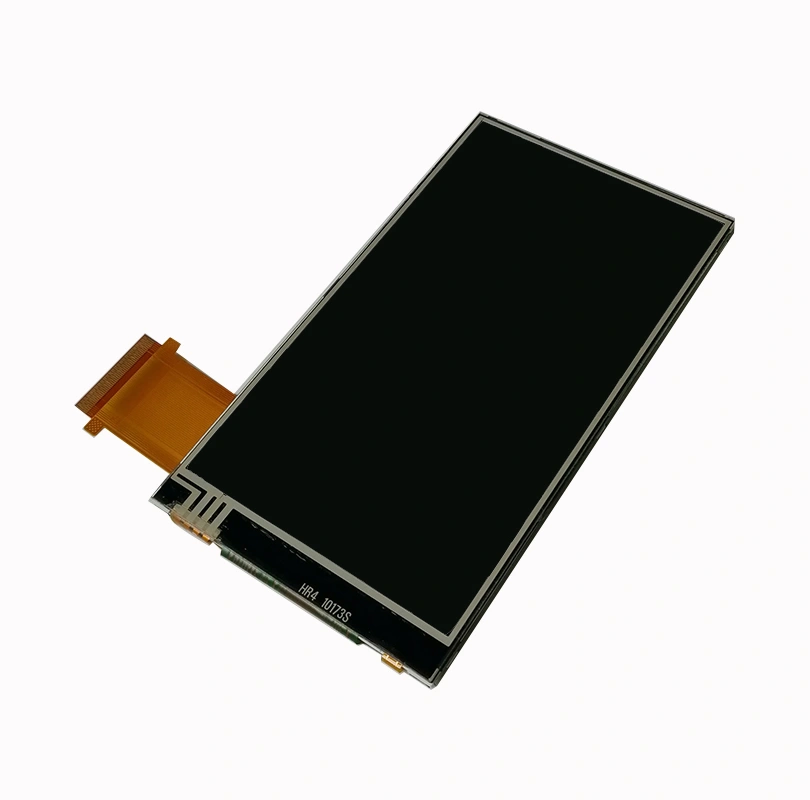

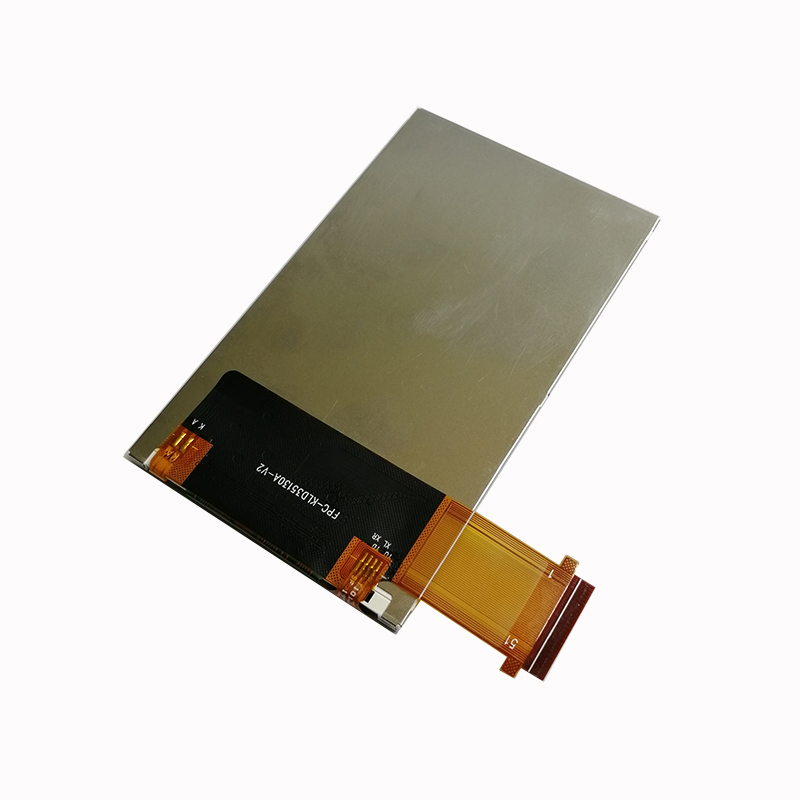

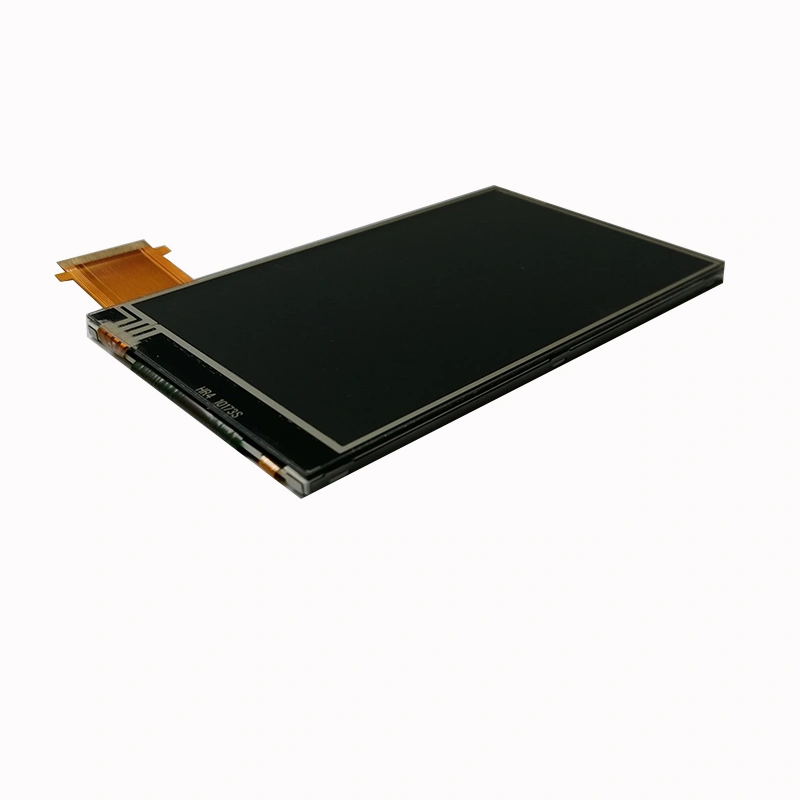

The real shot front view of 3.5 inch IPS LCD The real shot side view of 3.5 inch IPS LCD The real shot back view of 3.5 inch IPS LCD

Related Products

Size	Model No.	Resolution	Outline dimension (LCM) HVT(mm)	Interface	Brightness (cd/m2)	View direction	Storage Temprature	Touch panel
2.4	KLD24220GNTA	240*320	42.7260.262.25	SPI/RGB	300	ALL	(-30,80)	RTP
2.8	KLD2843GNTA	240*320	50.0069.202.40	MCU	350	ALL	(-30,80)	RTP/CTP
3.5	KLD35119CNTA	320*480	54.6682.942.20	MIPI	250	12 O'Clock	(-30,80)	RTP/CTP
3.5	KLD35126GHTA	320*480	55.0084.712.25	MCU	250	ALL	(-30,80)	RTP
4	KLD4076GNTA	480*800	57.1496.852.20	MIPI	250	12 O'Clock	(-30,80)	W/O
4	KLD395110	480*480	75.7677.882.15	RGB/SPI	400	ALL	(-30,80)	CTP
4.5	KLD4524IFMA	480*854	60.00109.001.85	MIPI	300	ALL	(-30,80)	CTP
5	KLD50166XHMA	720*1280	64.70118.701.55	MIPI	400	ALL	(-30,80)	CTP
5.5	KLD5558HFMC	1080*1920	71.00129.561.50	MIPI	400	ALL	(-30,80)	CTP
5	KLD35126GHTA	800*480	120.7075.802.95	RGB	500	ALL	(-30,85)	With CTP
5	KLD50182IFIA	480*854	62.56119.302.05	RGB	400	ALL	(-20,70)	CTP
10.1	KLD101200	1280*800	228.60148.802.60	LVDS	400	ALL	(-30,80)	RTP/CTP
10.4	KLD104GNX1	1024*768	236.00176.905.70	LVDS	350	6 O'Clock	(-30,80)	RTP/CTP

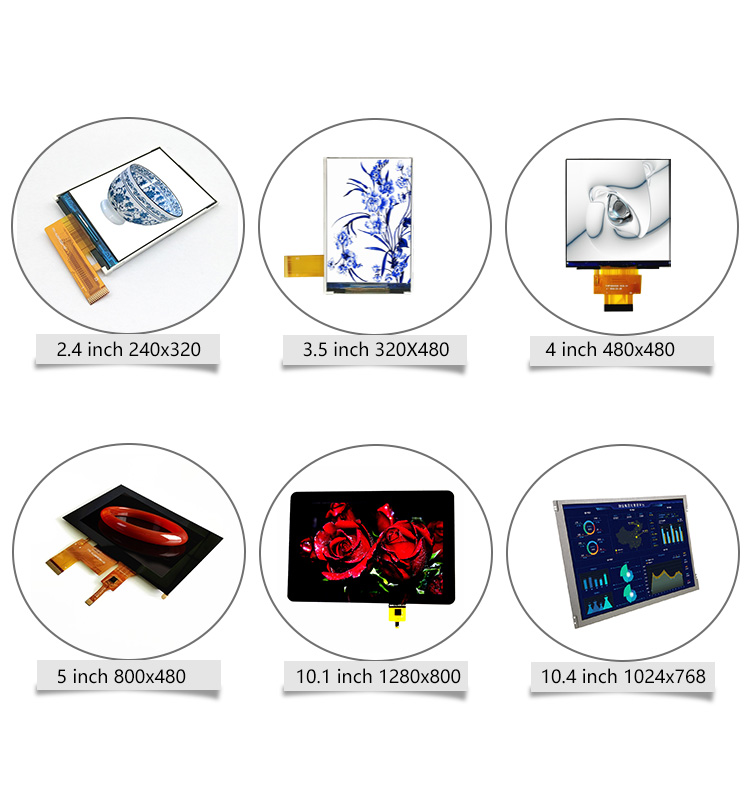

Main products
