with capacitive touch 7 inch 1024x600 IPS display panel module all free viewing angle MIPI interface tft 7.0 inch lcd screen

The KLD70507BWSIA is a 7 inch 1024*768 landscape IPS mode LCD module.
Features:

- Interface:
MIPI
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:
27 LED IBL=180mA
Can be customized as requirements.

- LCM outline dimension:
164.86(H)*99.96(V)*3.50(T)(mm)
Can be designed as requirements.

- Touch Panel
The capacitive touch panel is GFF type, which has the better anti-interference effect than others.
Control IC: Focaltech
Touch panel can be customized as requirements.

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.

Please contact us to provide datasheet for your checking.

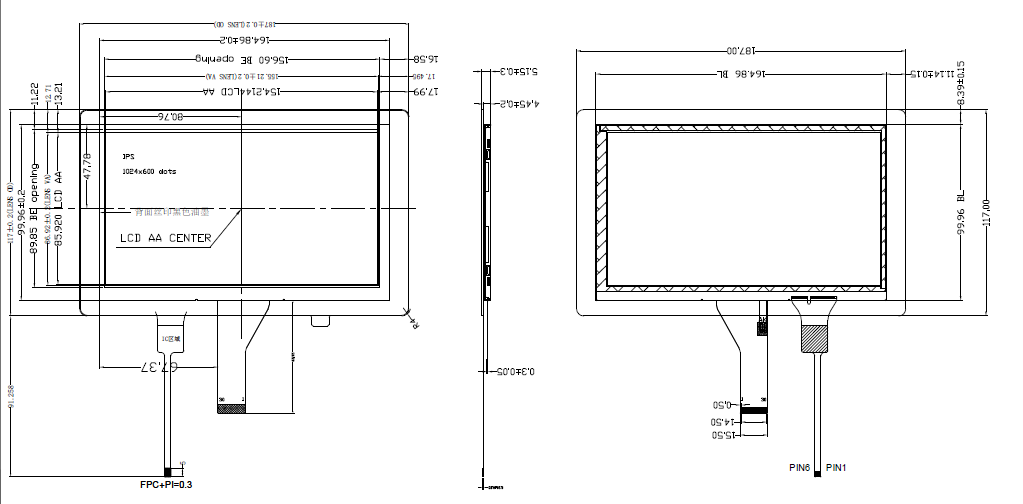

Drawing (LCM with CTP):

LCM Interface connection:

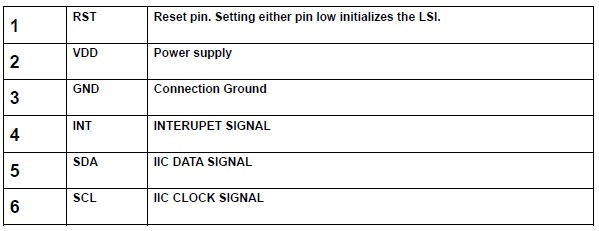

CTP Interface connection:
