7 inch 800x480 sunlight readable tft panel RGB interface 40pin display module WVGA high brightness lcd screen for industrial

The KLD07100 is a 7 inch 800*480 landscape TN mode LCD module.
Features:
- Interface:

RGB
Can de designed as customer's requirements.
(Including FPC shape and size can be customized)

- BLU:

3*9 LED (3*LED in series and 9 groups in parallel) IBL=120mA
Can be customized as requirements.

- LCM outline dimension:

164.90(H)*100.00(V)*5.70(T)(mm)
Can be designed as requirements.

- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements.


We also have several other MP products with similar configurations,
butwith different ◊interface ◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.
Please contact us to provide datasheet for your checking.

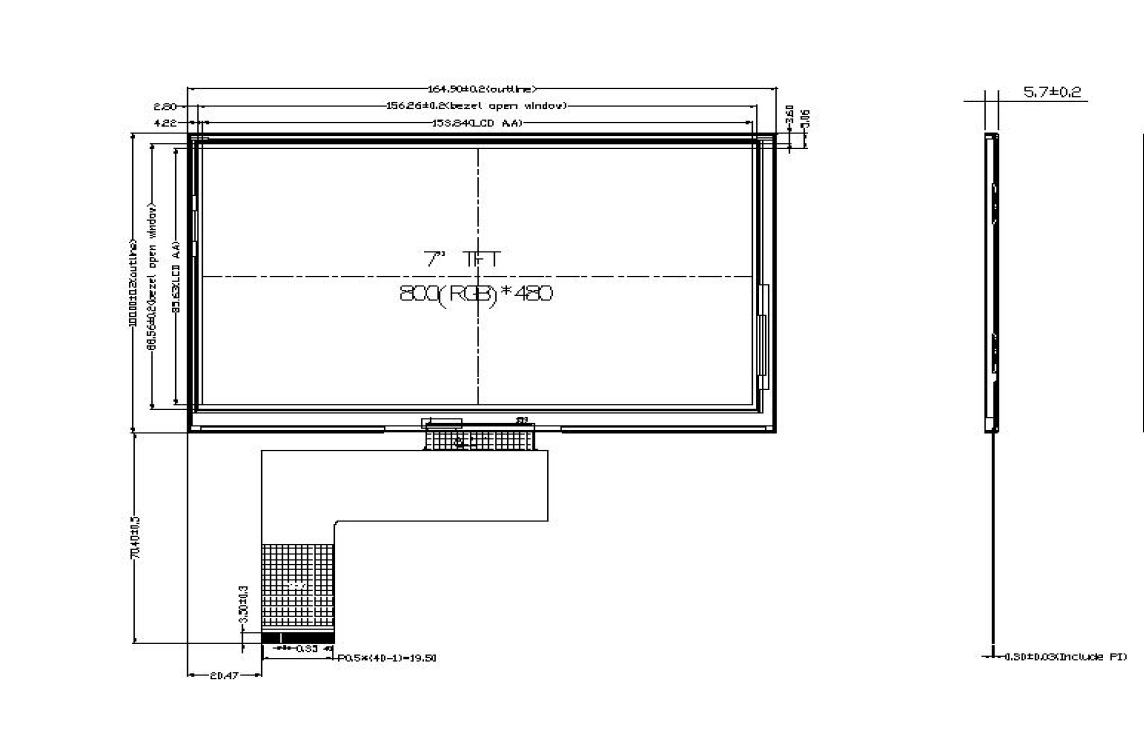

Drawing:

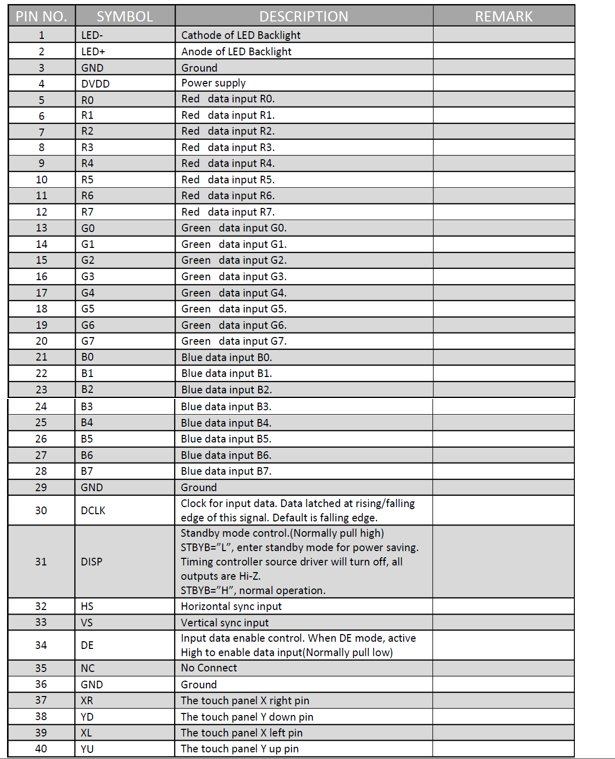

Interface connection:
