2.6 inch 240x240 square 1:1 ratio MCU SPI interface odm oem ips tft lcd panel display module lcd screen

The GSLCD-262420240 is a 2.6 inch 240x240 square IPS mode LCD module.
Features:
- Interface:

SPI MCU(optional)
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

4 LED (4*LED in parallel) IBL=80mA;
Can be designed as requirements.

- LCM outline dimension:

47.70(H)*51.35(V)*2.20(T)(mm)
Can be customized as requirements.

- Touch Panel
Capcitive touch panel is optional, touch panel can be customized as requirements.

We also have several other MP products with similar configurations,

butwith different ◊capacitive touch screen ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness◊thicknessetc.

Please contact us to provide datasheet for your checking.

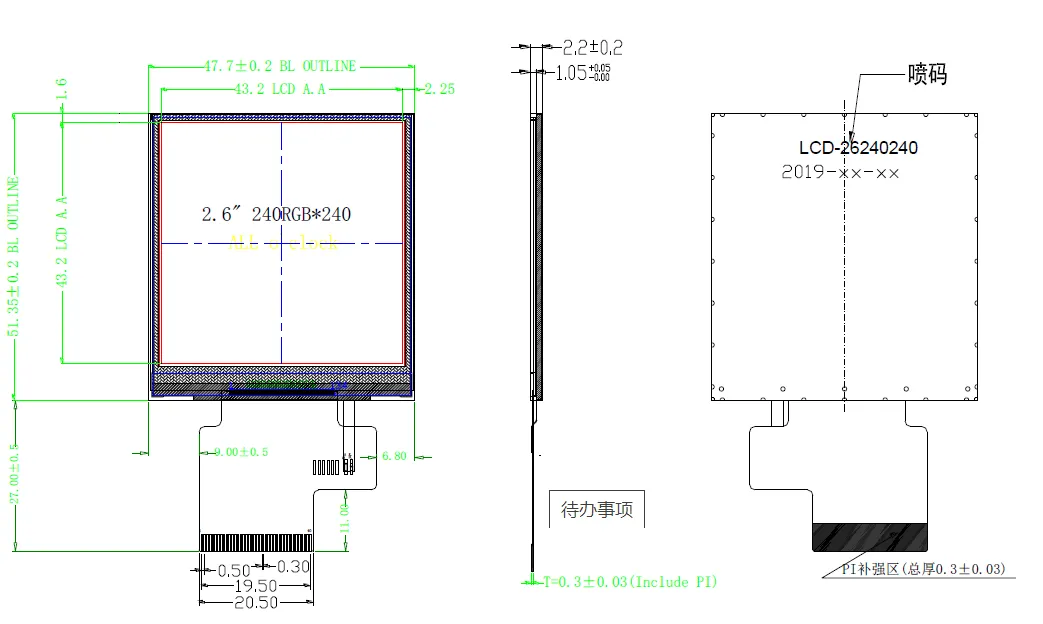

Drawing(LCM):

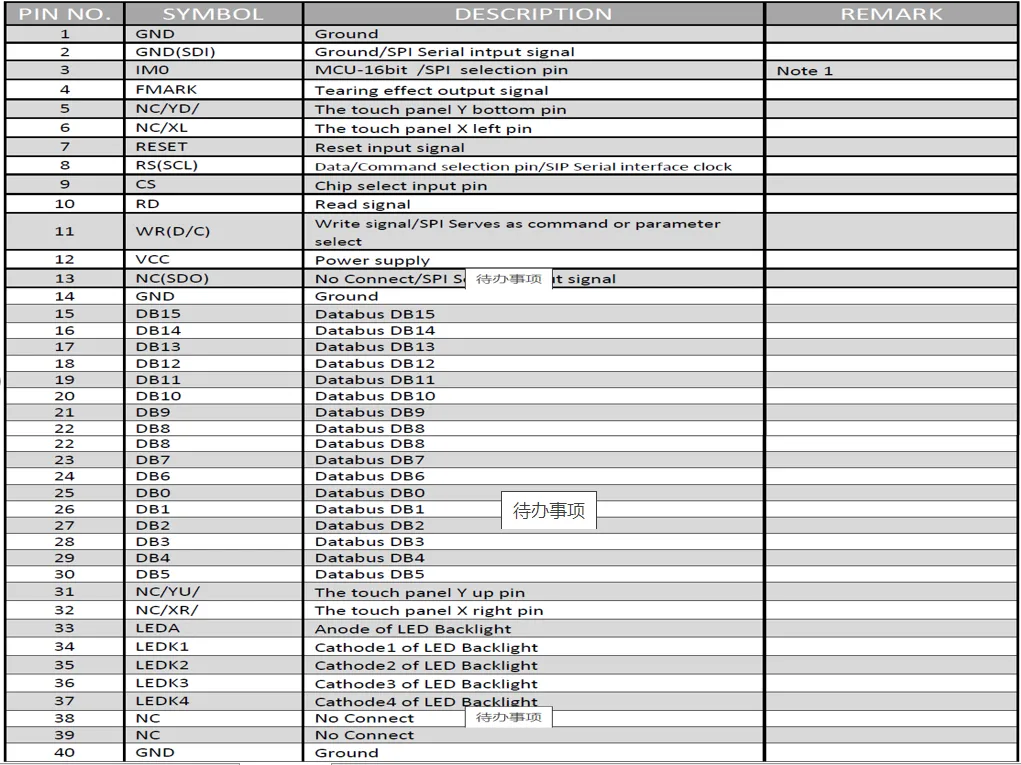

LCM Interface connection:

The product is LCD display only, refer to below picture.
