High quality series ips TFT touch screen round mipi am oled panel square mcu spi RGB edp lvds module brightness HDM LCD display

KLD40104HWIA

minimum order

1 piece

Country of Origin

Shenzhen/Hongkong

Quantity:

$37.30 - $57.60 / piece

Contact Now

add to cart

with Capacitive touch screen 4 inch 480x480 HDMI interface IPS lcd display

Product Description

The KLD40104HWIA is a 4 inch 480x480 square IPS mode LCD module.
Features:
- Interface:

SPI+RGB
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

6*2 LED (6*LED in series and 2 groups in parallel) IBL=40mA, VBL=19.8V;
Can be designed as requirements.

- LCM outline dimension:

75.76(H)*77.88(V)*2.15(T)(mm)
Can be customized as requirements.

- Capacitive Touch Panel
PCAP type,

Support Multi touch,

I2C interface,

Controller IC: GT1151Q

OCA assembly.

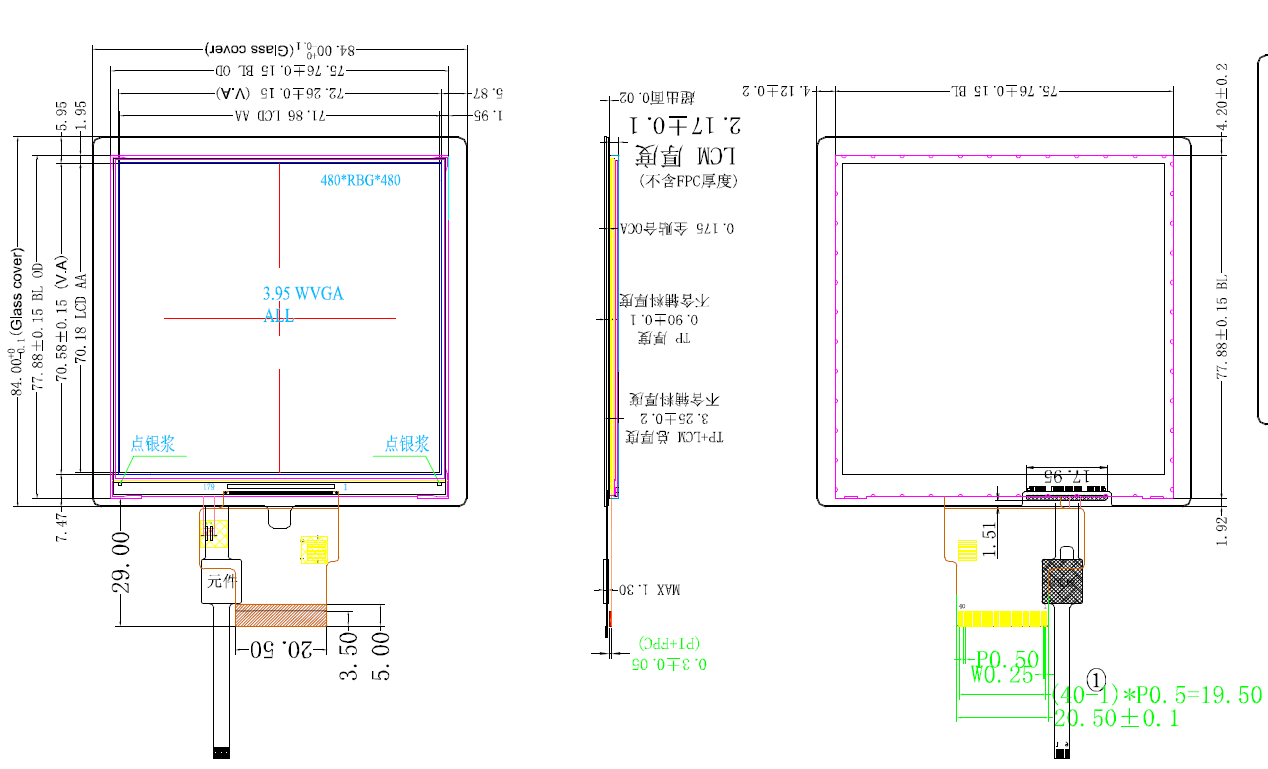

Drawing(LCM+CTP):

The drawing (LCM+CTP) of am oled square panel

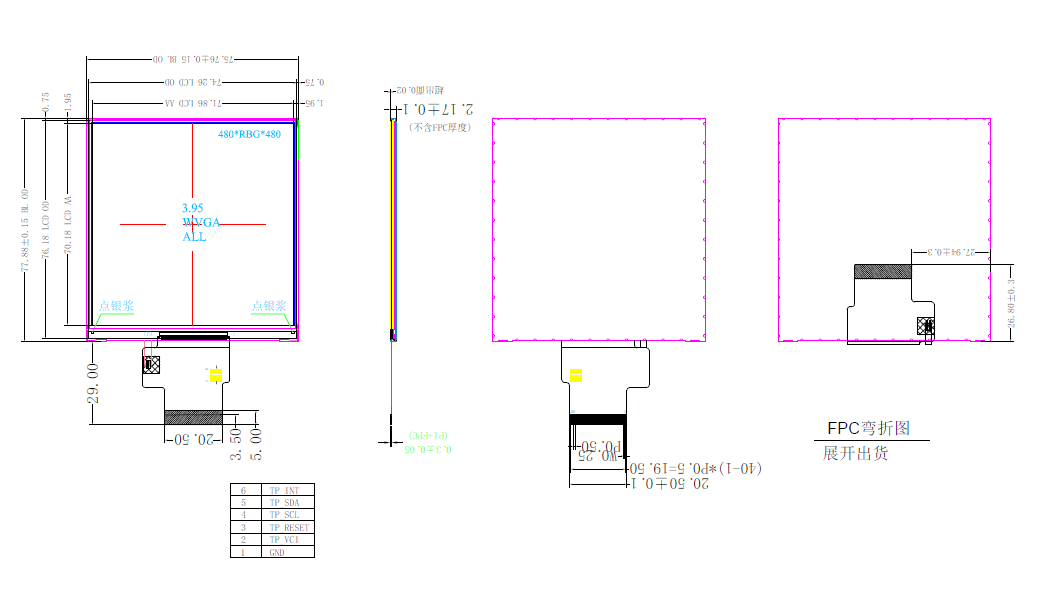

Drawing(LCM):

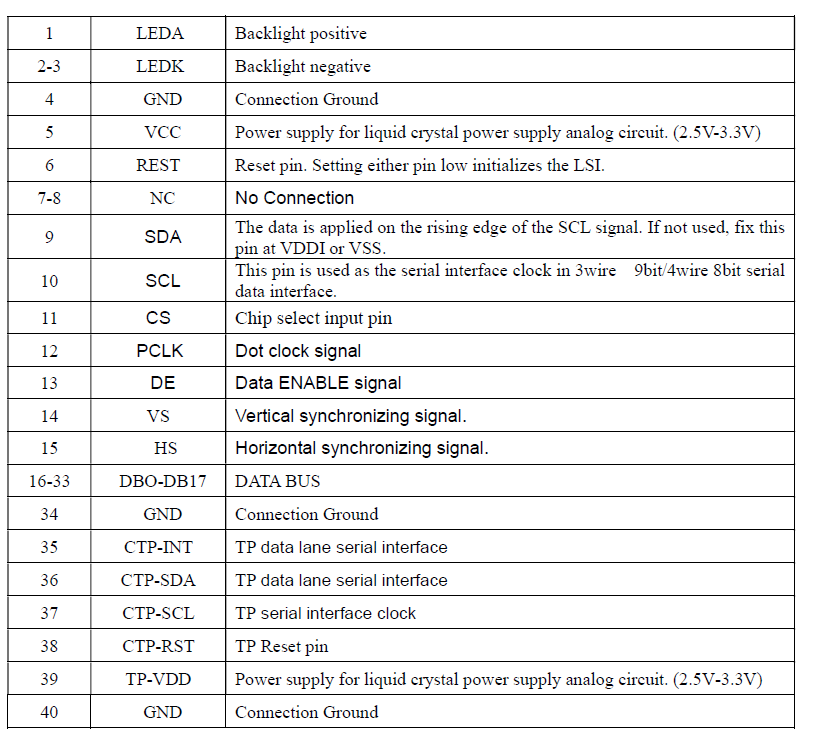

LCM Interface connection:

The LCM interface connection of am oled square panel

Product Display

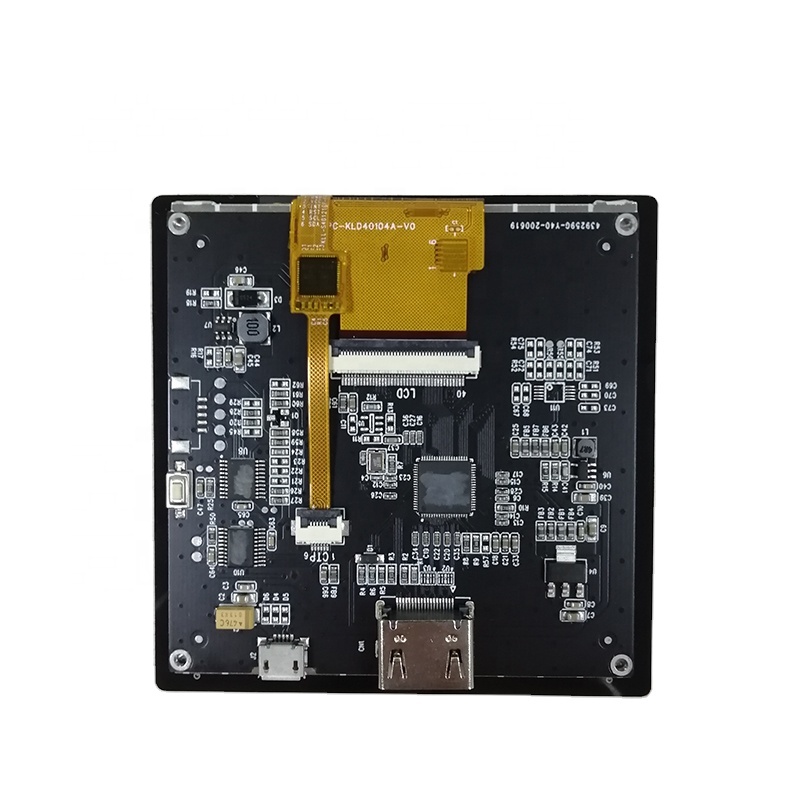

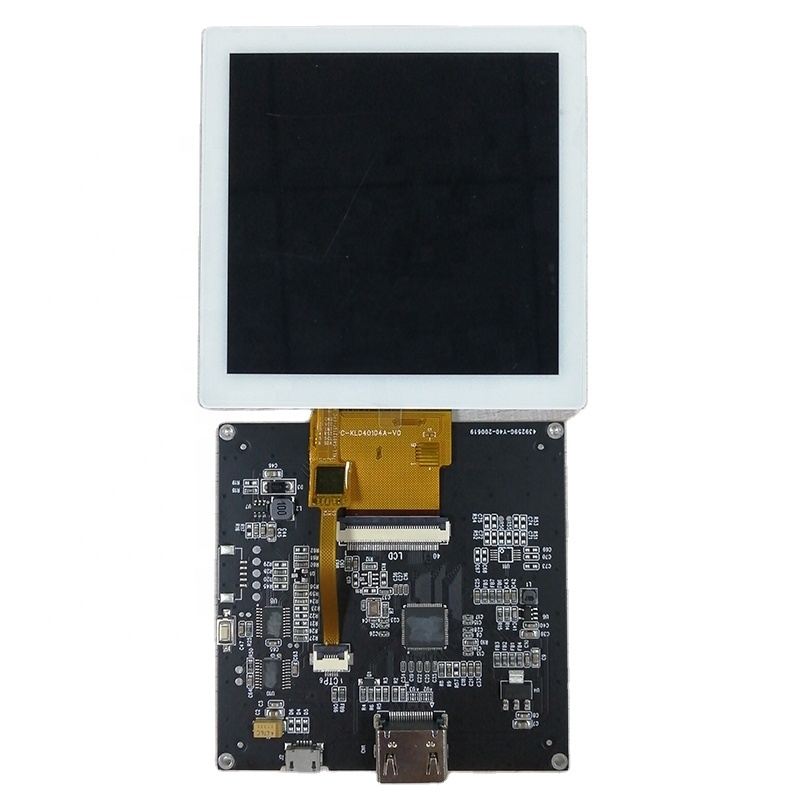

The pr below picture. The real shot front of am oled square panel and HDMI The real shot front view of am oled square panel HDMI

We can also supply "LCD display + CTP","LCD display + HDMI", and"LCD display only", refer to below picture. Please contact us for more details.

LCD display + CTP:

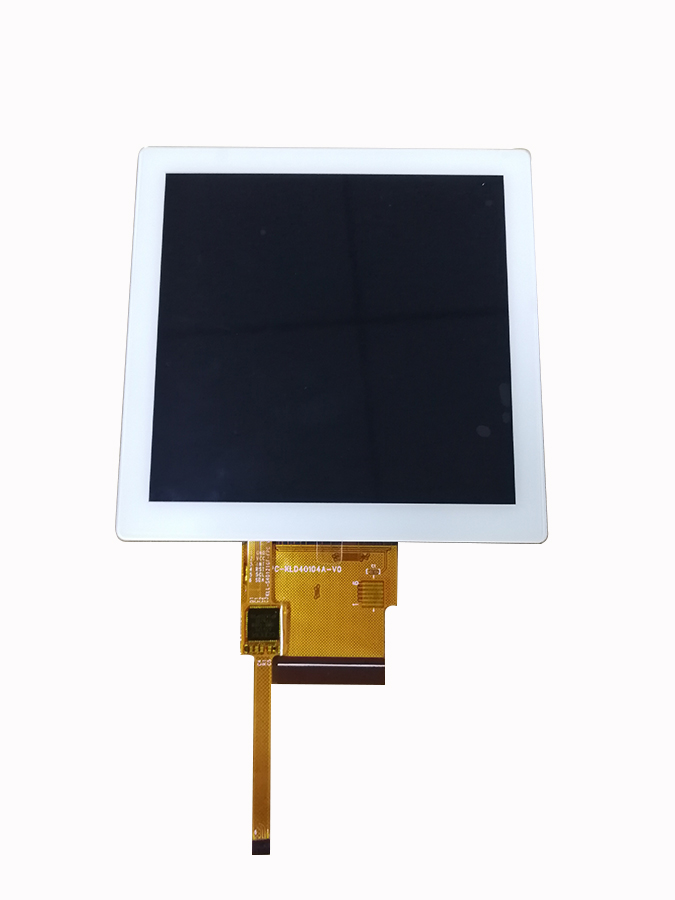

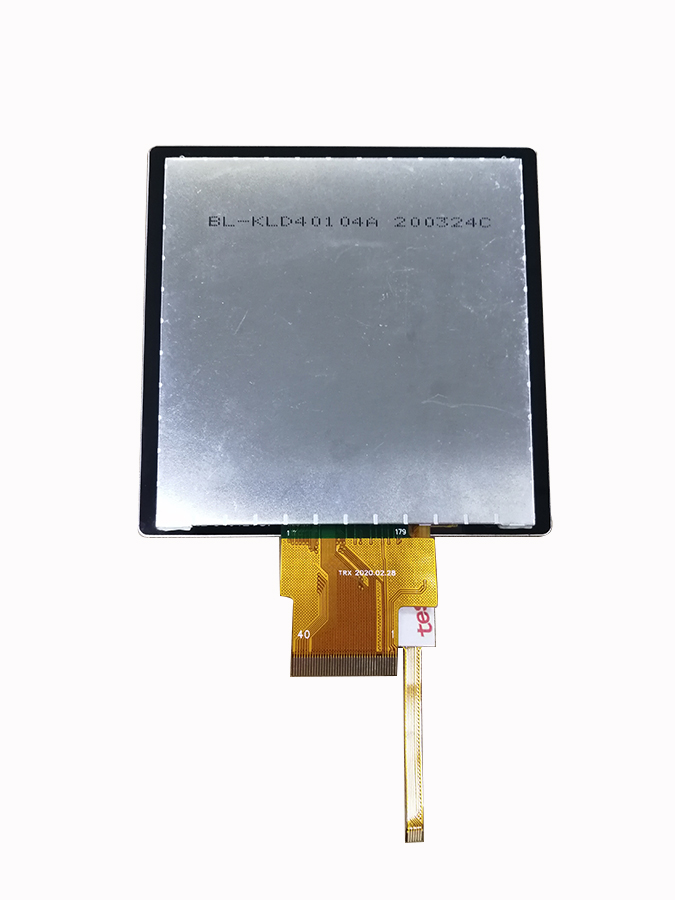

The real shot front view of am oled square panel with CTP The real shot back view of am oled square panel

LCD display only:

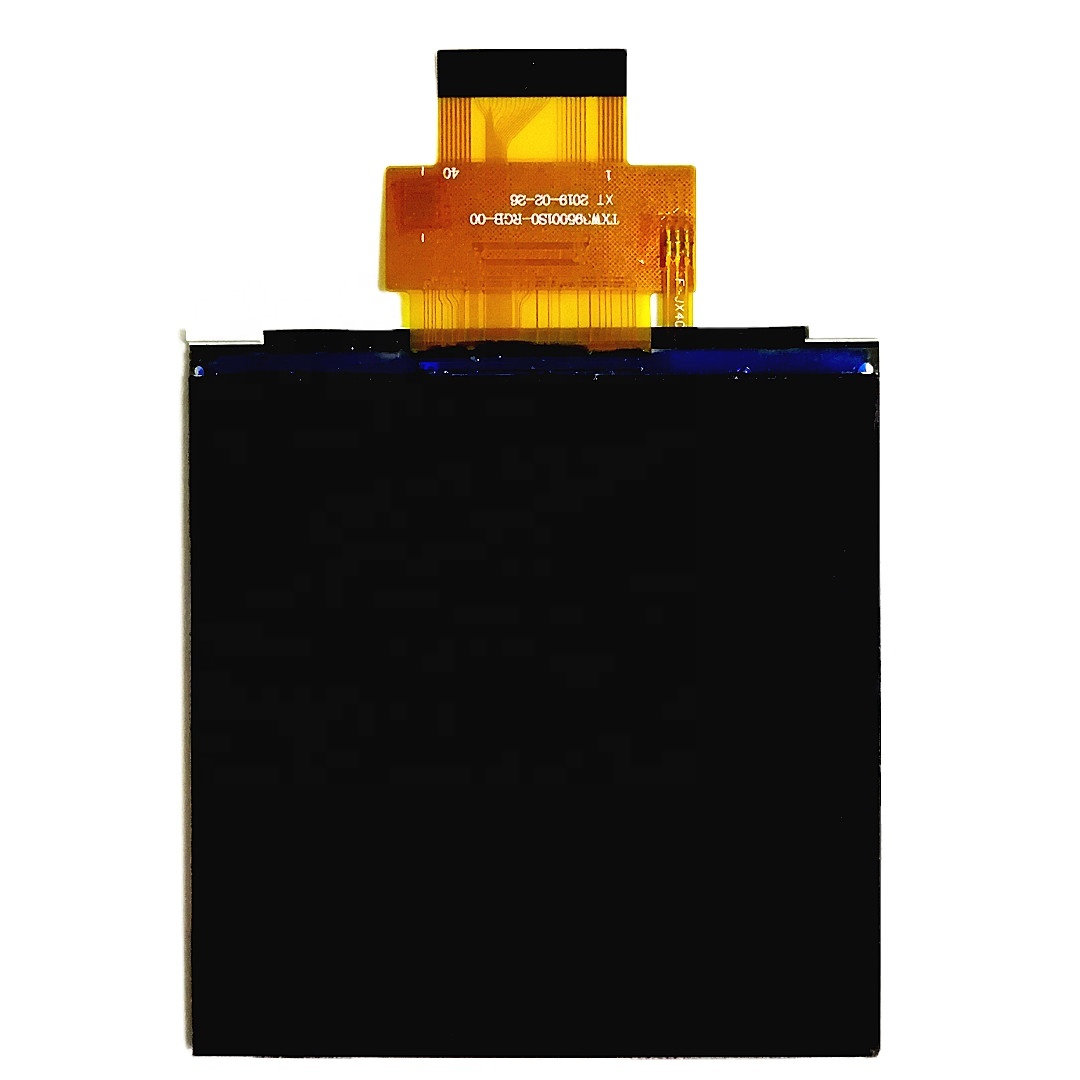

The real shot front view of am oled square panel without TP
