CTP 3.97 inch IPS 720x720 tft panel custom MIPI RGB interface display module 4 inch square lcd screen for Smart Home

• Type:IPS
• Display Size:4 inch
• Supplier Type:Original Manufacturer
• Place of Origin:Guangdong, China
• Brand Name:KLD
• Product name:LCD Dispaly Screen
• Resolution:720*RGB*720
• LCD type:IPS
• Active Area:71.93*71.93
• LCM Outline dimension:84.00*84.00*2.10
• View direction:ALL
• Brightness:250cd/m2
• Interface:MIPI
• Driver IC:ST7703
• CTP IC:GT917S

720*720 MIPI interface lcd display 4 inch square lcd screen for Smart Home





Product Description



Resolution	720*RGB*720
LCD type	IPS
Active Area	71.93*71.93
Outline dimension	84.00*84.00*3.18
View direction	ALL
Brightness	250cd/m2
Interface	MIPI
Driver IC	ST7703
CTP IC	GT1151
Storage Temp.	(-20℃,70℃)
Touch panel	Capacitive touch panel





The KLD40108BWIA is a 4 inch 720x720 square IPS mode LCD module.
Features:
- Interface:



MIPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)



- BLU:



5*2 LED (5*LED in series and 2 groups in parallel) IBL=40mA, VBL=16V;
Can be designed as requirements.




- Touch Panel
Multi touch capacitive touch panel.

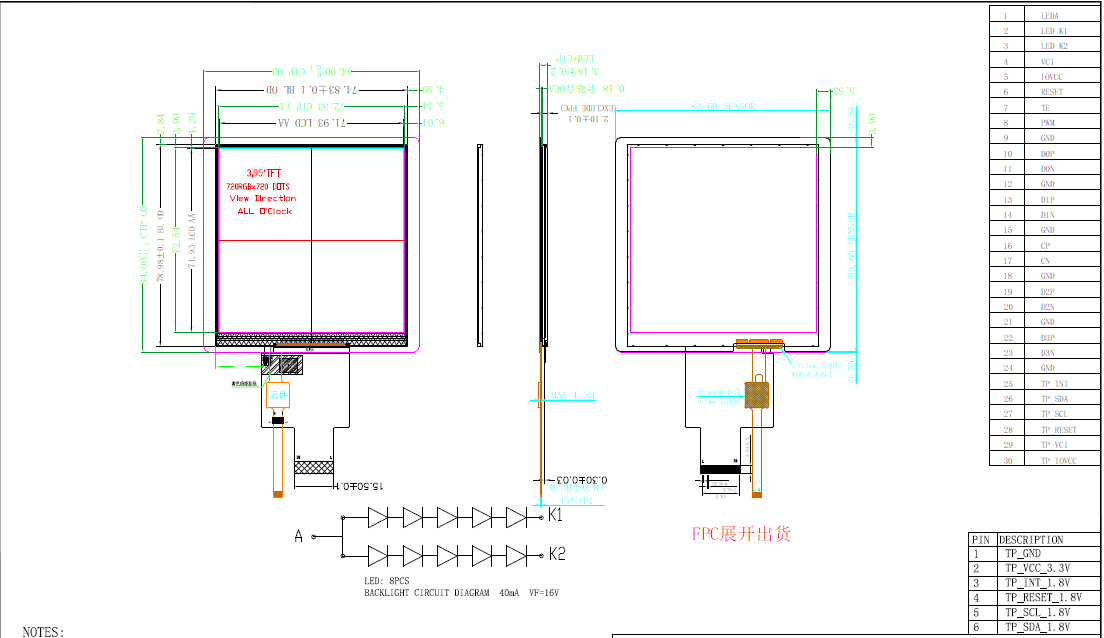

Drawing:

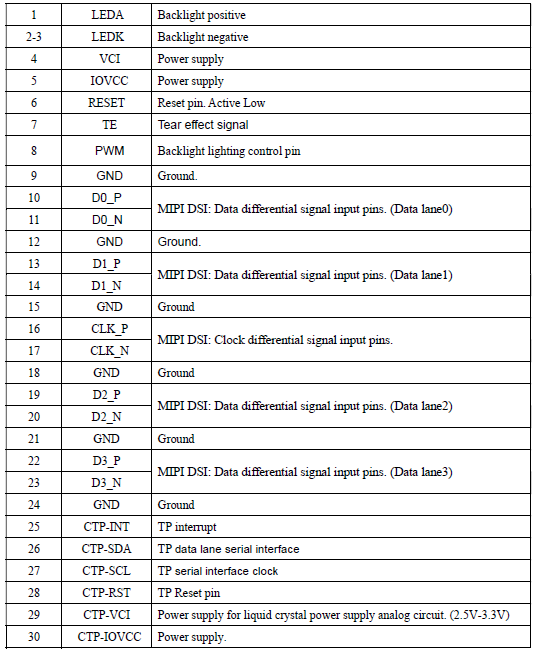

Interface connection:

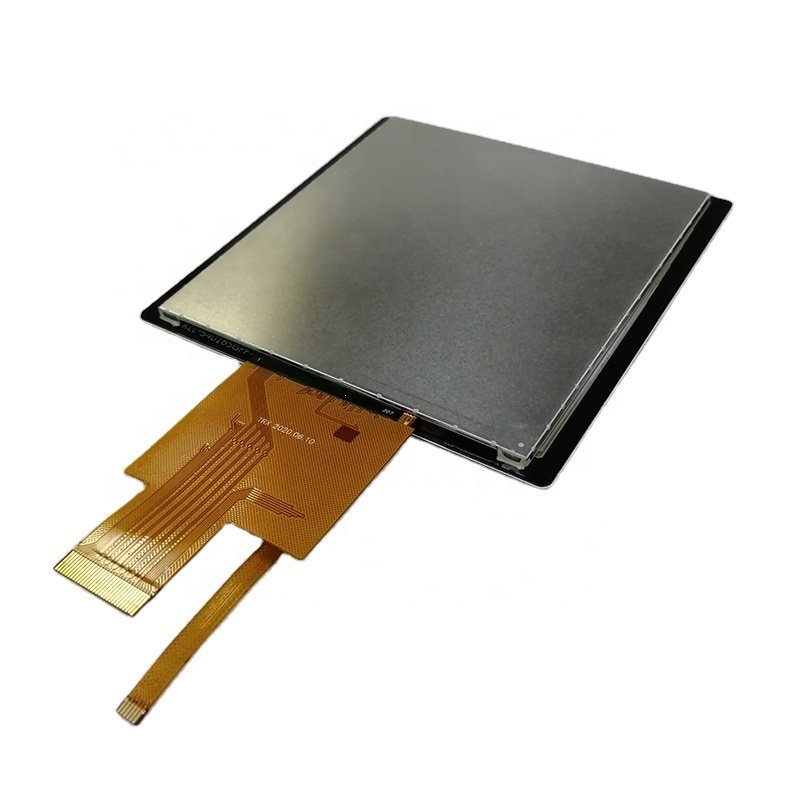

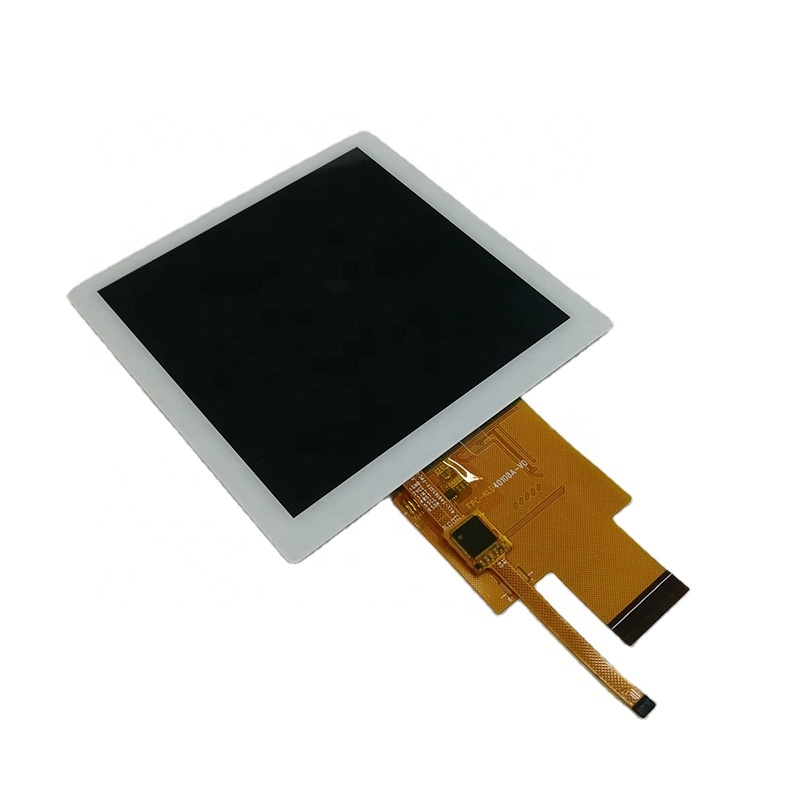

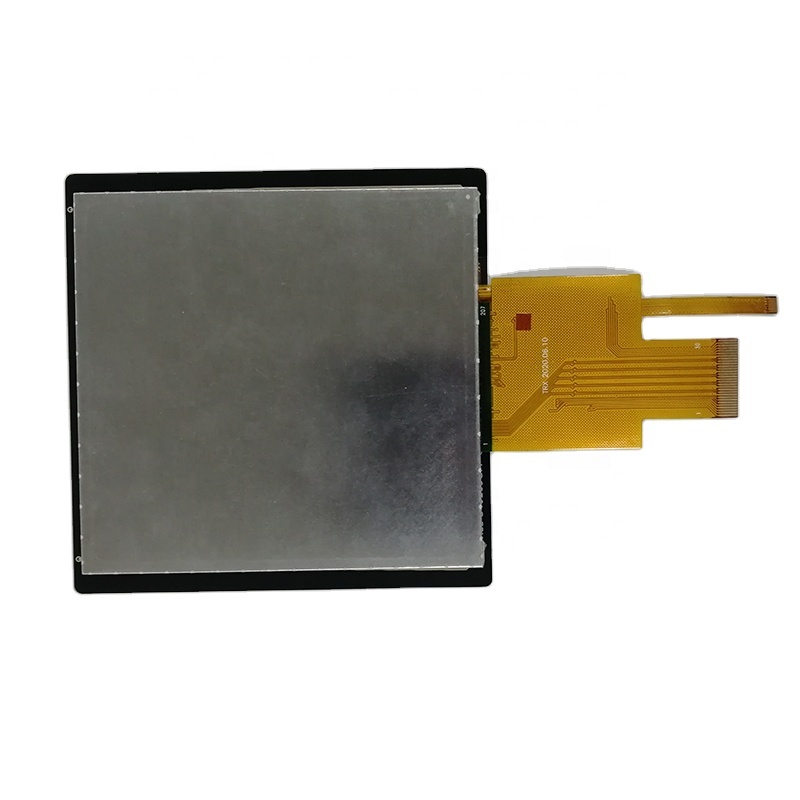

Product Display
