3.5 inch hvga 320x480 IPS tft lcd panel touch screen diy display module for car black box

KLD35126GHTA

minimum order

1 piece

Country of Origin

HongKong/Shenzhen

Quantity:

$3.60 - $5.90 / piece

Contact Now

add to cart

320*480 MCU interface TFT LCD display 3.5 inch HVGA IPS LCD screen for industrial

Product Description

Resolution	320RGB480
LCD type	IPS
Active Area	48.96(H)*73.44(V)
Outline dimension	55.00(H)84.71(V)2.25(T)
View direction	ALL
Brightness	250cd/m2
Interface	MCU/SPI+RGB
Driver IC	ILI9488
Storage Temp	(-30℃,80℃)
Touch panel	Additiona option(support RTP and CTP)

The KLD35126GHTA is a 3.5 inch 320x480 portrait IPS mode LCD module.
Features:
- Interface:

MCU8bit/ MCU16bit/ SPI+RGB16bit
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)

- BLU:

6*LED in series, IBL=20mA, VBL=19.2V;
Can be designed as requirements.

- LCM outline dimension:

55.00(H)*84.71(V)*2.25(T)(mm)
Can be customized as requirements.

- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

We also have several other MP products with similar configurations,

butwith different ◊interface◊pin map ◊FPC shape ◊outline dimension ◊brightness◊touch panel etc.

Please contact us to provide datasheet for your checking.

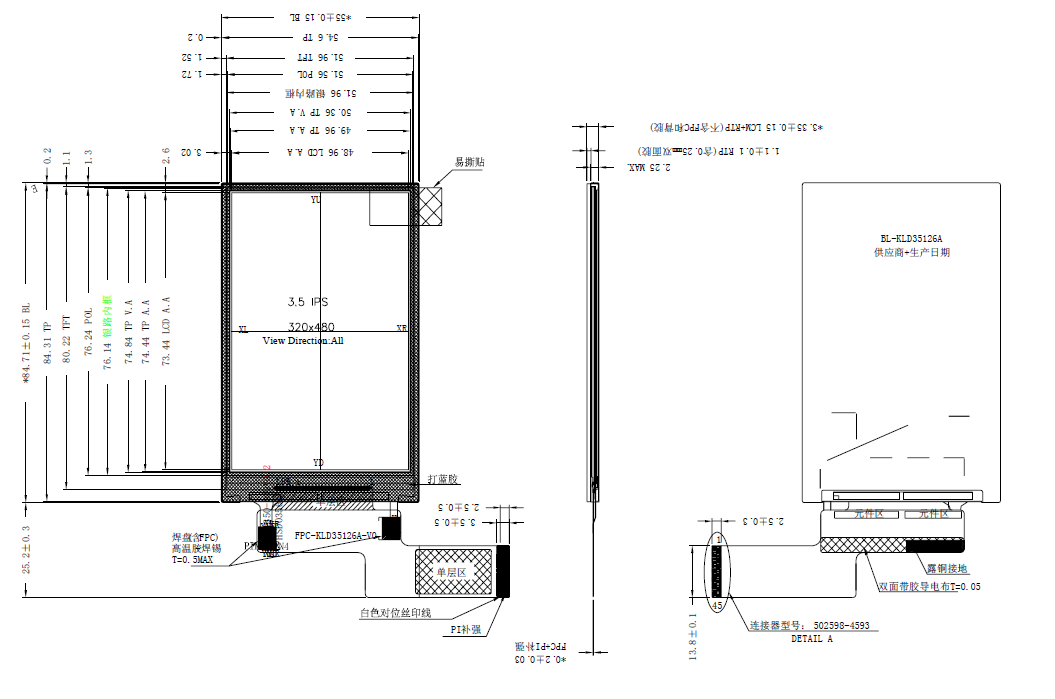

Drawing (RTP is optional):

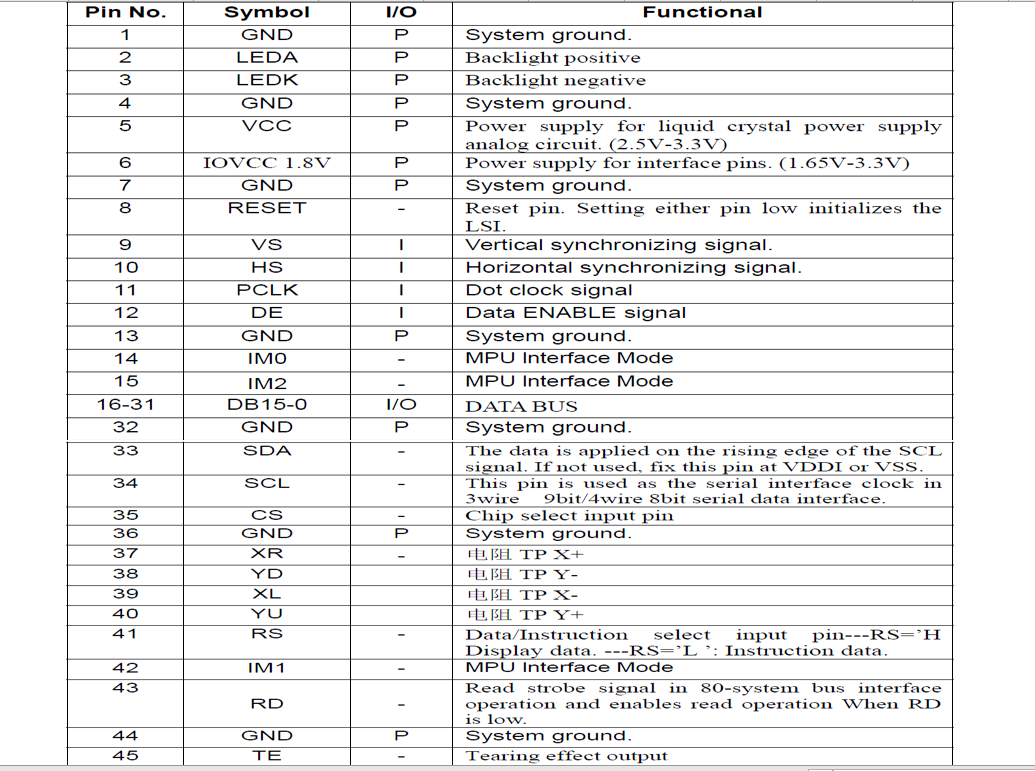

Interface connection:

Product Display

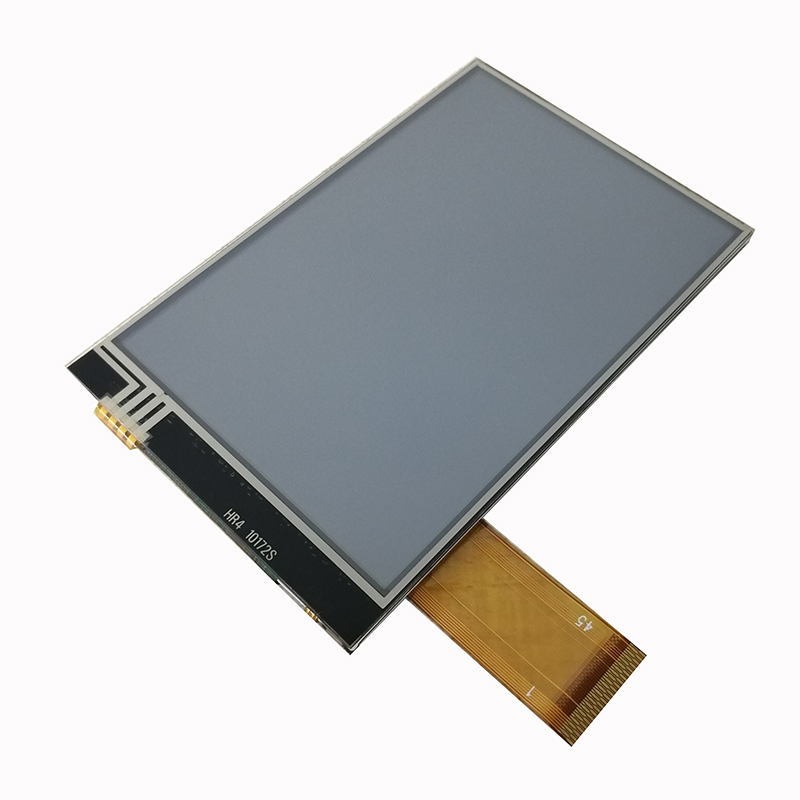

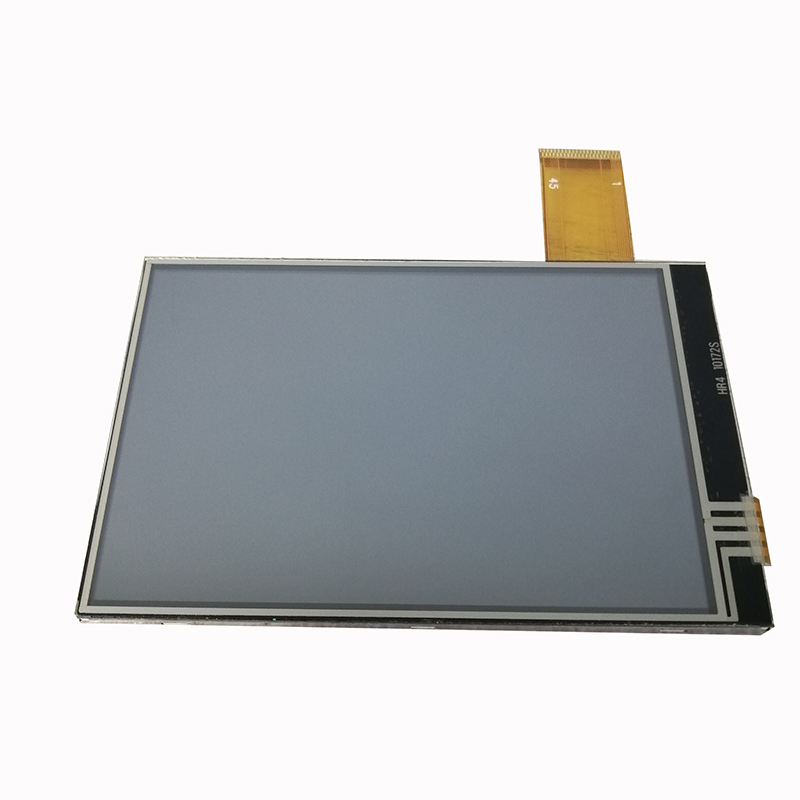

Real shot front view of 3.5 inch with RTP Real shot side view of 3.5 inch with RTP

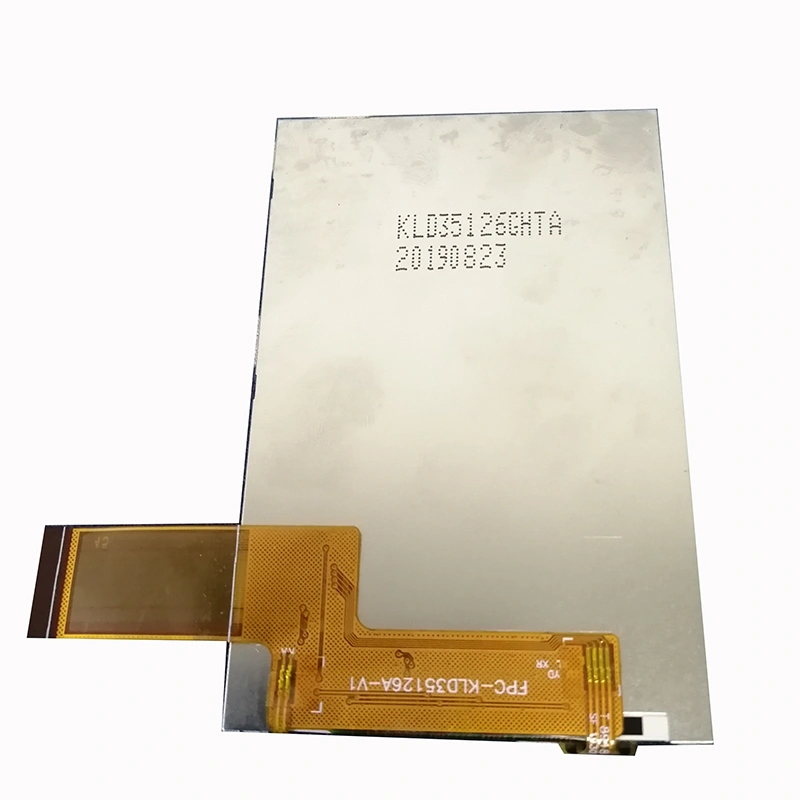

Real shot back view of 3.5 inch with RTP
