OEM ODM 5 inch HD 720*1280 IPS tft lcd panel touch screen diy display module
KLD50252HHIA
minimum order
1 piece
Country of Origin
Shenzhen/Hongkong
Quantity:
$7.30 - $8.90 / piece
- Type:TFT
- Display Size:5 inch
- Place of Origin:Guangdong, China
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:720*RGB*1280
- LCD type:IPS
- Active Area:62.1(H)*110.4(V)
- Outline dimension:64.7(H)*118.7(V)*1.55(T)
- View direction:ALL
- Brightness:400cd/m2
- Interface:MIPI
- Driver IC:NT35523
- Storage Temp.:(-30℃,80℃)
CTP 720*1280 MIPI interface lcd display 5inch HD lcd screen for industrial
Product Description
| Resolution | 720*RGB*1280 |
| LCD type | IPS |
| Active Area | 62.1(H)*110.4(V) |
| Outline dimension | 64.7(H)*118.7(V)*1.55(T) |
| View direction | ALL |
| Brightness | 400cd/m2 |
| Interface | MIPI |
| Driver IC | NT35523 |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The KLD50166XHMA is a 5inch 720X1280 portrait IPS mode LCD module.
Features:
- Interface: MIPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
- BLU: 6*2 LED (6*LED in series and 2 groups in parallel), IBL=40mA, VBL=19.2V;
Can be designed as requirements.
- LCM outline dimension: 64.7(H)*118.7 (V)*1.55(T)(mm)
Can be customized as requirements.
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements.

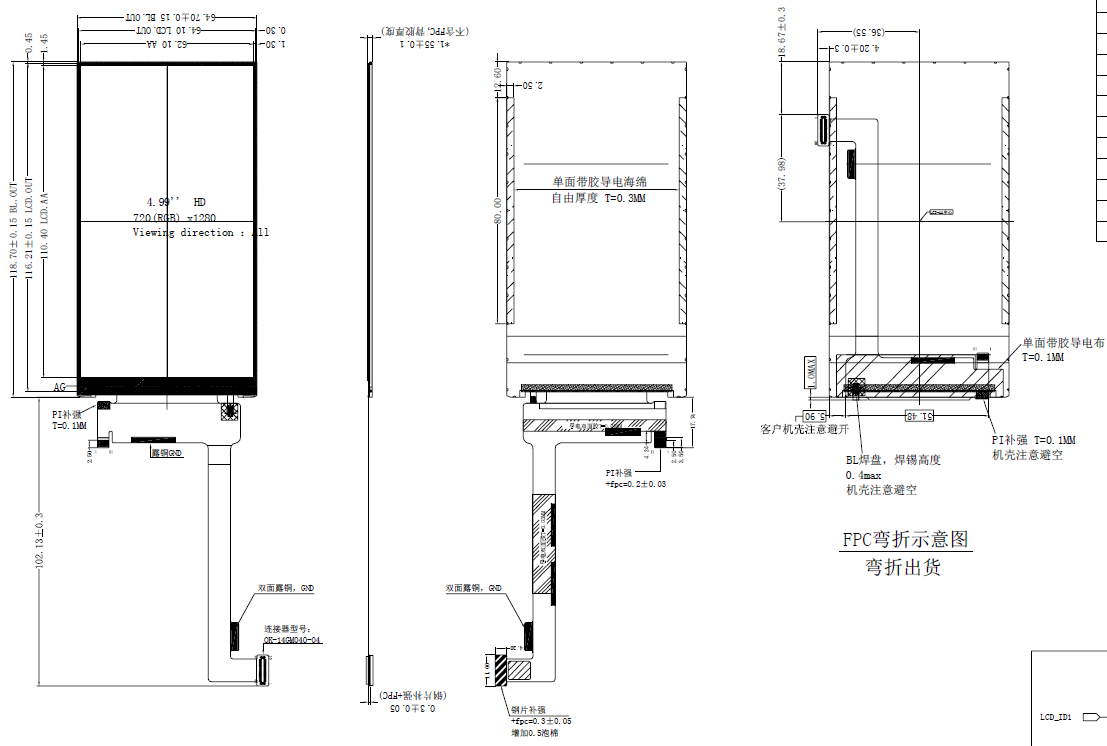

Drawing:

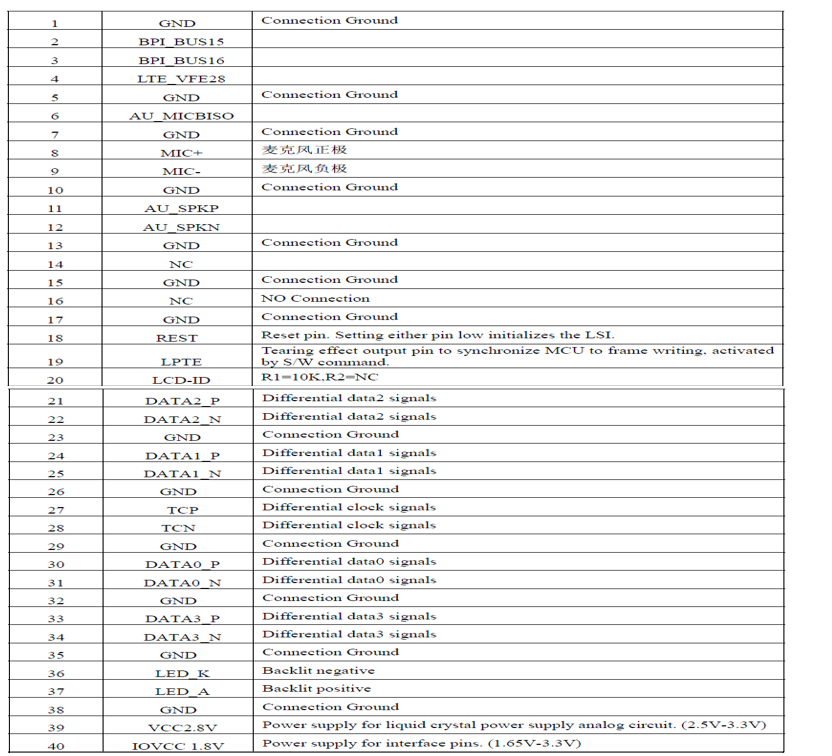

Interface connection:

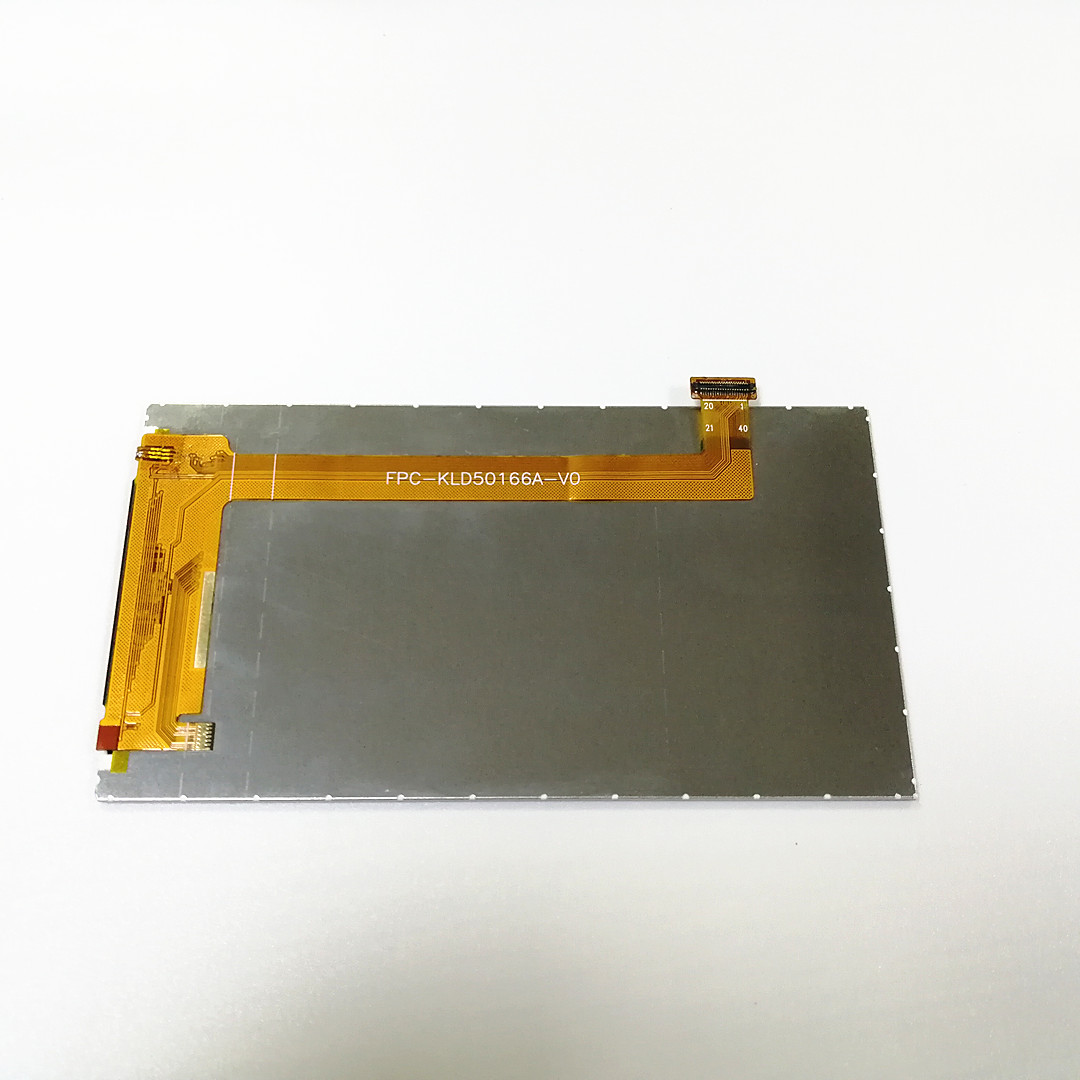

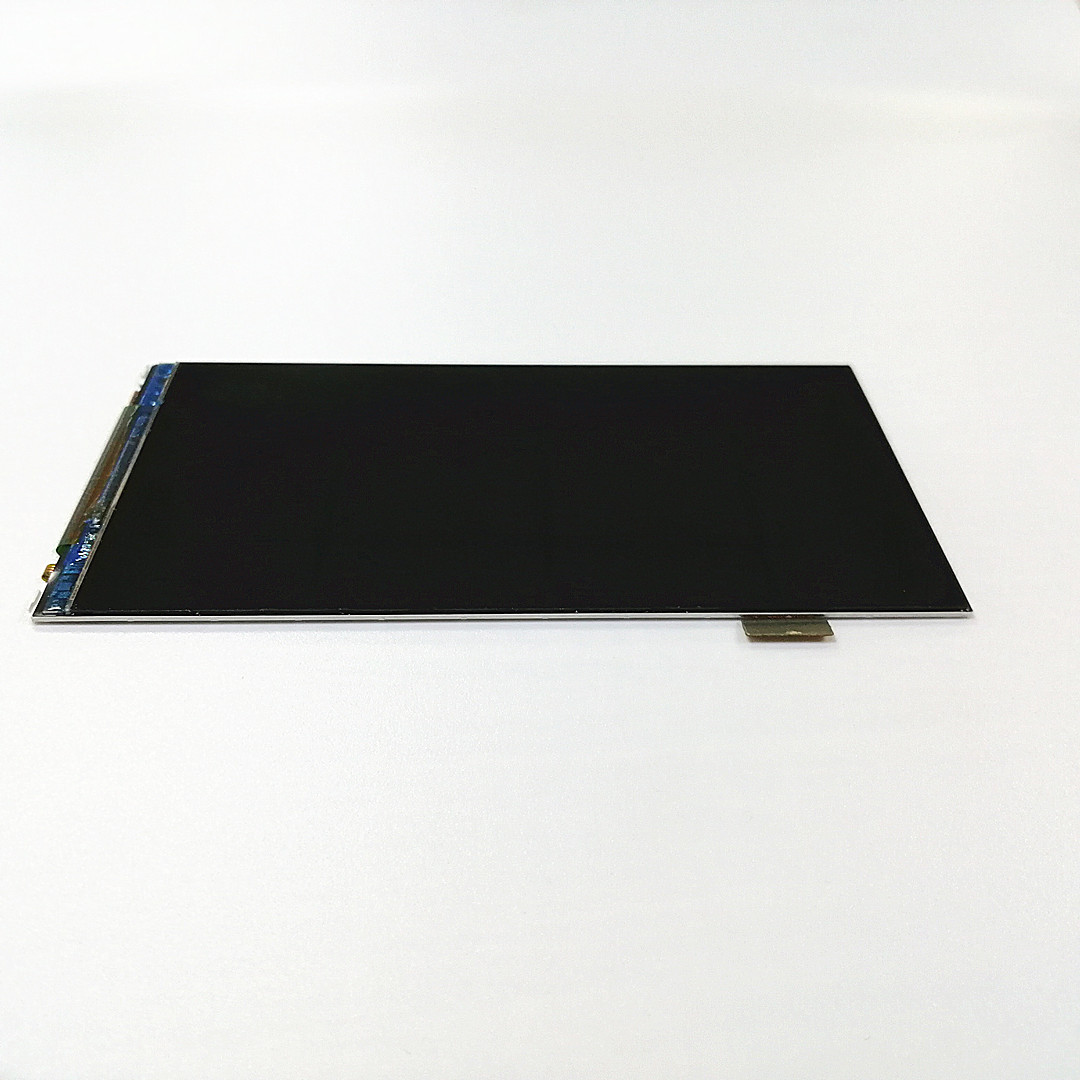

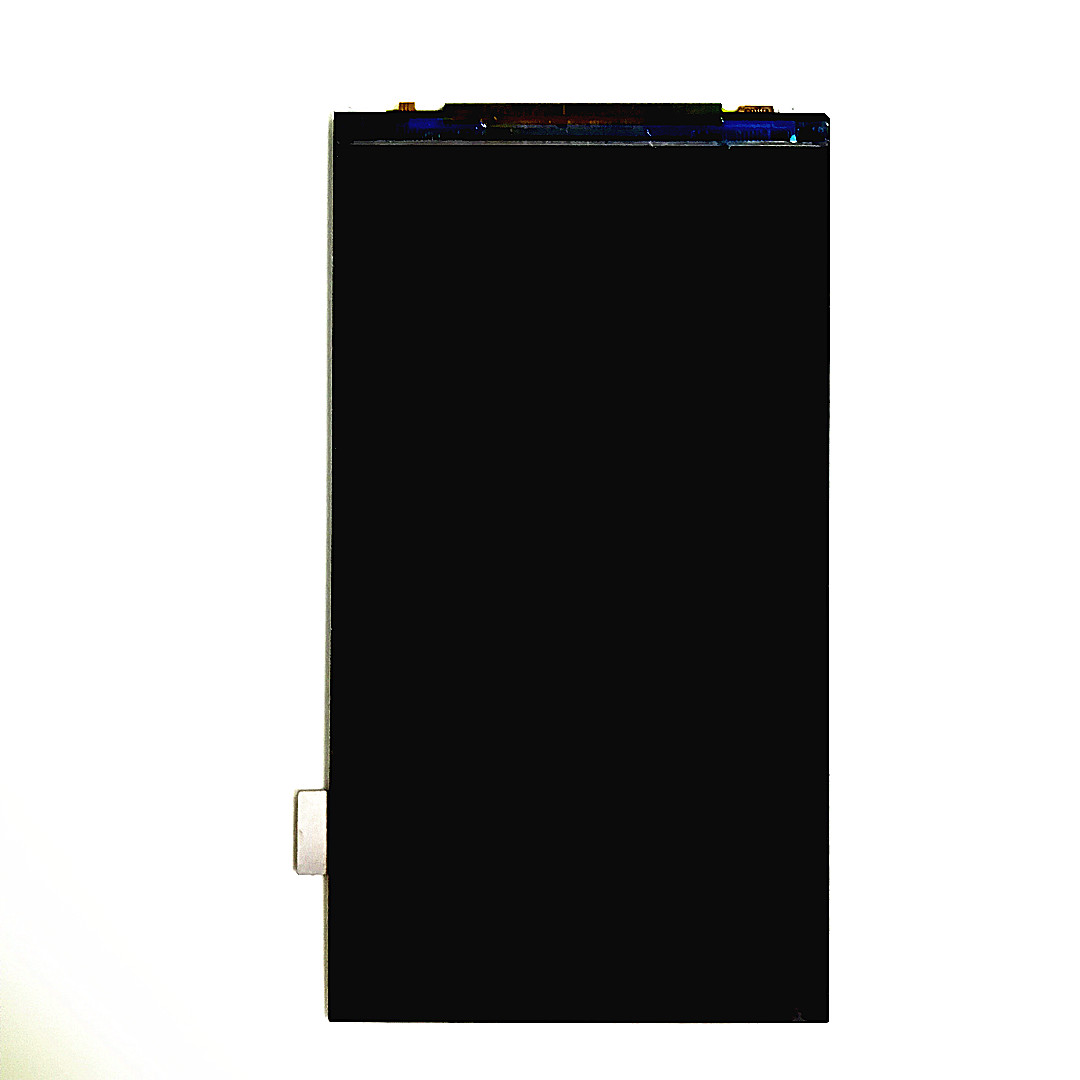

Product Display
