CTP 720*1280 MIPI interface lcd display 5 inch HD lcd screen for industrial
KLD50166XHMA
minimum order
1 piece
Country of Origin
Shenzhen/Hongkong
Quantity:
$7.30 - $8.40 / piece
- Display Size:5 inch
- Place of Origin:Guangdong, China
- Model Number:KLD50166XHMA
- Brand Name:KLD
- Product name:LCD Dispaly Screen
- Resolution:720*RGB*1280
- LCD type:IPS
- Active Area:62.1(H)*110.4(V)
- Outline dimension:64.7(H)*118.7(V)*1.55(T)
- View direction:ALL
- Brightness:400cd/m2
- Interface:MIPI
- Driver IC:NT35523
- Storage Temp.:(-30℃,80℃)
CTP 720*1280 MIPI interface lcd display 5inch HD lcd screen for industrial
Product Description
| Resolution | 720*RGB*1280 |
| LCD type | IPS |
| Active Area | 62.1(H)*110.4(V) |
| Outline dimension | 64.7(H)*118.7(V)*1.55(T) |
| View direction | ALL |
| Brightness | 400cd/m2 |
| Interface | MIPI |
| Driver IC | NT35523 |
| Storage Temp | (-30℃,80℃) |
| Touch panel | Additiona option(support RTP and CTP) |
The KLD50166XHMA is a 5inch 720X1280 portrait IPS mode LCD module.
Features:
- Interface: MIPI
Can de designed as customer’s requirements.
(Including FPC shape and size can be customized)
- BLU: 6*2 LED (6*LED in series and 2 groups in parallel), IBL=40mA, VBL=19.2V;
Can be designed as requirements.
- LCM outline dimension: 64.7(H)*118.7 (V)*1.55(T)(mm)
Can be customized as requirements.
- Touch Panel
Resistive touch panel and capacitive touch panel can be optional.
Touch panel can be customized as requirements

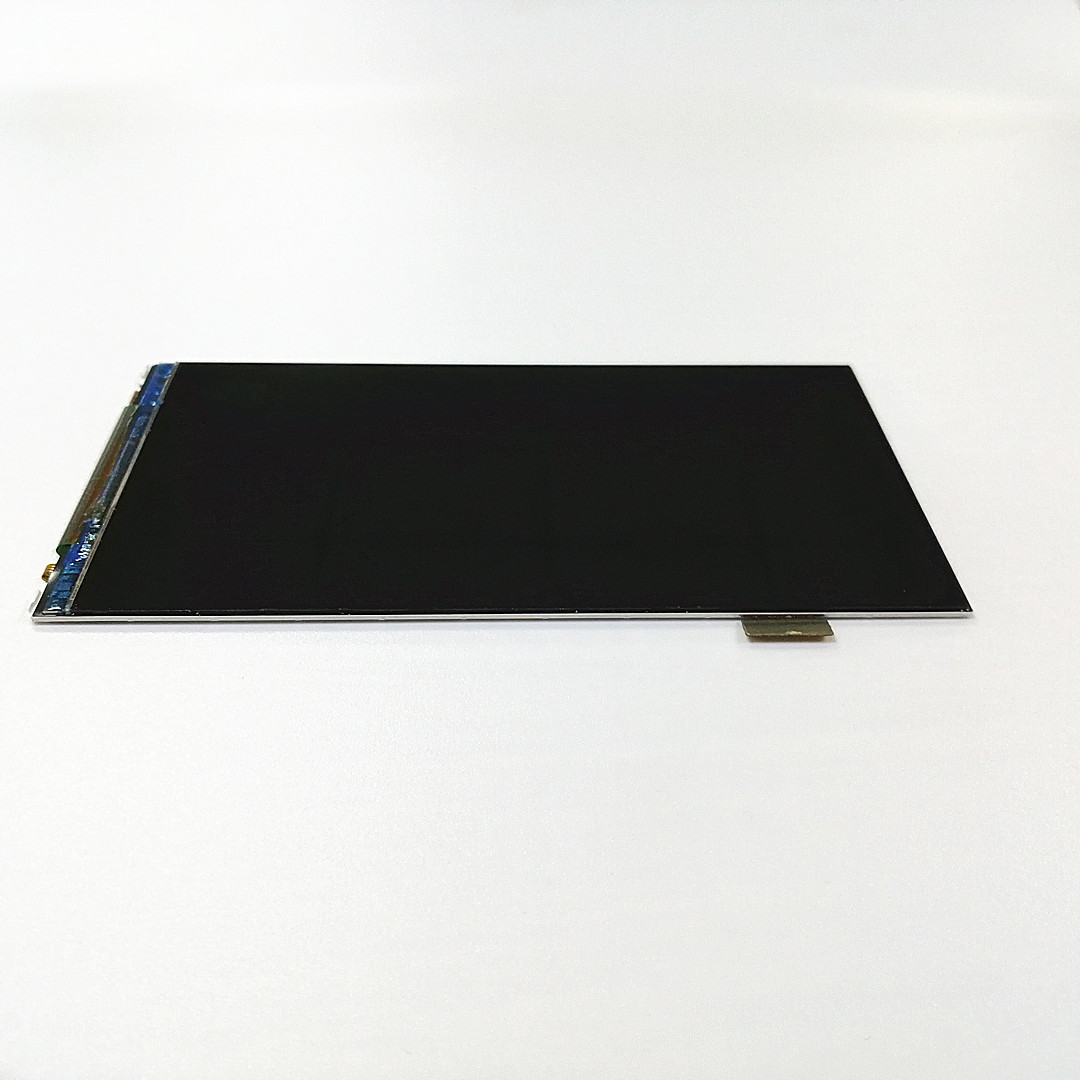

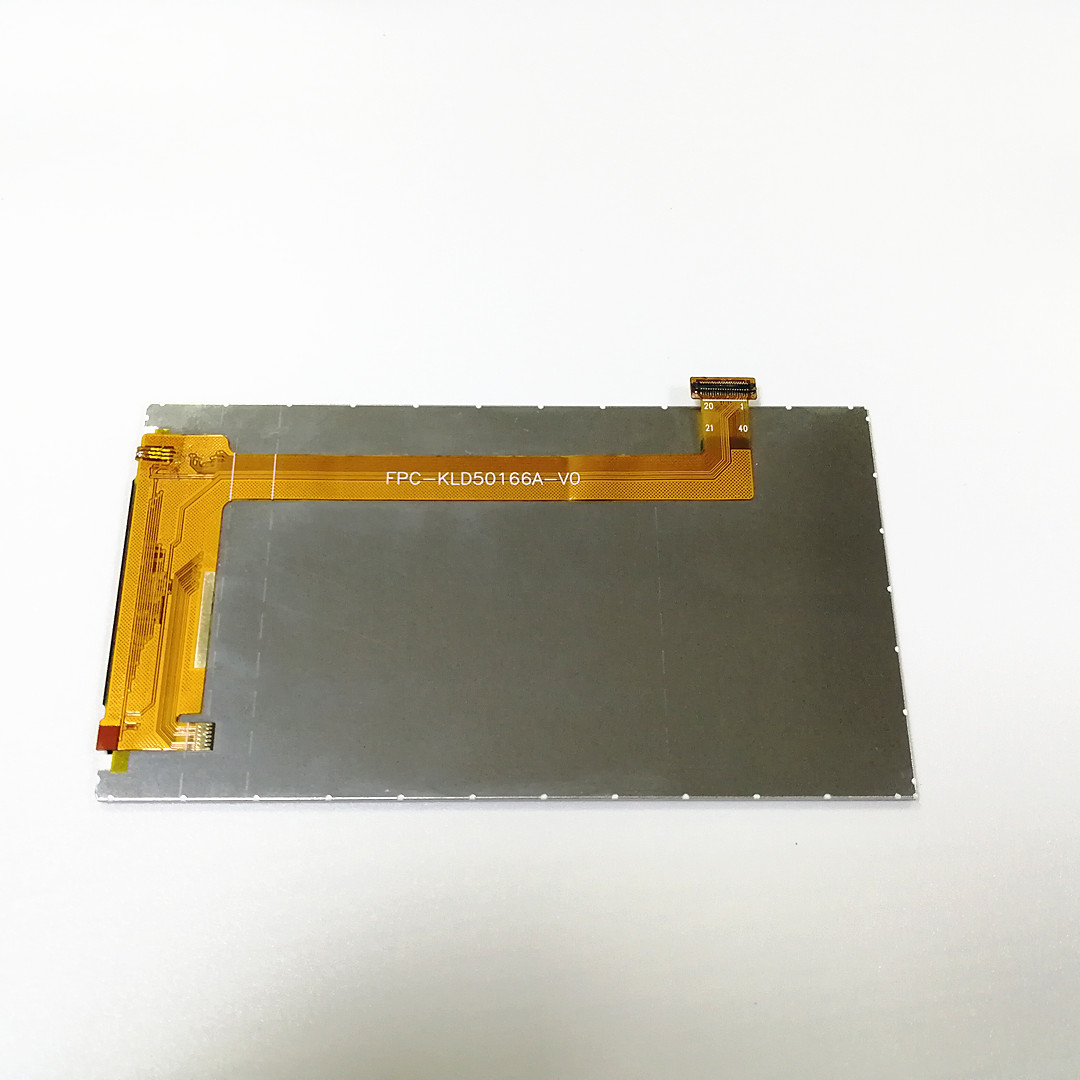

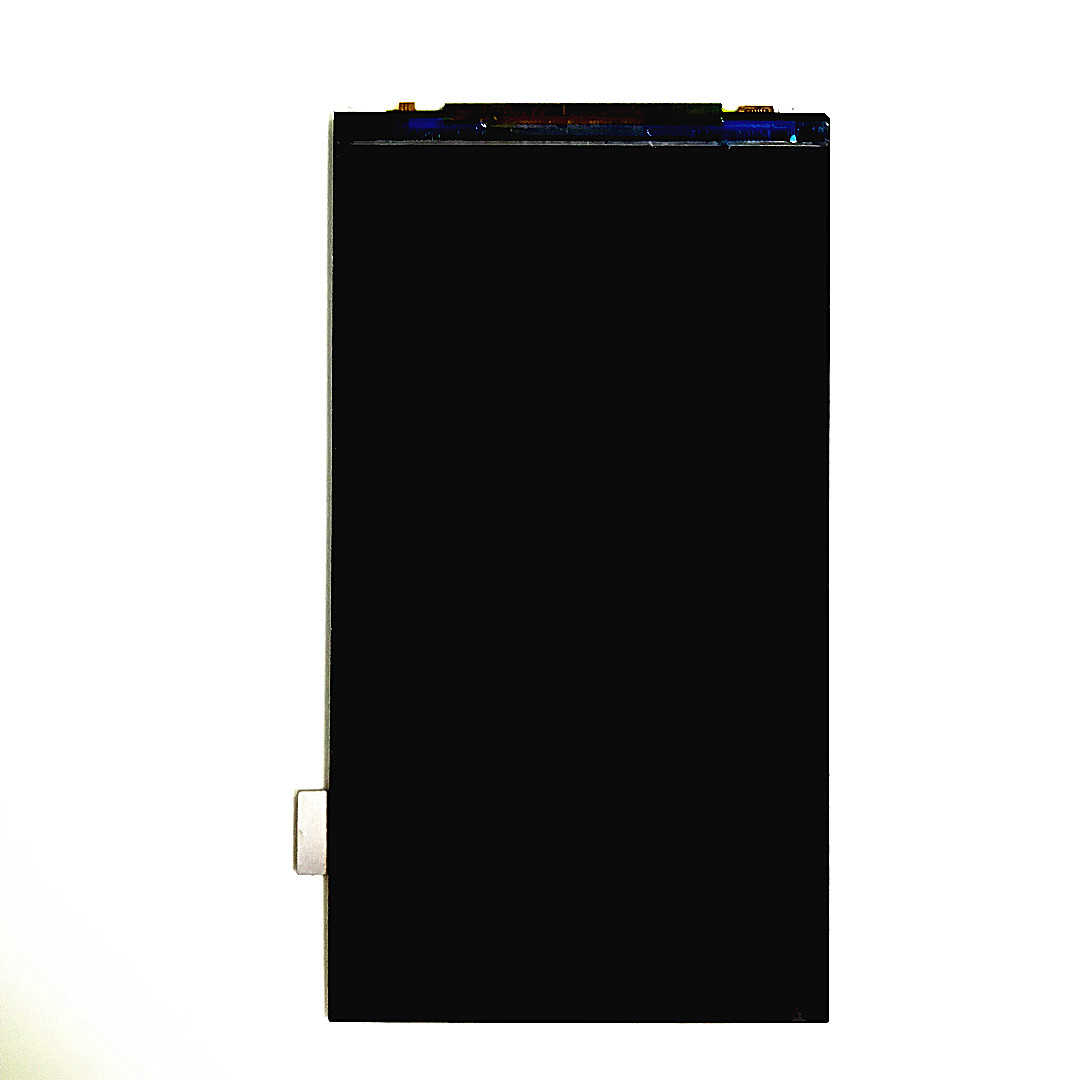

Product Display

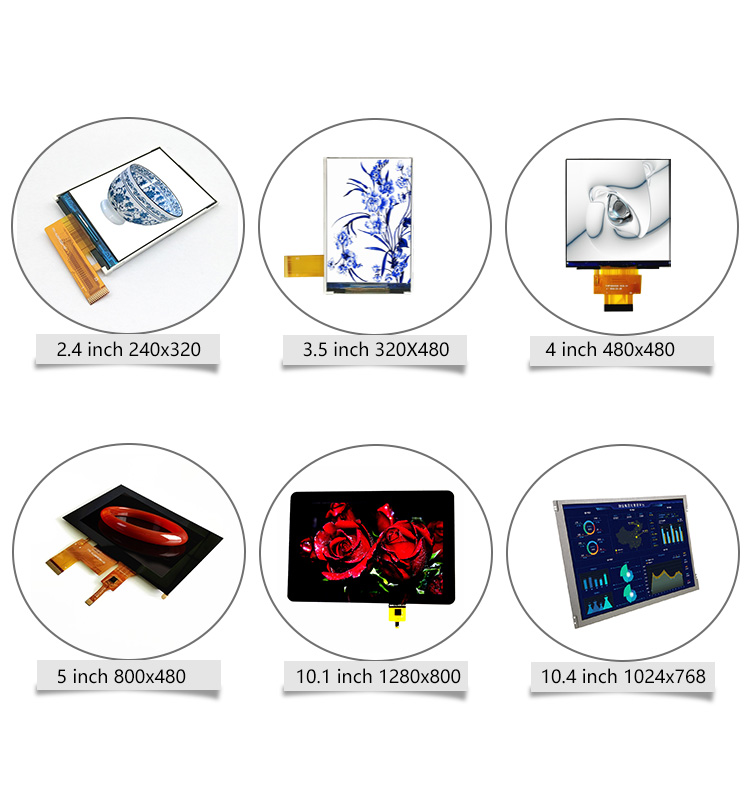

Related Products
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) | Interface | View direction |
| 2.31 | KLD231000 | 320*240 | 50.80*45.80*2.46 | MCU/SPI | 12 O'Clock |
| 2.4 | KLD24229GNTA | 240*320 | 42.72*60.26*2.25 | MCU | 12 O'Clock |
| 2.4 | KLD24220GNTA | 240*320 | 42.72*60.26*2.25 | SPI+RGB/MCU | ALL |
| 2.8 | KLD2843GNTA | 240*320 | 50.00*69.20*2.40 | MCU | ALL |
| 2.8 | KLD2844CNTB | 240*320 | 50.00*69.20*2.40 | MCU | 12 O'Clock |
| 3.5 | KLD35119CNTA | 320*480 | 54.66*82.94*2.20 | MIPI | 12 O'Clock |
| 3.5 | KLD35511CHIA | 320*480 | 55.00*84.71*2.25 | MCU/SPI | ALL |
| 3.5 | KLD35130BNTA | 480*800 | 51.32*86.61*2.20 | SPI+RGB | ALL |
| 4 | KLD4076GNTA | 480*800 | 57.14*96.85*2.20 | MIPI | 12 O'Clock |
| 4.3 | KLD4311HNTA | 480*272 | 105.50*67.20*2.95 | RGB | ALL |
| 4.5 | KLD4524IFMA | 480*854 | 60.00*109.00*1.85 | MIPI | ALL |
| 5 | KLD50166XHMA | 720*1280 | 64.70*118.70*1.55 | MIPI | ALL |
| 5 | KLD50505HWIA | 800*480 | 120.70*75.80*2.95 | RGB | ALL |
| 5 | KLD50182IFIA | 480*854 | 62.56*119.30*2.05 | RGB | ALL |
| 5.5 | KLD5558HFMC | 1080*1920 | 71.00*129.56*1.50 | MIPI | ALL |
| Square LCD series | |||||
| Industrial LCD series | |||||
